Single Touch Sensor Switch

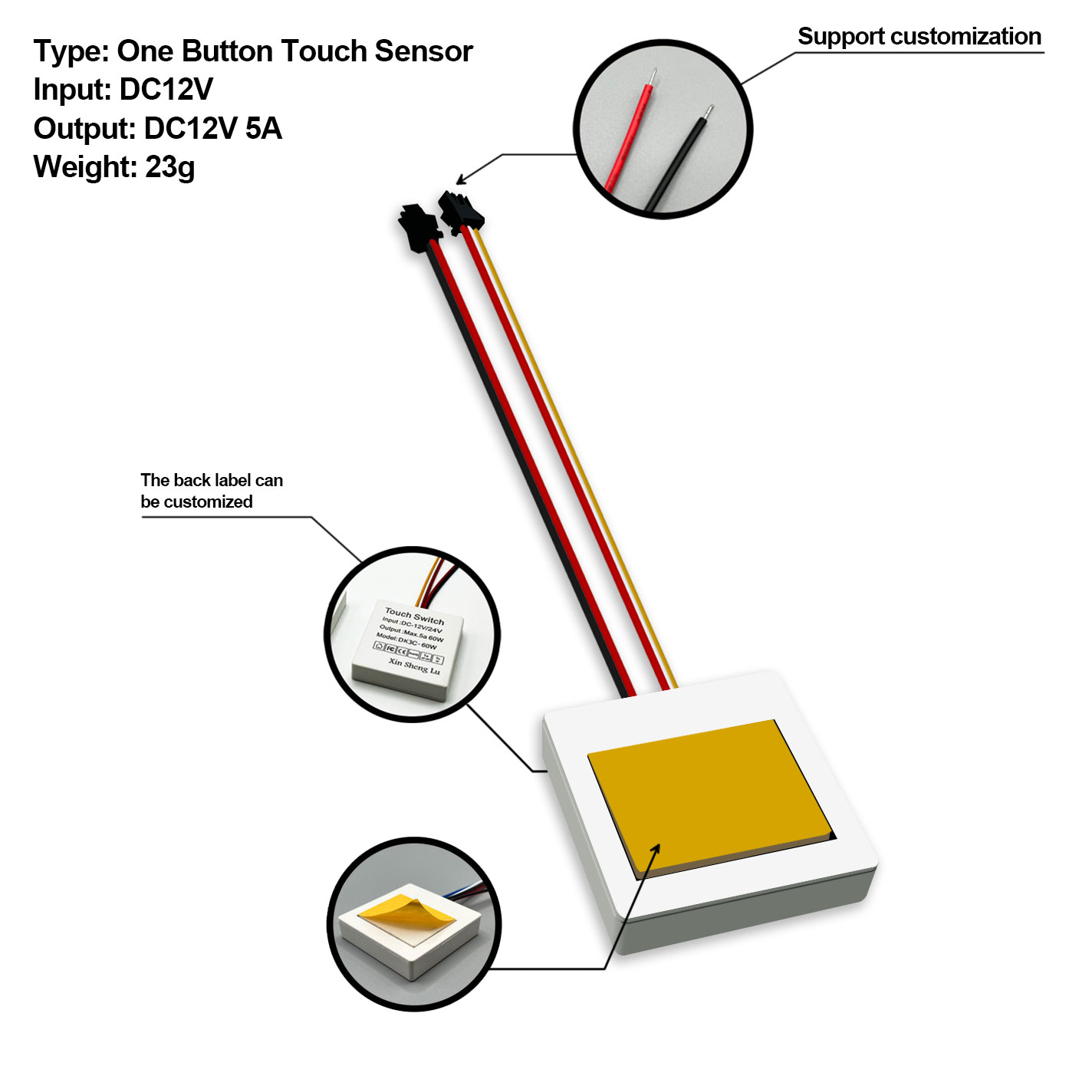

| Usage | Mirror Touch Switch |
| Intput: | DC12V-24V |
| Output： | DC12V5A |
| Size(moudle): | 4.2cm*4.2cm |
| Weight(moudle) | 13g |
| Size(Shell) | 5.2cm*5.2cm*1cm |
| Weight(Shell) | 10g |
| Certification | CE/ROSH/UL/FCC |
| Support mirror thickness | 1-6mm Glass Acrylic/Mirror... |
| Indicator light | White(OFF)/Blue(ON)[Customized] |
Customized Accept
Product Name:

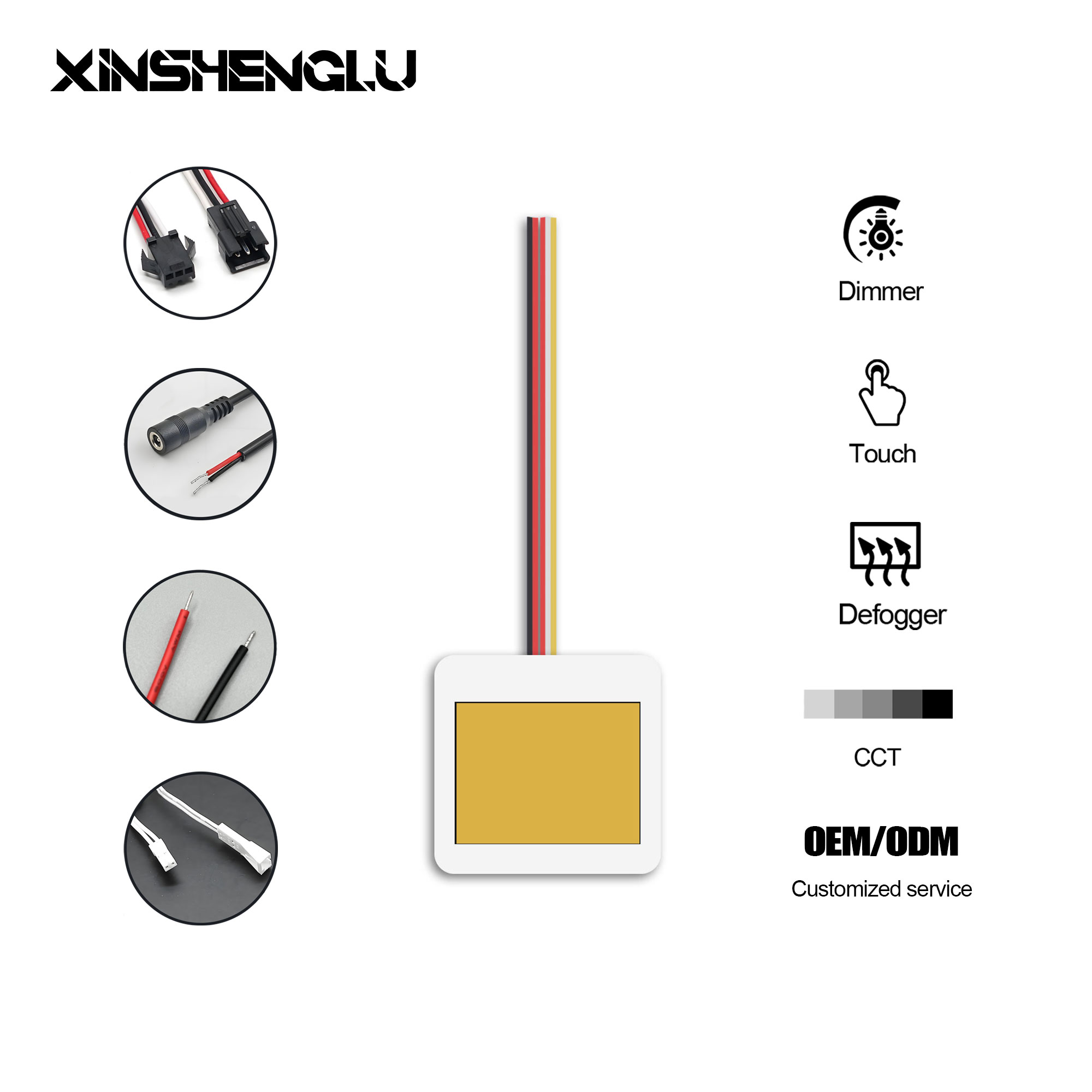

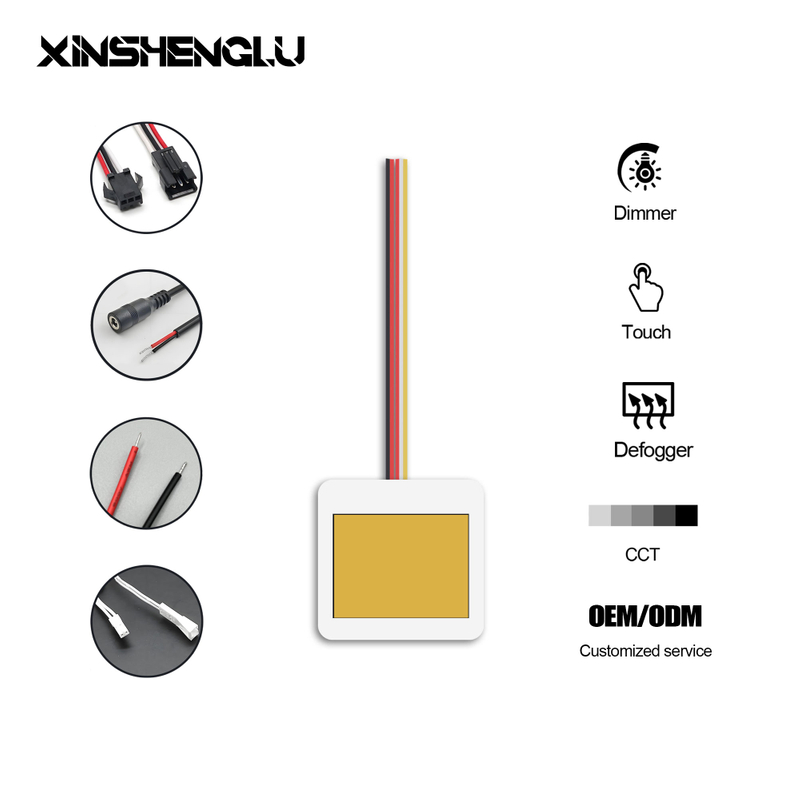

Multifunctional Mirror Touch Switch Module with Stepless Dimming & CCT Switching
Product Description:
This compact and versatile touch sensor module is designed for LED mirror applications, integrating stepless dimming, color temperature switching, and defogger control into a single touch interface. Ideal for smart bathroom mirrors, vanity mirrors, and LED furniture lighting.
Key Features:

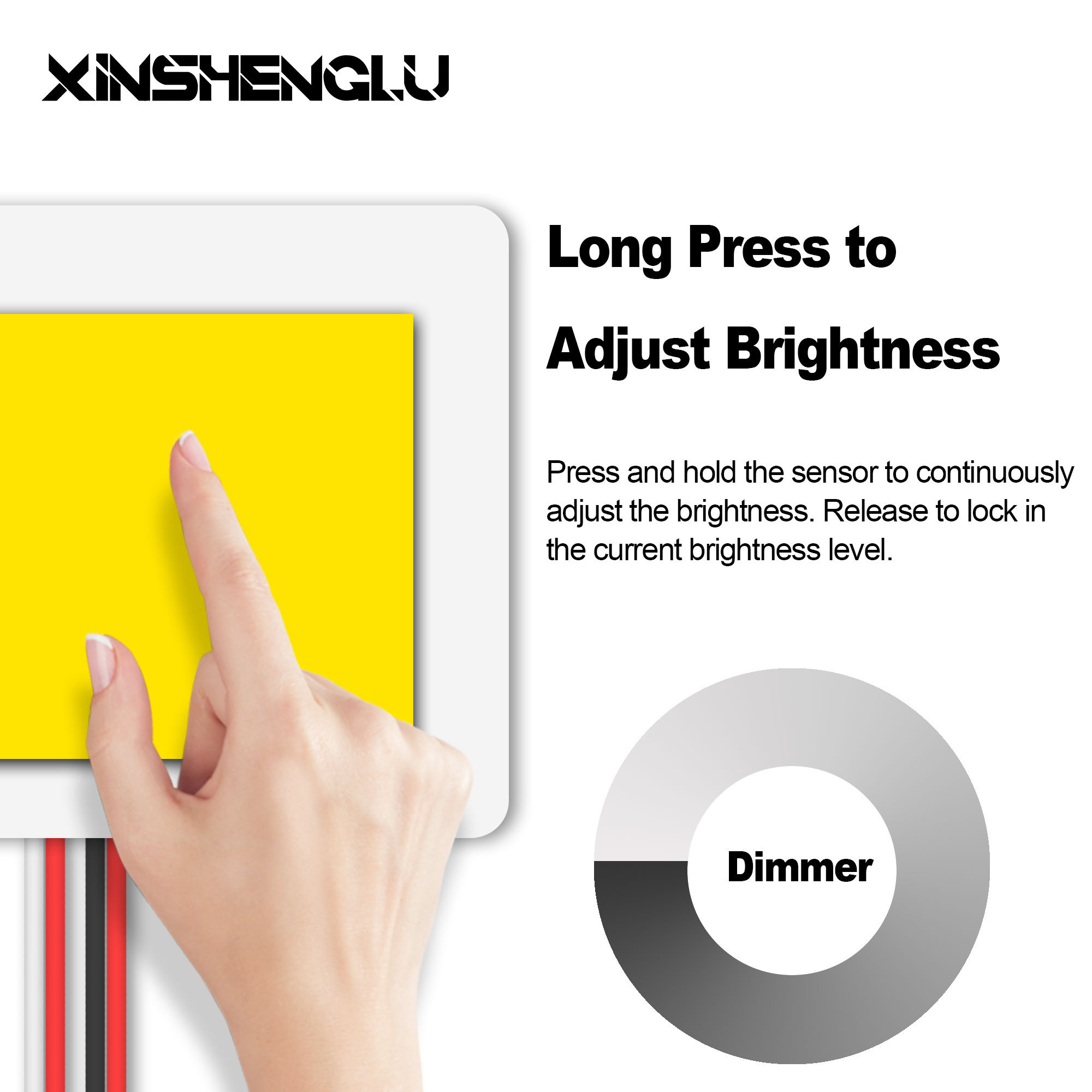

Stepless Dimming:
Long press the touch area to adjust the brightness continuously. Release to lock the desired level. Smooth and flicker-free dimming for user comfort.

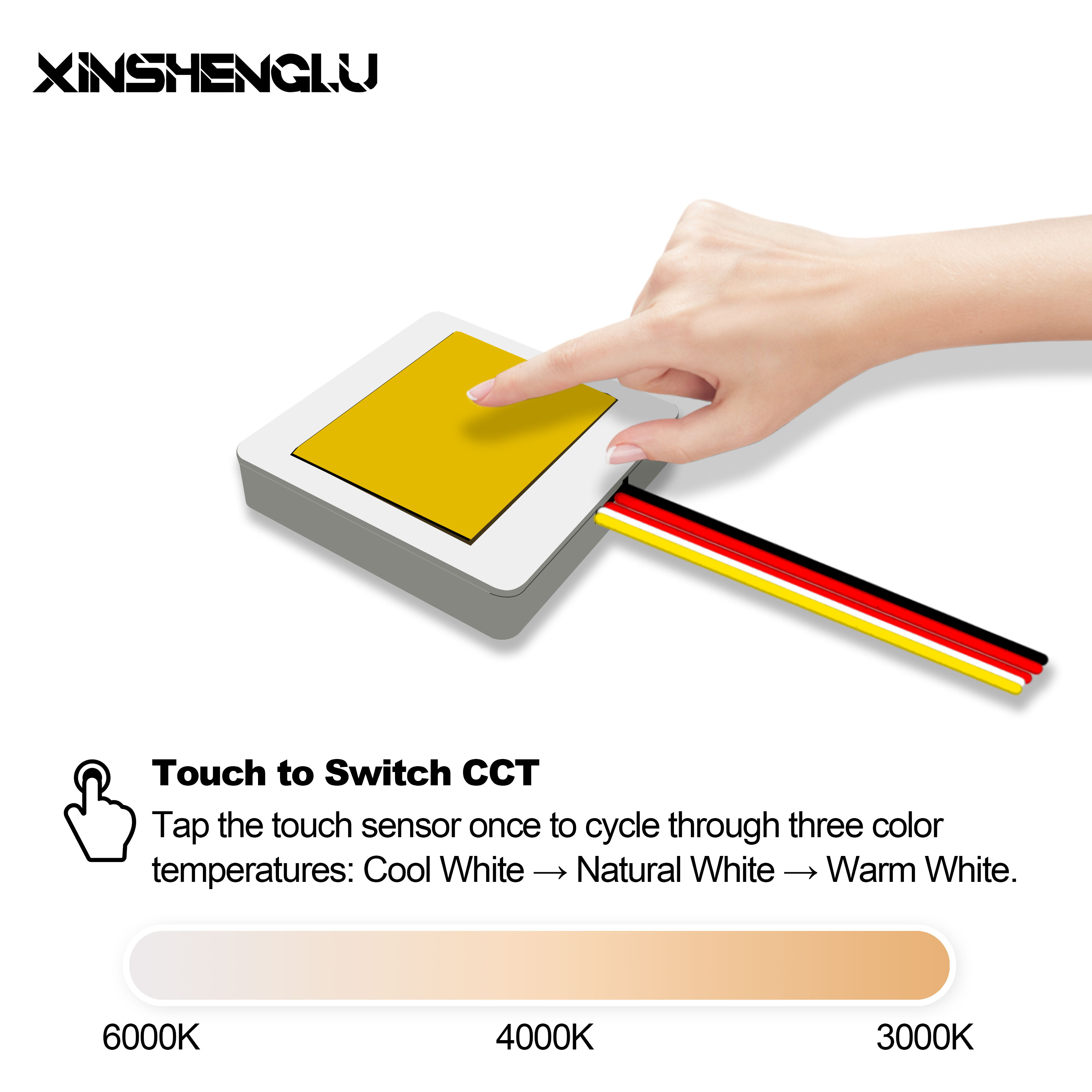

CCT Switching:
Tap the sensor to cycle through three color temperatures:
Cool White (6000K) → Natural White (4000K) → Warm White (3000K).
Adapt the ambiance to your needs, from refreshing to relaxing.
Defogger Control:
Integrated control line to connect a mirror defogger. Activate or deactivate with a touch.
High-Sensitivity Touch Panel:
Sleek, durable, and responsive touch interface for modern designs.
Flexible Connection Options:
Multiple connector types available for quick installation and customization.
OEM/ODM Customization:
Tailored functions, wiring, and logo printing available upon request.
Applications:

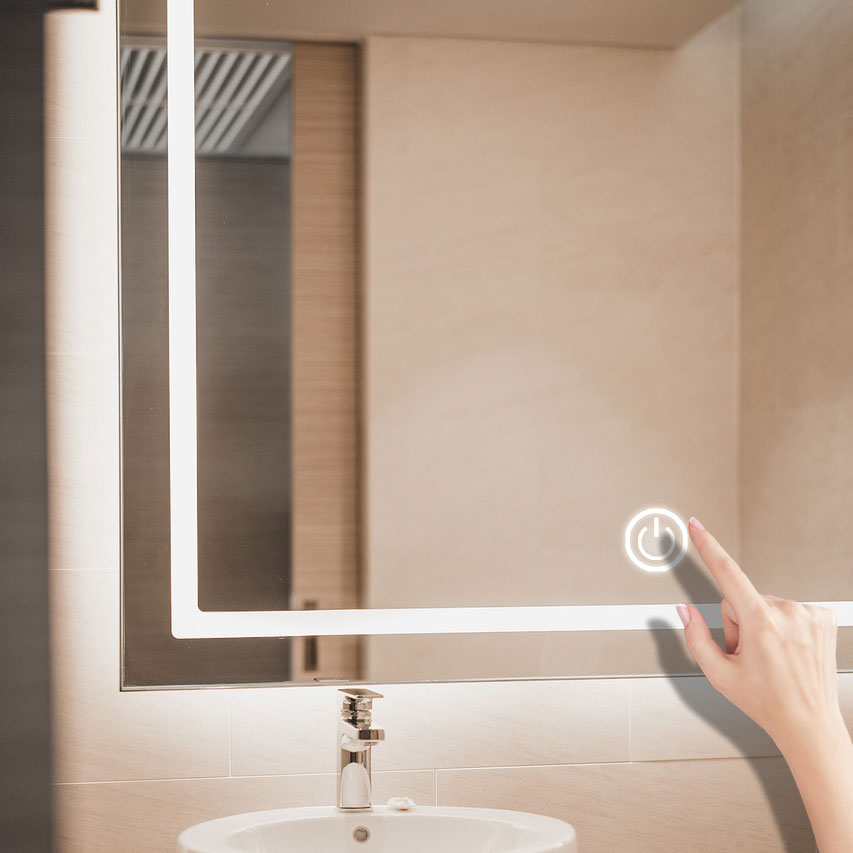

Bathroom smart mirrors, makeup mirrors, wardrobe mirrors, hotel LED mirrors, and other LED light control systems.
