The SK02 All-in-One LED Mirror Touch Switch features a built-in 12V power supply, allowing direct connection to AC power without an additional external LED driver. This integrated design simplifies installation, reduces wiring complexity, and helps mirror manufacturers save on component costs.
Designed for modern LED bathroom mirrors, this single-button touch switch supports both single-color and CCT LED strips, offering adjustable color temperature, stepless dimming, and a lighting memory function for convenient everyday use.
With an AC 110–240V input and 12V 72W output, the SK02 provides a compact, cost-effective lighting control solution for LED mirror manufacturers and customized bathroom mirror projects.
| Quantity: | |
|---|---|
A well-designed LED mirror requires more than attractive lighting. For mirror manufacturers, the efficiency of the internal electrical system is equally important.
The SK02 Integrated LED Mirror Touch Switch combines an AC-to-DC power supply and LED lighting controller in one compact unit. Instead of installing a separate LED driver and touch switch, manufacturers can use a single integrated module to simplify the lighting system.
With an AC 110–240V input and 12V DC output, the SK02 is designed for compatible single-color and CCT LED mirror lighting applications.
This all-in-one solution helps reduce the number of components required, simplify wiring arrangements, and improve efficiency during mirror assembly.
Specifications
01 Control three colors 12W
02 Control three colors 72W

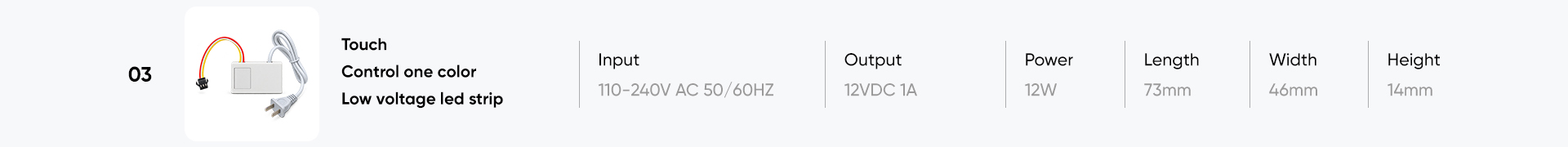

03 Control one colors 12W
04 Control one colors 72W
Traditional low-voltage LED mirror systems typically require a separate power supply and lighting controller. Each additional component increases the number of parts that manufacturers need to purchase, manage, and install.
The SK02 addresses this challenge by integrating both functions into one unit.
Key advantages for mirror manufacturers:
No External LED Driver Required: The built-in 12V power supply eliminates the need for a separate compatible LED driver.
Reduced Component Purchasing: Fewer independent components can help lower overall material purchasing costs.
Simplified Wiring: An integrated controller reduces the number of separate devices inside the mirror assembly.
Convenient AC Connection: The supplied power cord allows connection to a compatible AC power outlet.
Efficient Mirror Production: A simplified component arrangement can make assembly and inventory management easier.
For manufacturers producing illuminated mirrors in different sizes and designs, this integrated approach provides a practical alternative to conventional separate-controller systems.

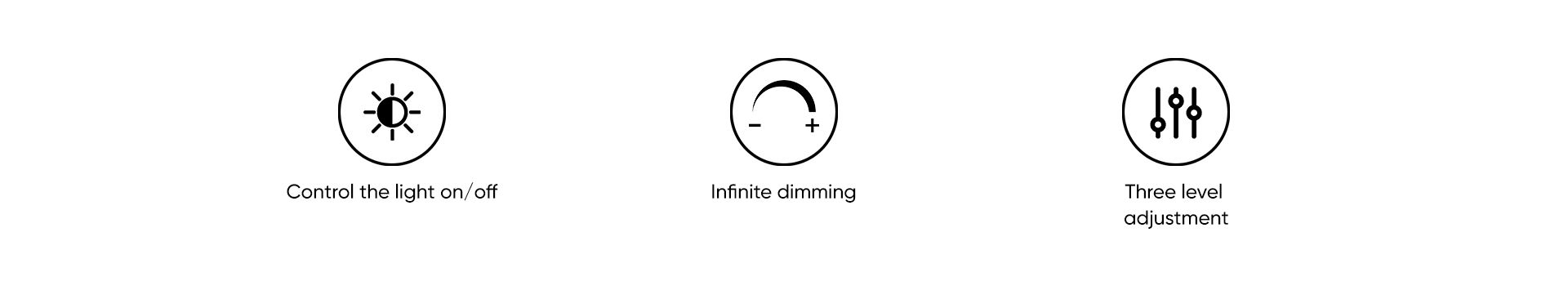

The SK02 features a single-button touch control design that combines multiple lighting functions into one interface.
It supports compatible 12V single-color LED strips as well as CCT LED strips designed for adjustable white color temperatures.
Single-Color LED Lighting
For mirrors using a single-color LED strip, the SK02 provides convenient light switching and adjustable brightness. Users can select a comfortable lighting level for everyday activities.
CCT Adjustable White Lighting
When connected to a compatible CCT LED strip, the controller supports different white lighting tones, including:
Warm White — A soft, comfortable lighting atmosphere.
Neutral White — Balanced illumination for everyday activities.
Cool White — Crisp white lighting for a brighter visual appearance.
This flexibility allows mirror manufacturers to develop different illuminated mirror styles using the same controller model, provided the LED strip specifications and wiring are compatible.
Lighting needs vary depending on the environment, time of day, and personal preferences.
The SK02 LED mirror dimmer offers stepless brightness adjustment, allowing users to adjust light intensity instead of being limited to fixed brightness levels.
The integrated lighting memory function helps retain previously selected lighting settings, reducing the need for repeated adjustments during normal use.
Together, these functions create a more flexible lighting experience for bathroom mirrors, vanity mirrors, and decorative illuminated mirrors.
The SK02 integrated mirror switch is designed for manufacturers and suppliers developing low-voltage illuminated mirror products.

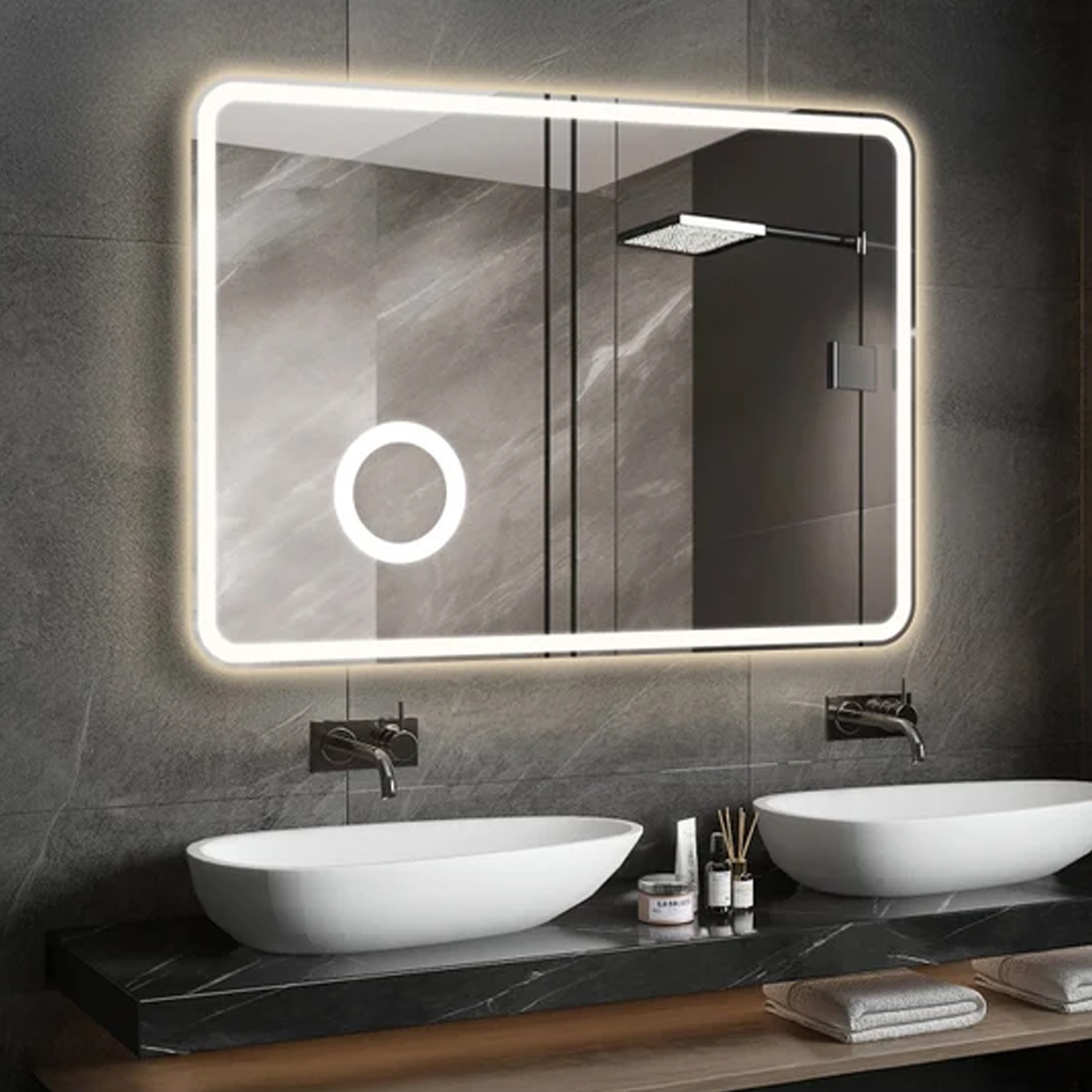

Bathroom LED Mirrors
Control the brightness and color temperature of compatible LED mirror lighting for everyday bathroom use. The control module must be installed in a suitably protected, dry location.

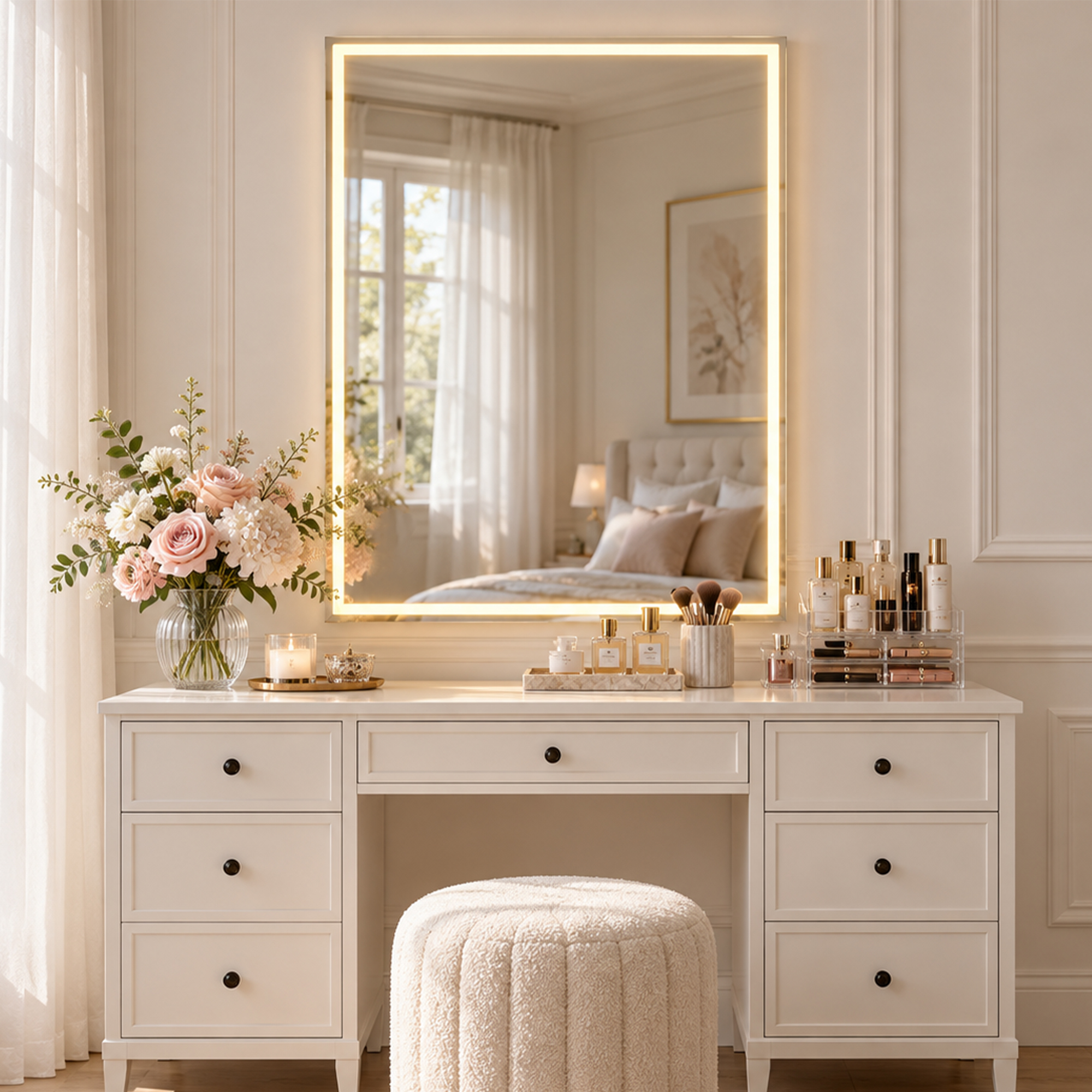

Vanity and Makeup Mirrors
Adjustable white lighting and brightness control help create a comfortable environment for grooming and makeup applications.
Decorative Backlit Mirrors
The integrated controller can be used with compatible 12V LED strips to create adjustable ambient lighting for decorative mirror designs.
Customized LED Mirror Projects
For mirror manufacturers working with different lighting requirements, the SK02 offers a compact solution combining power conversion and lighting control.

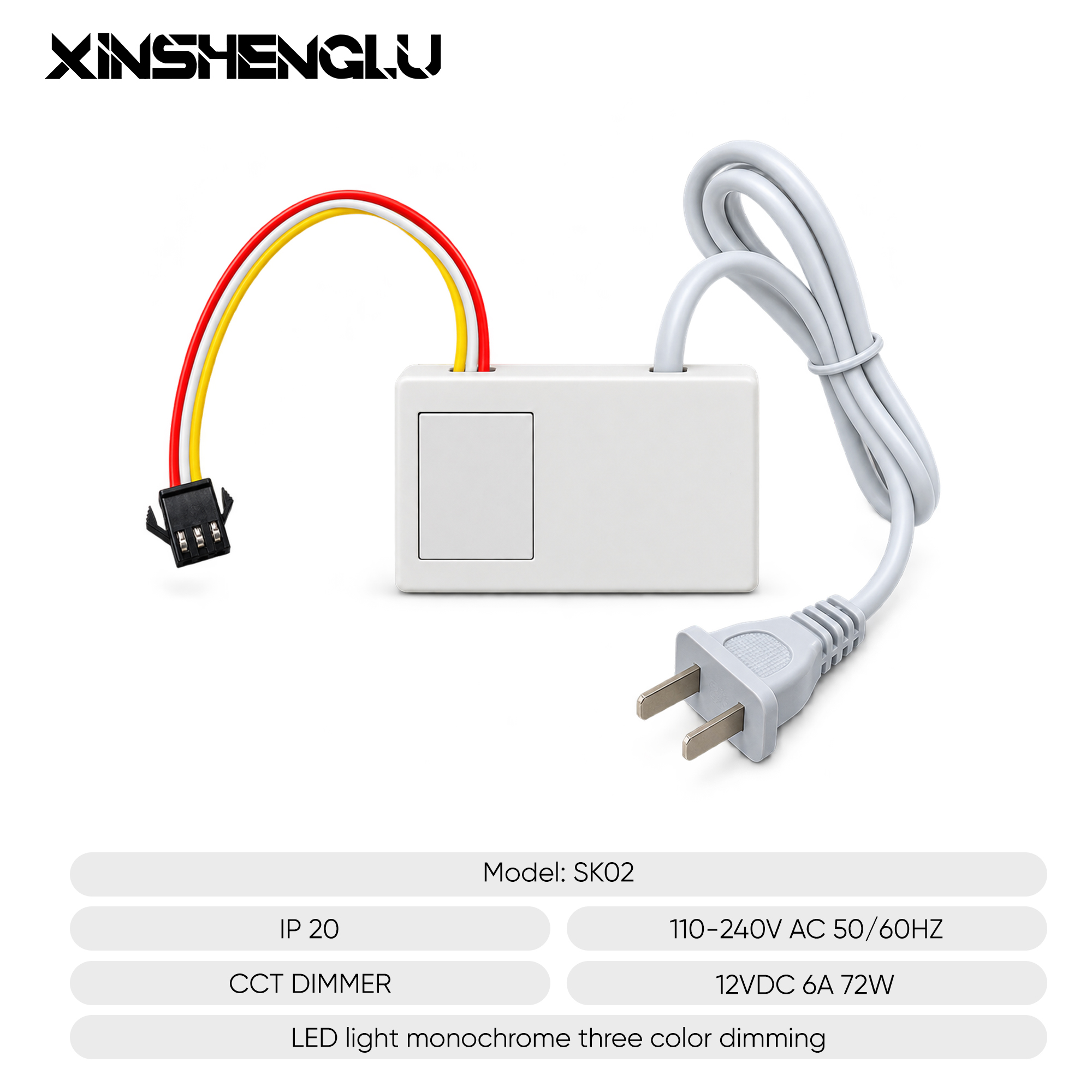

Specification | Details |
|---|---|
Model | SK02 |
Product Type | Integrated LED Mirror Touch Switch |
Input Voltage | AC 110–240V |
Input Frequency | 50/60Hz |
Output Voltage | DC 12V |
Maximum Output Current | 6A |
Maximum Rated Output Power | 72W |
Protection Rating | IP20 |
Control Interface | Single-Button Touch Control |
LED Strip Compatibility | Compatible 12V Single-Color / CCT LED Strips |
Brightness Control | Stepless Dimming |
Additional Function | Lighting Memory |

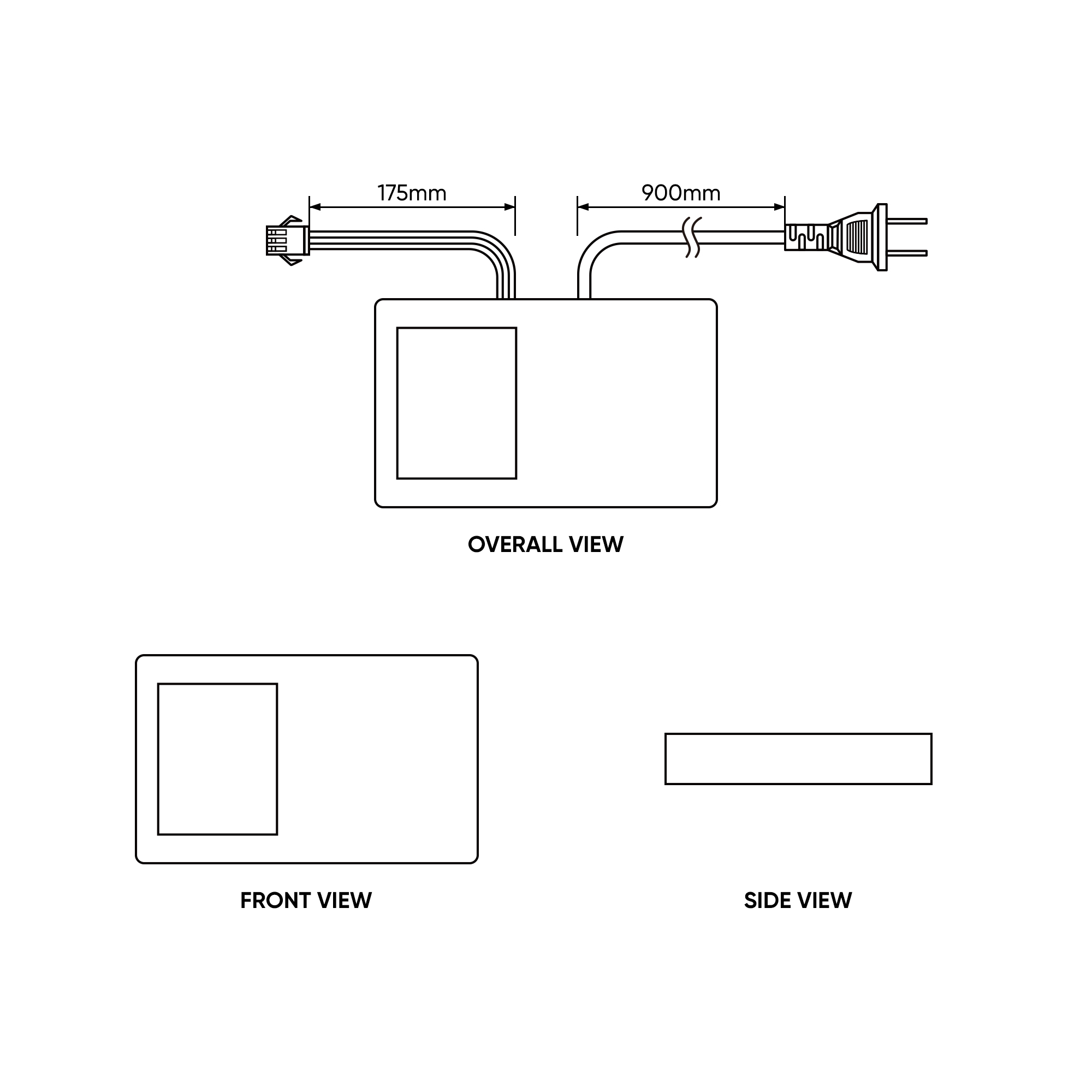

AC Power Cord Length | 900 mm |
LED Output Cable Length | 175 mm |
The SK02 is designed to simplify the connection between the AC power source and compatible 12V LED mirror lighting.
Its integrated construction combines power conversion and lighting control, eliminating the need to install a separate LED driver.
Before installation, confirm that the connected LED strip uses a compatible 12V DC configuration and that its total power consumption does not exceed the controller's rated 72W output.
For CCT applications, verify the LED strip wiring configuration and connection requirements.
Important: The SK02 is a low-voltage LED controller with an integrated AC-to-DC power supply. It is not designed to power high-voltage LED strips directly. As an IP20 product, it requires installation away from water exposure and within an appropriately protected environment. AC electrical installation should be performed by qualified personnel in accordance with local requirements.
Q1: Does the SK02 require an external LED power supply?
No. The SK02 features a built-in 12V DC power supply, so a separate compatible LED driver is not required for the intended lighting system.
Q2: Can the SK02 control both single-color and CCT LED strips?
Yes. The SK02 supports compatible 12V single-color and CCT LED strips. The connected strip must match the controller's electrical and wiring requirements.
Q3: Does the controller support brightness adjustment?
Yes. It features stepless dimming for adjustable LED mirror brightness.
Q4: Can the SK02 remember the lighting settings?
Yes. The SK02 includes a lighting memory function for retaining previously selected lighting settings during normal operation.
Q5: What is the maximum power output?
The rated maximum output is 12V DC, 6A, equivalent to 72W. The connected lighting load must remain within this rating.
Q6: Is the SK02 suitable for bathroom mirrors?
Yes, it is designed for LED mirror lighting applications. However, the IP20 controller must be installed in a protected, dry location that meets the electrical safety requirements of the intended installation.
Q7: Can the SK02 connect directly to AC power?
Yes. The integrated unit accepts AC 110–240V, 50/60Hz input through a suitable power connection. The supplied plug must match the installation region's socket requirements.
Whether you manufacture bathroom mirrors, vanity mirrors, or customized illuminated mirrors, the SK02 offers a practical way to combine lighting control and power conversion into one module.
By reducing the need for separate electrical components while supporting multiple lighting functions, it can help simplify product design, purchasing, and assembly.
Looking for an integrated LED mirror touch switch for your next project?
Contact us to discuss SK02 specifications, LED strip compatibility, plug requirements, and OEM/ODM mirror lighting applications.

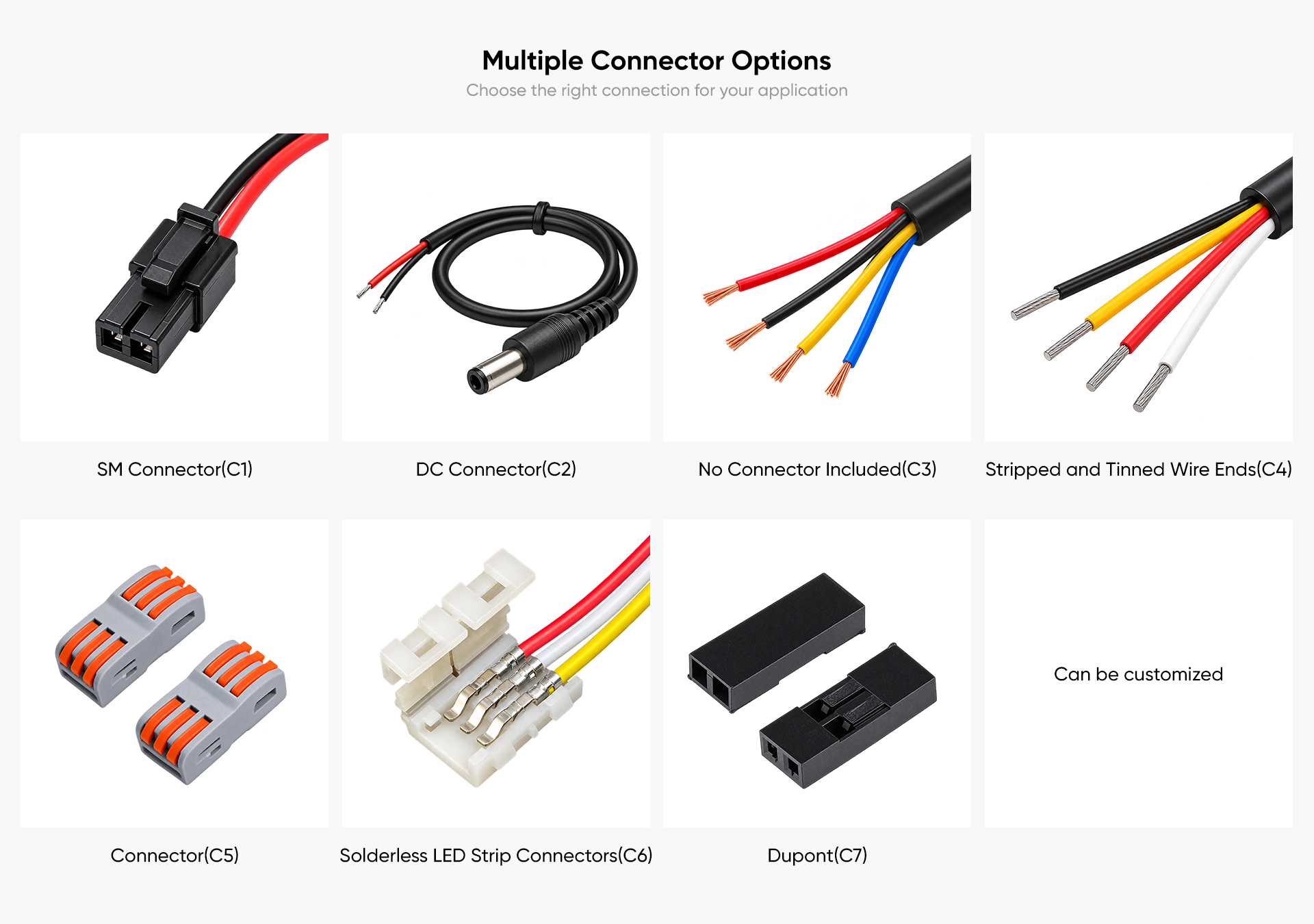

Multiple Connector Options

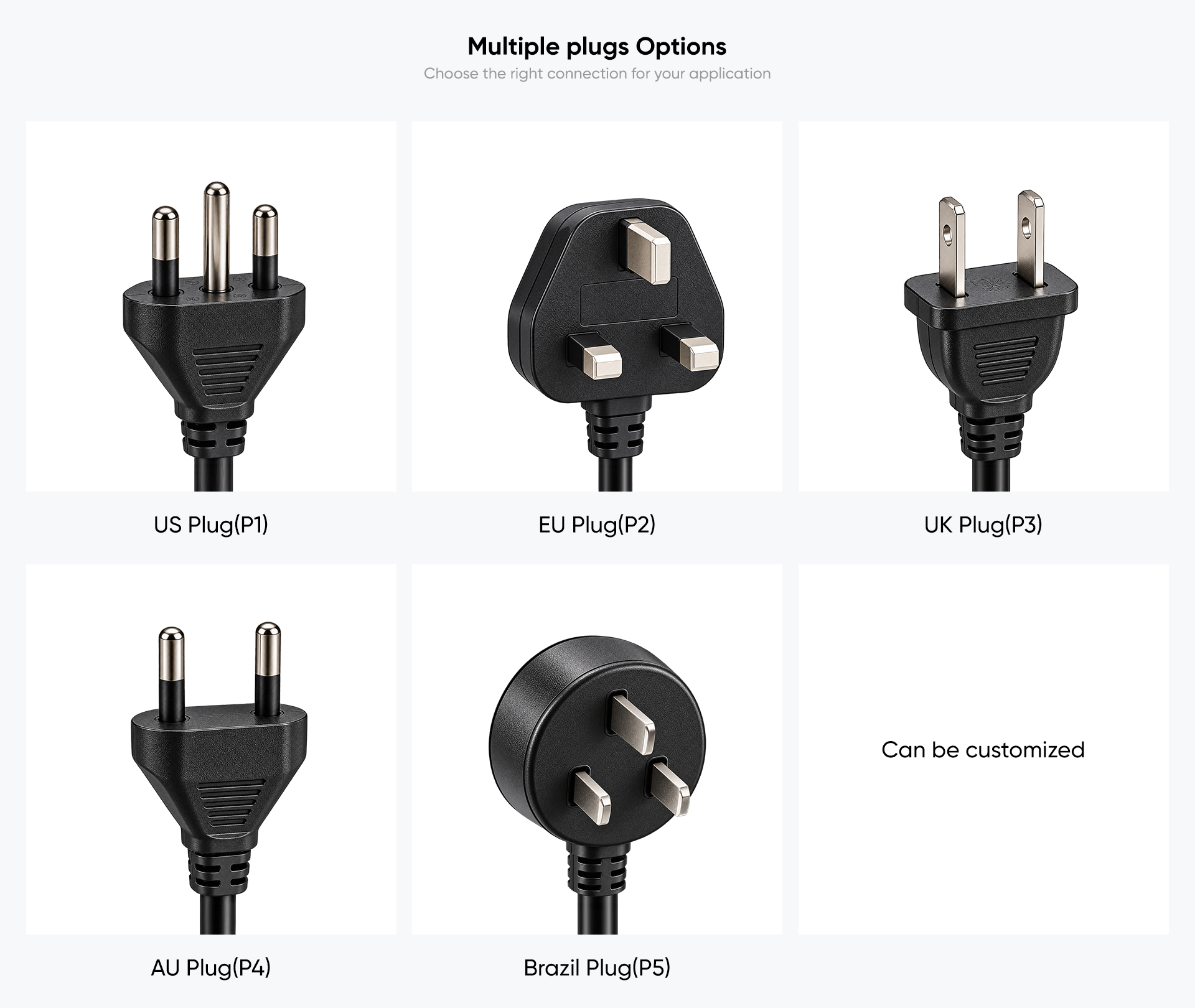

Multiple plugs Options
