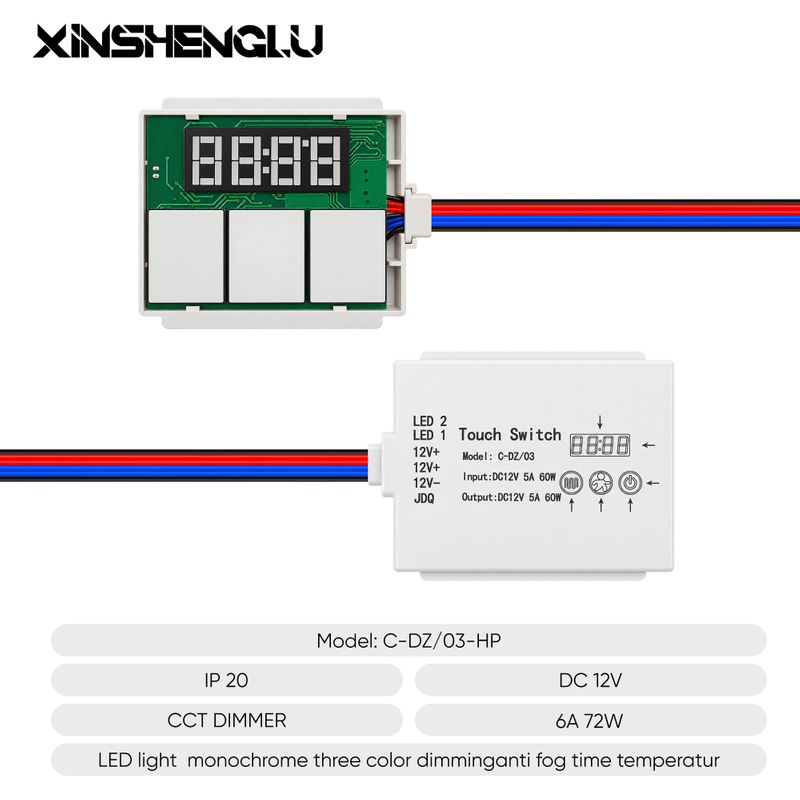

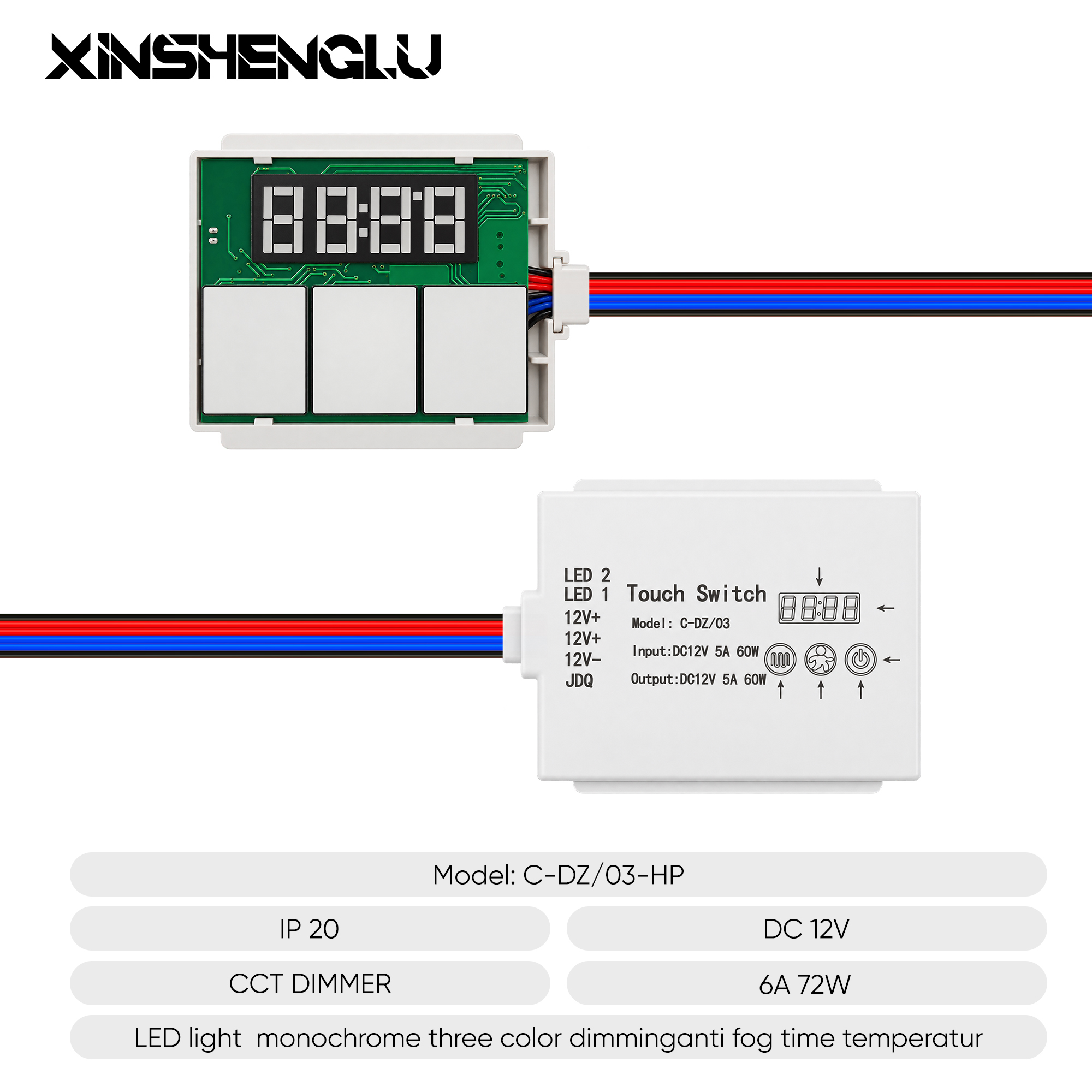

The C-DZ/03-HP LED Mirror Touch Switch is a 12V smart mirror controller featuring an upgraded segment-only digital display for a cleaner, more elegant bathroom mirror appearance.
Unlike conventional mirror switches that require a full rectangular laser-etched display window, this innovative design allows only the digital segments to be laser-etched onto the mirror surface. When illuminated, the time and temperature digits appear without a visible black rectangular background.
Designed for modern LED bathroom mirrors, it supports single-color and CCT LED lighting, dimming, defogger control, and time and temperature display. An ideal solution for OEM/ODM smart mirror manufacturers seeking seamless aesthetics and multifunctional touch control.
| Quantity: | |
|---|---|
Designed for Better Mirror Aesthetics
Traditional LED mirror touch switches with digital displays often require a complete rectangular laser-etched window on the mirror surface. This window may appear as a dark rectangle even when the digital display is turned off, affecting the overall appearance of the bathroom mirror.
The C-DZ/03-HP LED Mirror Touch Switch features an upgraded segment-only digital display designed to overcome this limitation.
Thanks to its optimized LED segment structure, mirror manufacturers can laser-etch individual digital segments rather than removing the entire rectangular display area.
When activated, the illuminated time or temperature digits appear directly on the mirror surface without a visible rectangular background.
Key Benefits:
No visible black rectangular display window
Cleaner and more integrated mirror appearance
Segment-shaped laser etching for precise digital displays
Suitable for modern and minimalist bathroom mirror designs
A Small Design Change That Makes a Visible Difference

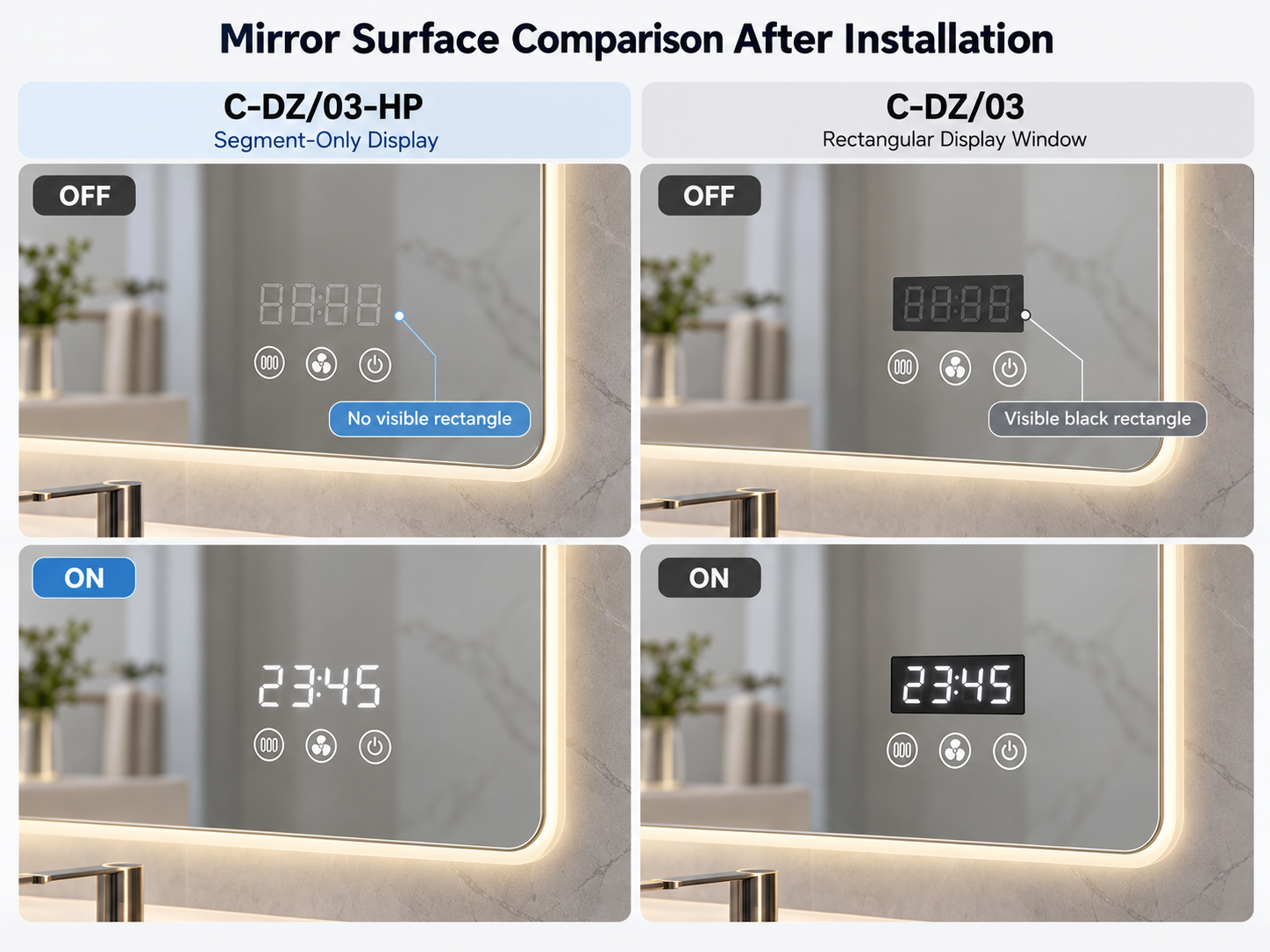

The main difference between the C-DZ/03-HP and conventional C-DZ/03 mirror touch switches lies in the digital display structure and its compatibility with mirror laser etching.
Conventional Rectangular Display – C-DZ/03
A complete rectangular display window is typically required for laser etching. When the display is turned off, the dark rectangular area remains visible on the mirror surface. When illuminated, the digits appear within this rectangular window.
Upgraded Segment-Only Display – C-DZ/03-HP
The optimized digital display allows laser etching to follow the individual seven-segment digit shapes.
When the display is off, only subtle laser-etched segment patterns may remain visible. When activated, the illuminated numbers appear directly on the mirror surface without a surrounding black rectangle.
This design helps mirror manufacturers achieve a more refined appearance without sacrificing digital display functionality.
Lighting, Dimming, Defogging and Digital Display in One Controller
The C-DZ/03-HP combines multiple bathroom mirror functions in a compact 12V touch control module.
Single-Color and CCT LED Lighting
Supports compatible single-color and CCT LED mirror lighting systems, allowing manufacturers to create different lighting configurations for modern bathroom mirrors.
Smooth LED Dimming
Adjust the LED mirror lighting brightness to create comfortable illumination for daily bathroom activities.
Mirror Defogger Control
Supports mirror defogger operation, helping keep the mirror surface clear in humid bathroom environments when connected to a compatible defogging system.
Time and Temperature Display
The integrated four-digit digital display provides time and temperature information directly on the mirror surface, combining practical functionality with an elegant visual appearance.
Three Touch Control Areas
The controller features three touch-sensitive areas for integrated mirror functions, providing a convenient interface for smart bathroom mirror applications.
Optimized for Smart Mirror Manufacturers
The C-DZ/03-HP is designed for integration behind the glass of LED bathroom mirrors.
Its segment-only display structure allows manufacturers to use a laser-etching pattern aligned with the illuminated digital segments, instead of creating a large rectangular display window.

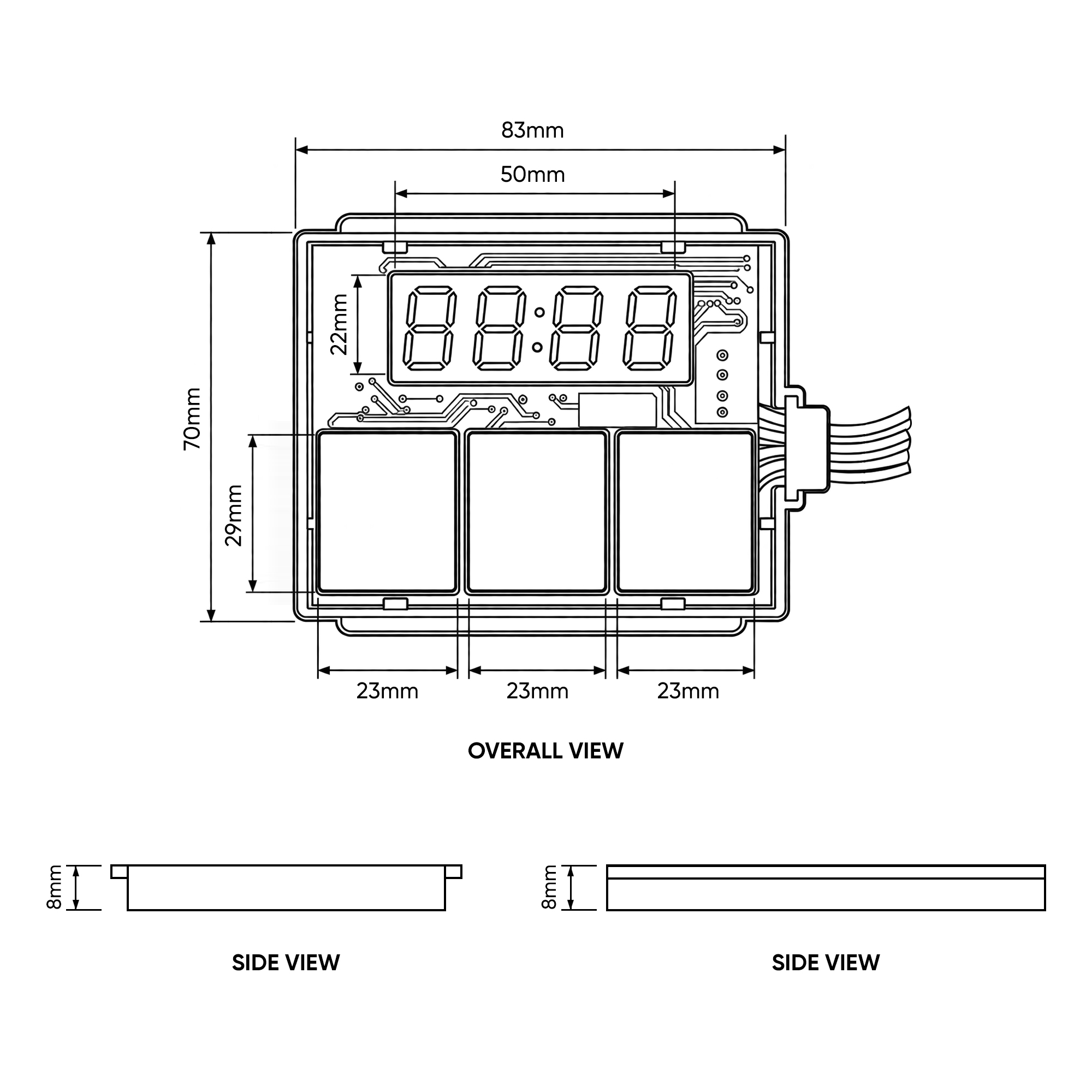

The compact module measures approximately 83 × 70 × 8 mm, making it suitable for integration into compatible custom mirror designs.
For the best visual result, the laser-etched pattern must be accurately aligned with the digital display. Mirror coating characteristics, light transmission and installation positioning should be verified before mass production.
This design offers a practical solution for bathroom mirror manufacturers looking to improve product aesthetics while maintaining multifunctional control.
Parameter | Specification |
|---|---|
Model | C-DZ/03-HP |
Product Type | LED Mirror Touch Switch |
Input Voltage | DC 12V |
Display Type | Segment-Only Digital Display |
Digital Display | Time and Temperature |
LED Lighting | Single-Color / CCT |
Dimming | Supported |
Defogger Control | Supported |
Touch Control | Three Touch Areas |
Dimensions | 83 × 70 × 8 mm |
Protection Rating | IP20 |
Electrical load ratings and wiring compatibility should be confirmed against the final approved product specification.

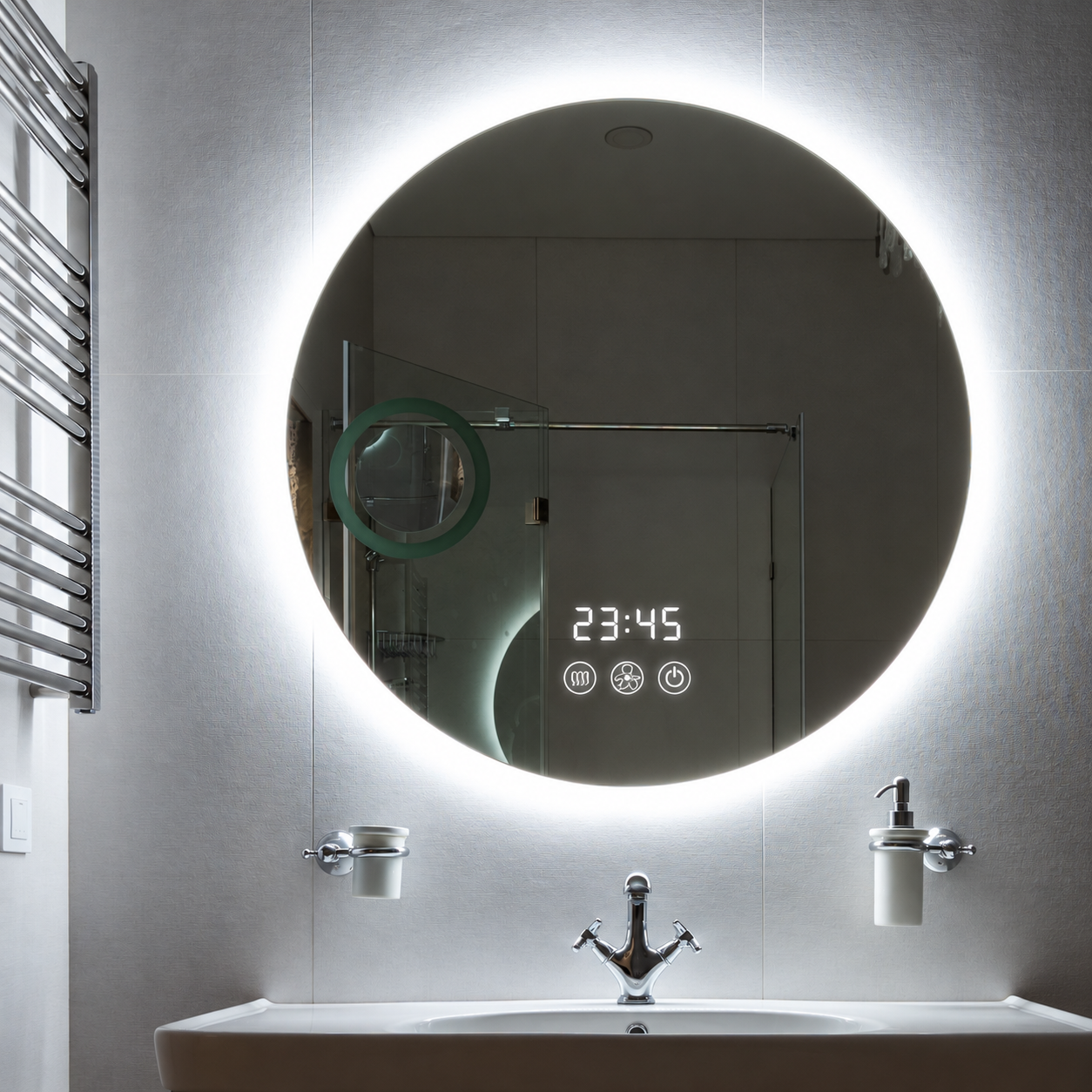

The C-DZ/03-HP is suitable for manufacturers and suppliers of:
LED bathroom mirrors
Smart bathroom mirrors
Backlit vanity mirrors
Custom illuminated mirrors
OEM/ODM mirror lighting systems
Its segment-only display design provides an attractive option for mirror manufacturers seeking a cleaner digital interface and more flexible mirror surface design.
What is a segment-only display for LED mirrors?
A segment-only display uses individually illuminated digital segments that can be matched with corresponding laser-etched patterns on the mirror surface. This avoids the need for a complete rectangular display window.
Will the digital display be invisible when turned off?
Not completely. Subtle laser-etched digital segments may remain visible depending on the mirror coating and lighting conditions. However, the design eliminates the prominent black rectangular display window commonly found in conventional mirror displays.
Can the C-DZ/03-HP control CCT LED lighting and mirror defogging?
Yes. The controller supports compatible CCT LED lighting, dimming, mirror defogger control and digital time and temperature display functions.
Is this touch switch suitable for custom mirror manufacturing?
Yes. The C-DZ/03-HP is designed for installation behind compatible mirror glass and can be incorporated into OEM/ODM LED mirror projects. Laser-etching alignment and electrical compatibility should be confirmed during product development.
Looking for an LED mirror touch switch that combines digital functionality with a cleaner mirror appearance?
The C-DZ/03-HP Segment-Only LED Mirror Touch Switch offers an improved display solution for modern smart bathroom mirror manufacturing.
Contact us for product specifications, samples and OEM/ODM cooperation.
