The XINSHENGLU SYK-23SS-02 LED Mirror Hand Wave Sensor Switch provides touchless lighting control for LED bathroom mirrors and illuminated mirrors. Users can operate the lighting without directly touching the mirror surface, helping reduce fingerprints during everyday use.
Available in separate single-color and CCT lighting versions, the switch supports on/off control and dimming, with color temperature switching available for the CCT version.
For DC12V applications, 5A/60W and 6A/72W configurations are available to suit different lighting load requirements. Its compact 52 × 44 mm control module is designed for integration into compatible LED mirror assemblies.
An ideal control option for LED mirror manufacturers, smart mirror producers, and OEM/ODM lighting projects.

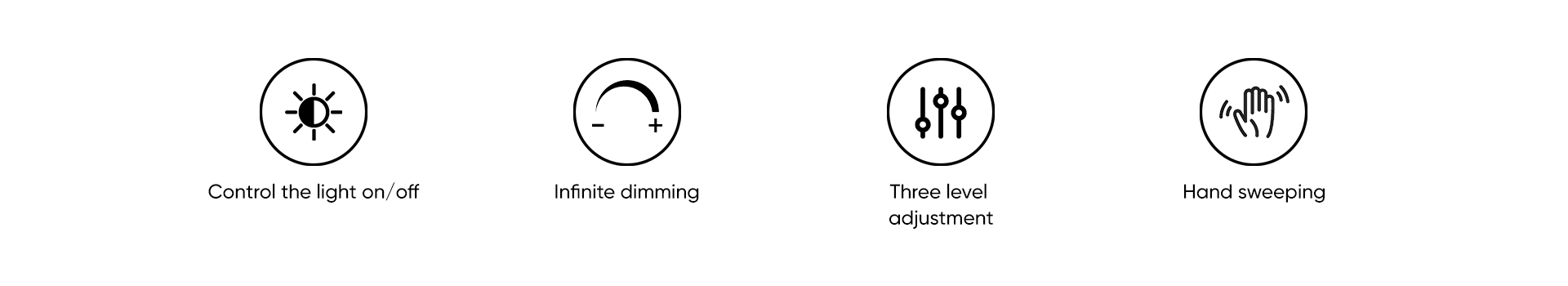

Touchless Hand-Wave Operation
Single-Color & CCT Versions
Lighting On/Off and Dimming Control
12V 5A/60W or 6A/72W Options
Compact 52 × 44 mm Module
Designed for LED Mirror Integration
| Quantity: | |
|---|---|

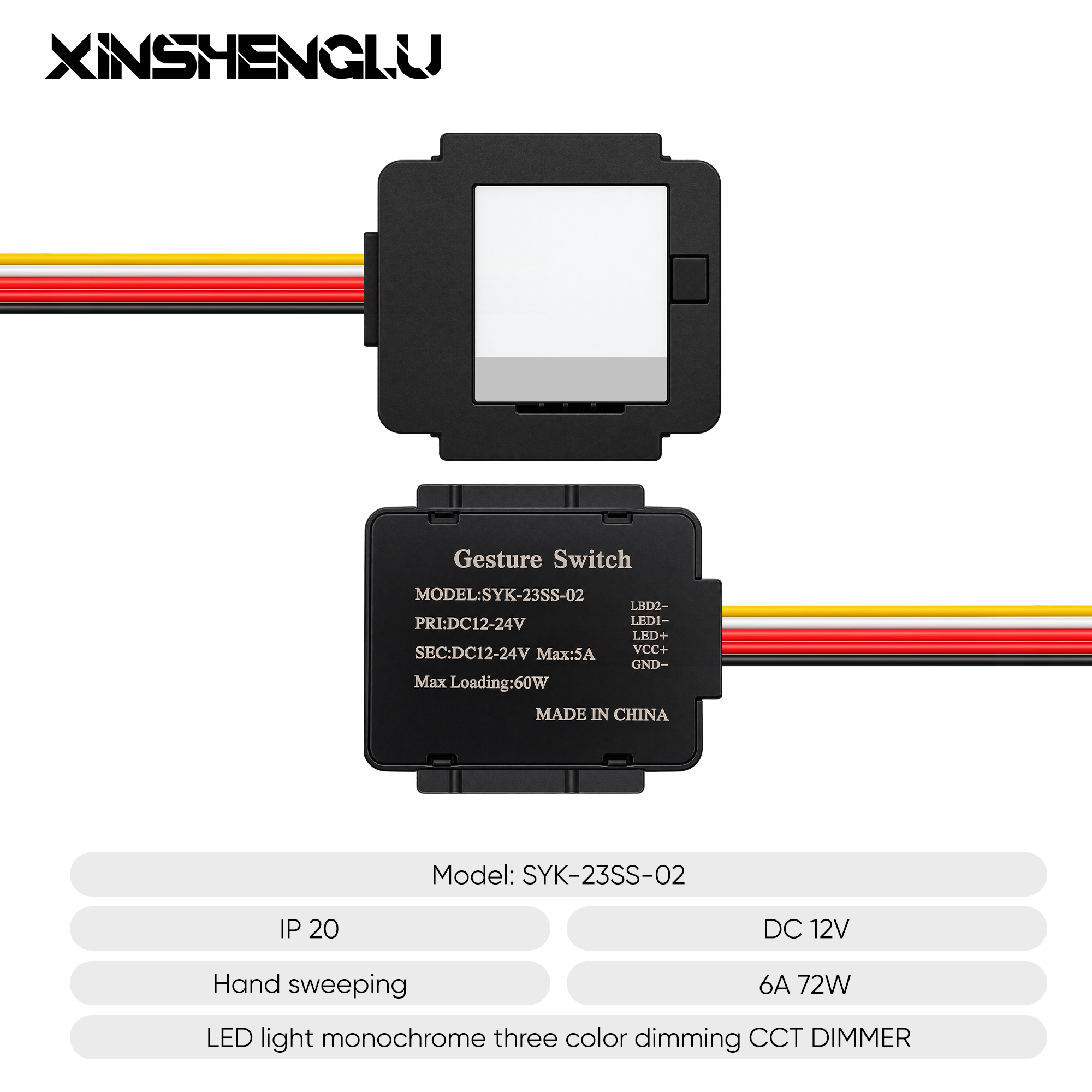

The XINSHENGLU SYK-23SS-02 LED Mirror Hand Wave Sensor Switch is a compact, non-contact lighting control module developed for LED bathroom mirrors and illuminated mirror applications.
Unlike conventional touch switches that require direct contact with the mirror surface, this hand-wave sensor switch allows users to operate the lighting through hand gestures.
It provides a practical lighting control solution for mirror manufacturers looking to integrate touchless operation into their products.
The SYK-23SS-02 series is available in separate single-color and CCT lighting versions, with dimming control and 12V rated power options of 60W and 72W.
Specifications：
Control LED mirror lighting without physically touching the mirror surface.
The hand-wave operation provides a convenient alternative to conventional touch switches, particularly in bathroom environments where users may have wet or damp hands.
Benefits:
No direct contact with the mirror surface during normal operation
Helps reduce fingerprints and touch marks
Convenient lighting operation
Suitable for modern illuminated mirror designs
The SYK-23SS-02 series offers different control versions to accommodate different LED lighting configurations.
Single-Color Version
Designed for compatible single-color LED lighting systems, providing convenient on/off lighting control with dimming capability.
CCT Version
Designed for compatible adjustable-white LED lighting systems, supporting lighting on/off control, color temperature switching, and brightness adjustment.
These separate versions allow mirror manufacturers to select a control configuration according to the LED strips used in their products.
In addition to basic on/off switching, the SYK-23SS-02 offers lighting dimming control.
This allows users to adjust illumination according to different lighting preferences and application requirements.
For CCT lighting applications, the appropriate version also supports color temperature switching.
The exact gesture sequence and dimming behavior depend on the selected control version.
Different LED mirror designs may require different lighting loads.

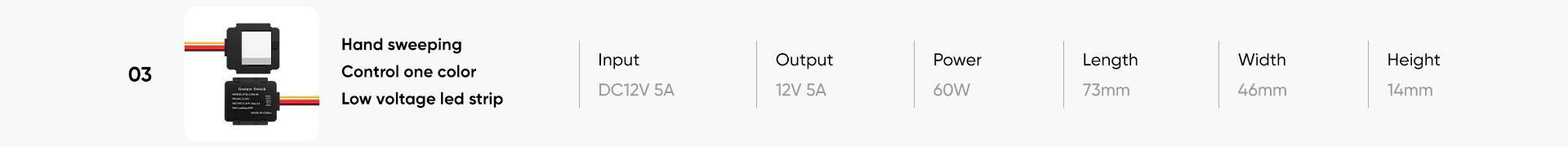

The SYK-23SS-02 series offers two rated configurations for DC12V applications:
5A / 60W Version
6A / 72W Version
These options allow manufacturers to select a controller according to their LED lighting load requirements.
The connected LED load must remain within the rated specifications of the selected version. Additional operating limits for 24V applications should be confirmed separately.

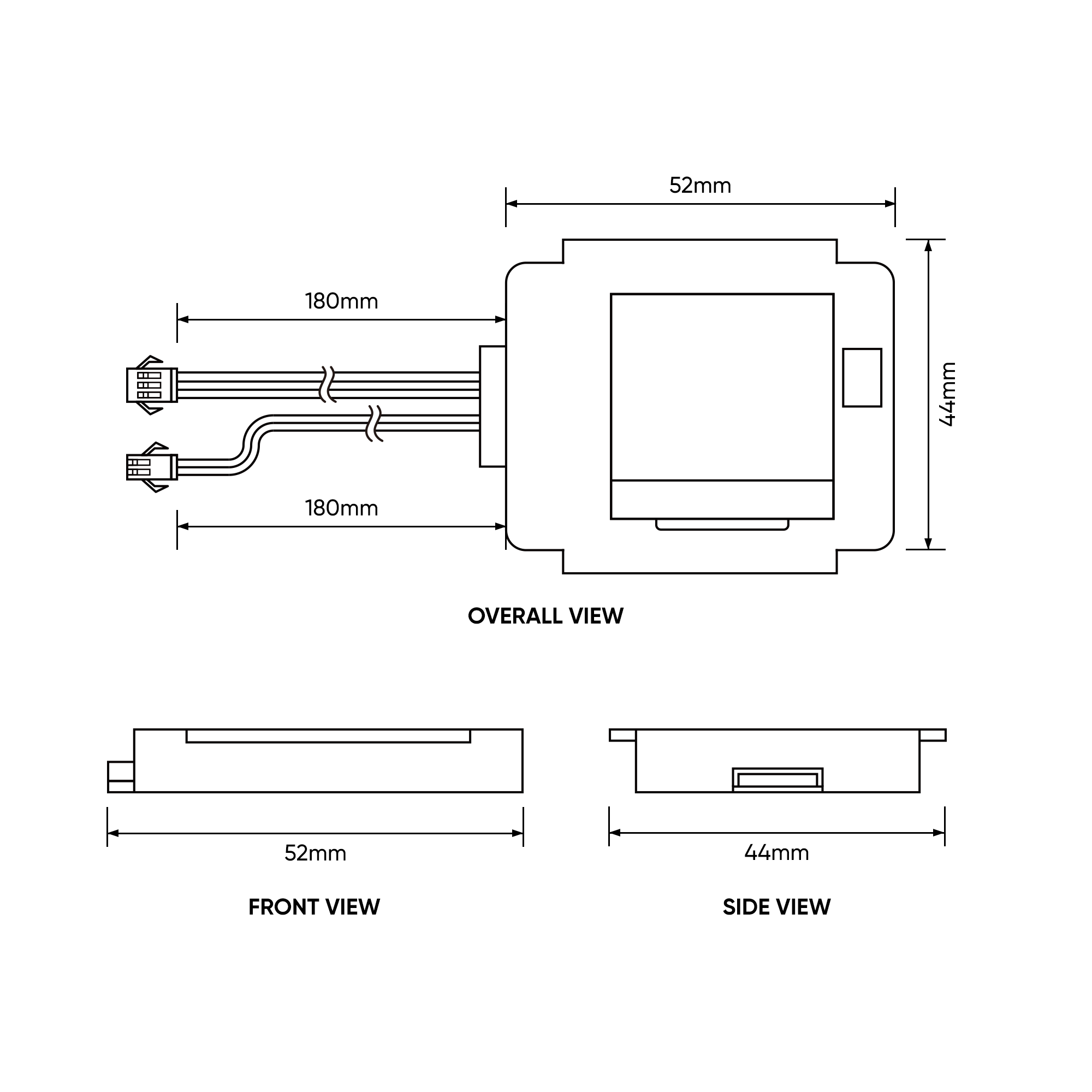

The switch features a compact control module with an overall housing size of approximately 52 × 44 mm.
Its compact construction is intended for integration into compatible LED mirror assemblies.
The module can be considered for mirror-back installation layouts where available space, cable routing, and sensor positioning have been evaluated.
The SYK-23SS-02 uses a hand-gesture sensing system to operate compatible LED mirror lighting.
Rather than pressing a physical button on the mirror surface, users operate the switch through hand movements detected by the sensing area.
Lighting On/Off
Hand-wave operation allows users to switch the connected LED lighting on and off without direct contact.
Brightness Adjustment
The dimming function enables brightness adjustment through the supported gesture controls.
CCT Color Temperature Switching
On the CCT version, users can switch between supported color temperature settings of compatible CCT LED lighting.
The exact operating gestures, sensing distance, and switching sequence should follow the instructions for the selected version.
The single-color version is designed for LED mirror lighting systems using compatible single-color LED strips.
Typical applications include:
Single-color illuminated bathroom mirrors
LED vanity mirrors
Decorative backlit mirrors
Mirror lighting systems requiring contactless switching and dimming
The CCT version is intended for compatible tunable-white LED mirror lighting systems.
Depending on the connected LED system, users can select different white-light color temperature settings and adjust brightness.
Typical applications include:
Adjustable-white bathroom mirrors
LED mirrors with warm, neutral, and cool white lighting modes
Smart mirror lighting assemblies
OEM illuminated mirrors with integrated CCT control
Note: Single-color and CCT configurations are separate product versions. Select the appropriate controller according to the LED strip type and required control functions.
Parameter | Specification |
|---|---|
Brand | XINSHENGLU |
Model | SYK-23SS-02 |
Product Type | LED Mirror Hand-Wave Sensor Switch |
Control Method | Touchless Hand-Wave Control |
Lighting Versions | Single-Color / CCT |
Main Functions | On/Off, Dimming |
CCT Version Function | Color Temperature Switching |
Voltage Marking | DC12–24V |
Rated Configuration 1 | DC12V, 5A, 60W |
Rated Configuration 2 | DC12V, 6A, 72W |
Housing Dimensions | 52 × 44 mm |
Cable Length | 180 mm, as shown in the supplied drawing |
IP Rating | IP20 (as specified in the supplied product information) |
Application | Compatible LED Mirror Lighting Systems |
Technical Note: The 60W and 72W ratings above apply to the specified DC12V configurations. The actual supported load and electrical ratings for DC24V installations must be verified for the selected controller version.
The hand-wave sensor switch provides contactless lighting operation for compatible LED bathroom mirror designs.
It is particularly useful where manufacturers wish to provide an alternative to conventional mirror-surface touch controls.
The switch can be integrated into vanity mirror lighting assemblies to provide convenient switching and brightness control.
The CCT version supports compatible adjustable-white LED lighting arrangements, allowing mirror manufacturers to offer different white-light settings.
For mirror manufacturers developing different product ranges, the available lighting versions and 12V power configurations provide options for selecting a suitable control module.
Correct product selection is important for safe operation and reliable lighting control.
Before integration, mirror manufacturers should verify the following:
1. LED Strip Type
Choose the single-color version for compatible single-color LED strips and the CCT version for compatible adjustable-white LED strips.
2. Power Supply Compatibility
The controller is designed for low-voltage DC lighting systems. A compatible DC power supply is required.
Do not connect the controller directly to AC mains voltage.
3. Electrical Load
Confirm that the total connected LED load does not exceed the rated current and power of the selected controller version.
4. Sensor Positioning
The sensing area must be positioned appropriately for the mirror's construction and installation design.
Mirror materials, sensor mounting conditions, and surrounding components should be checked during product development.
5. Environmental Protection
IP20 is the declared protection rating in the supplied product information. Appropriate environmental protection and installation measures are required for the finished mirror assembly.
6. Wiring Configuration
Use the wiring diagram provided for the exact controller version. Single-color and CCT configurations should not be assumed to have interchangeable wiring arrangements.
XINSHENGLU supplies electronic lighting control components for LED mirror manufacturing applications.
The SYK-23SS-02 series can be evaluated for different mirror lighting projects based on electrical requirements, lighting configurations, sensor placement, and production integration needs.
For OEM/ODM projects, customers can discuss:
Single-color or CCT lighting configurations
Required current and power ratings
Integration with compatible LED strip systems
Sensor positioning and mirror assembly requirements

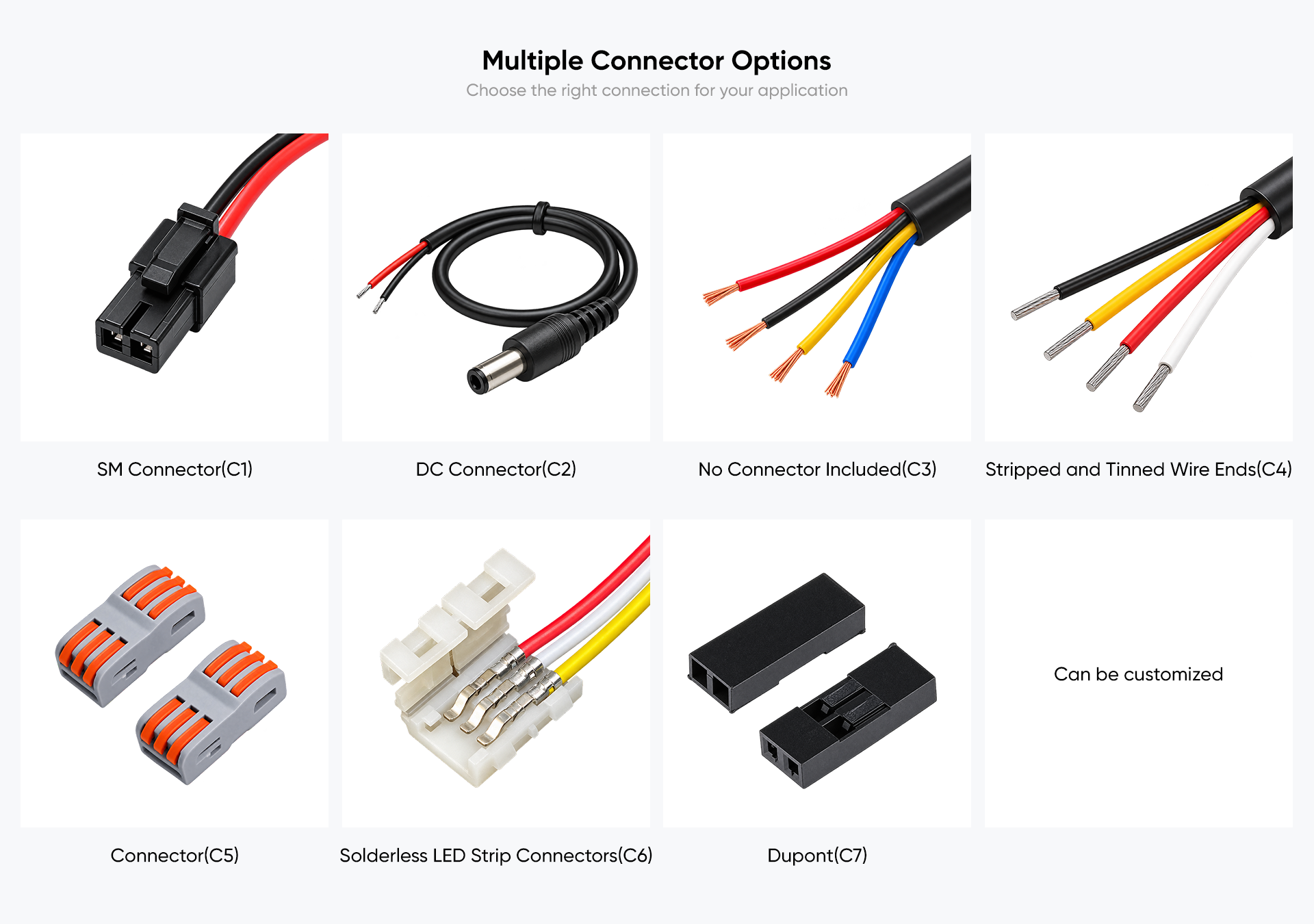

Connector and wiring requirements
Project-specific functional requirements
Please provide your technical requirements for compatibility evaluation before production.
A hand-wave sensor switch is a contactless lighting controller that allows users to operate compatible mirror lighting through hand movements instead of directly touching a switch on the mirror surface.
Yes. A separate CCT version is available for compatible adjustable-white LED lighting systems. It supports lighting switching, color temperature selection, and dimming.
Yes. A single-color version is available for compatible single-color LED strip applications.
For DC12V systems, the 60W version is rated at 5A, while the 72W version is rated at 6A. Customers should select the appropriate configuration according to the electrical load of their LED lighting.
No. It is a low-voltage DC lighting control module. A compatible DC power supply is required between the AC mains supply and the controller.
The module is intended for integration into compatible LED mirror assemblies. The sensor position, mirror construction, available mounting space, and installation conditions must be evaluated to ensure proper operation.
No. They are separate lighting control configurations. The controller must match the connected LED strip type and wiring requirements.
The supplied product housing is marked DC12–24V. However, the approved electrical ratings and supported configurations for 24V operation should be verified before installation.
The supplied product information specifies IP20. It should not be described as waterproof. Appropriate protection must be provided according to the intended installation environment.
Yes. Manufacturers can contact XINSHENGLU to discuss project specifications, lighting compatibility, connector requirements, and other integration needs.
Looking for a touchless lighting control solution for your LED mirror production?
Contact XINSHENGLU to discuss the SYK-23SS-02 hand-wave sensor switch for your LED mirror projects.
To help us recommend a suitable configuration, please share:
Required quantity
Single-color or CCT lighting version
LED strip operating voltage
Total LED lighting load
Required connector or wiring configuration
Any project-specific functional requirements
Request a quotation, ask about samples, or discuss your OEM/ODM project with our team.
