The XINSHENGLU SK-3C Dual-Button LED Mirror Touch Switch is designed for LED bathroom mirrors requiring separate lighting and defogger operation.
Featuring two touch buttons, the controller supports LED lighting on/off control, stepless dimming, and three color temperature modes for CCT configurations. Single-color and CCT versions are available, with DC 12V lighting options rated at 5A/60W or 6A/72W.
The standard module does not include a dedicated defogger connection cable. Customized connection solutions are available for compatible low-voltage defogger pads, while high-voltage defogger applications require a suitable external control circuit.
Key Features
Dual-button touch control for lighting and defogger functions
Stepless LED brightness adjustment
Single-color and CCT lighting options
DC 12V 5A/60W and 6A/72W lighting configurations
Customizable defogger connection solutions
Compact 97 × 41 × 9 mm controller housing
Suitable for LED bathroom mirror manufacturing and OEM/ODM projects
| Quantity: | |
|---|---|

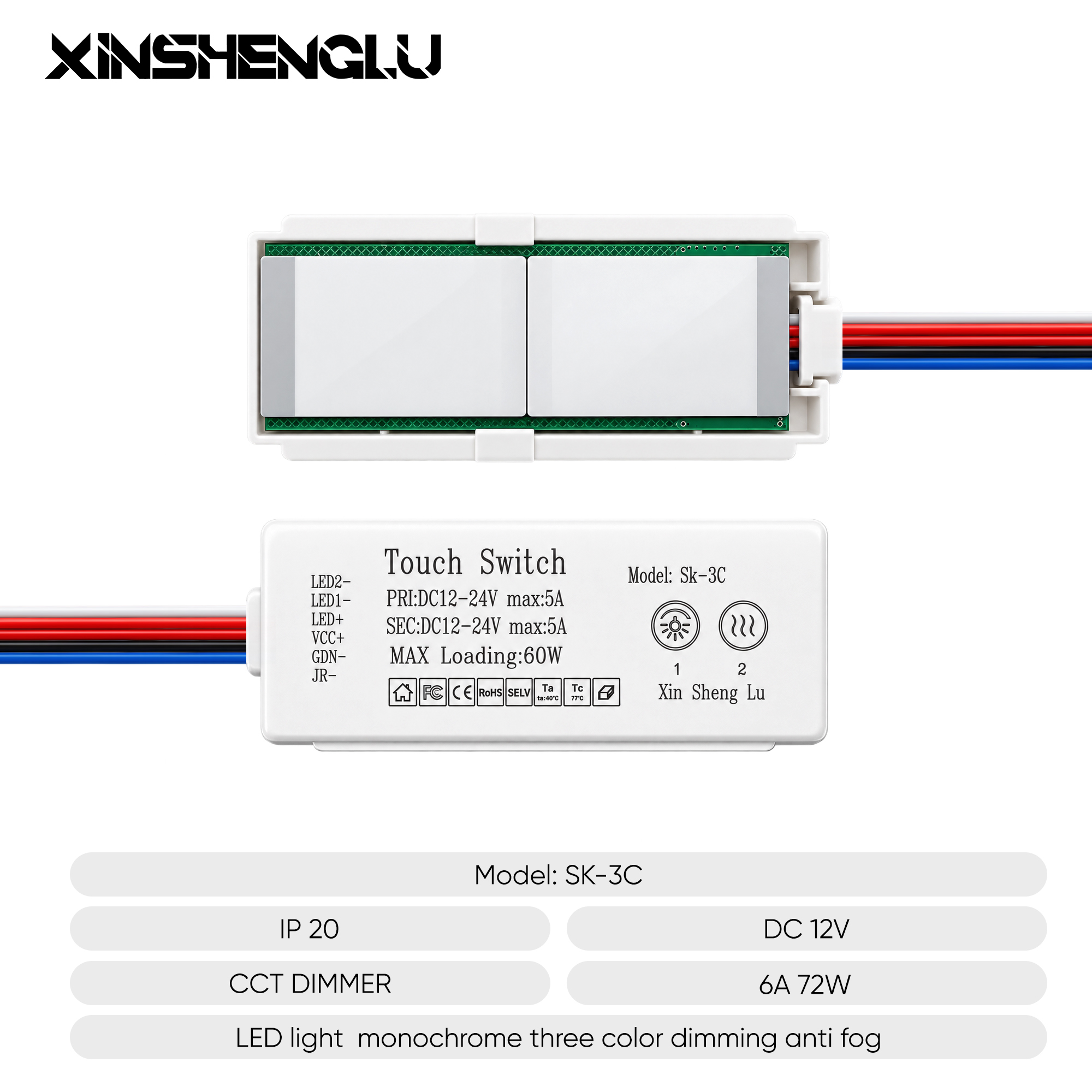

The XINSHENGLU SK-3C is a dual-button touch control module developed for LED bathroom mirrors and illuminated mirror applications.
Unlike a single-button controller that operates lighting and defogging together, the SK-3C uses two separate touch buttons to support independent operation of these functions when integrated with a compatible defogger control circuit.
The lighting controller provides convenient on/off operation, stepless brightness adjustment, and optional CCT color temperature selection.
With its compact structure and multiple lighting configurations, the SK-3C offers a practical control option for mirror manufacturers developing different product specifications.
The SK-3C features two touch-control positions designed for separate lighting and defogger functions.
The first button is used for LED lighting control, while the second button is intended for defogger operation through a compatible control configuration.
This allows manufacturers to design mirrors with separate lighting and anti-fog functions instead of combining both functions into a single switching operation.
The lighting control function supports smooth brightness adjustment.
Users can switch the LED lighting on or off and adjust brightness to suit different bathroom lighting requirements.
Stepless dimming provides more flexibility than fixed brightness settings.
The SK-3C is available in different LED lighting configurations.
Single-Color Version
Designed for compatible single-color LED strips, supporting lighting on/off control and stepless dimming.
CCT Version
Designed for compatible CCT LED strips, providing three selectable color temperature modes and brightness adjustment.
This gives mirror manufacturers flexibility when selecting LED strips for different mirror designs.
The SK-3C is designed to support separate defogger operation through an appropriately configured electrical control system.
The standard controller does not include a dedicated defogger connection cable.
For low-voltage defogger applications, customized connection arrangements can be developed according to the project's electrical requirements.
For high-voltage defogger applications, an appropriate power-control circuit or external relay solution is required.
The electrical control interface, switching method, and load compatibility must be verified before integration.

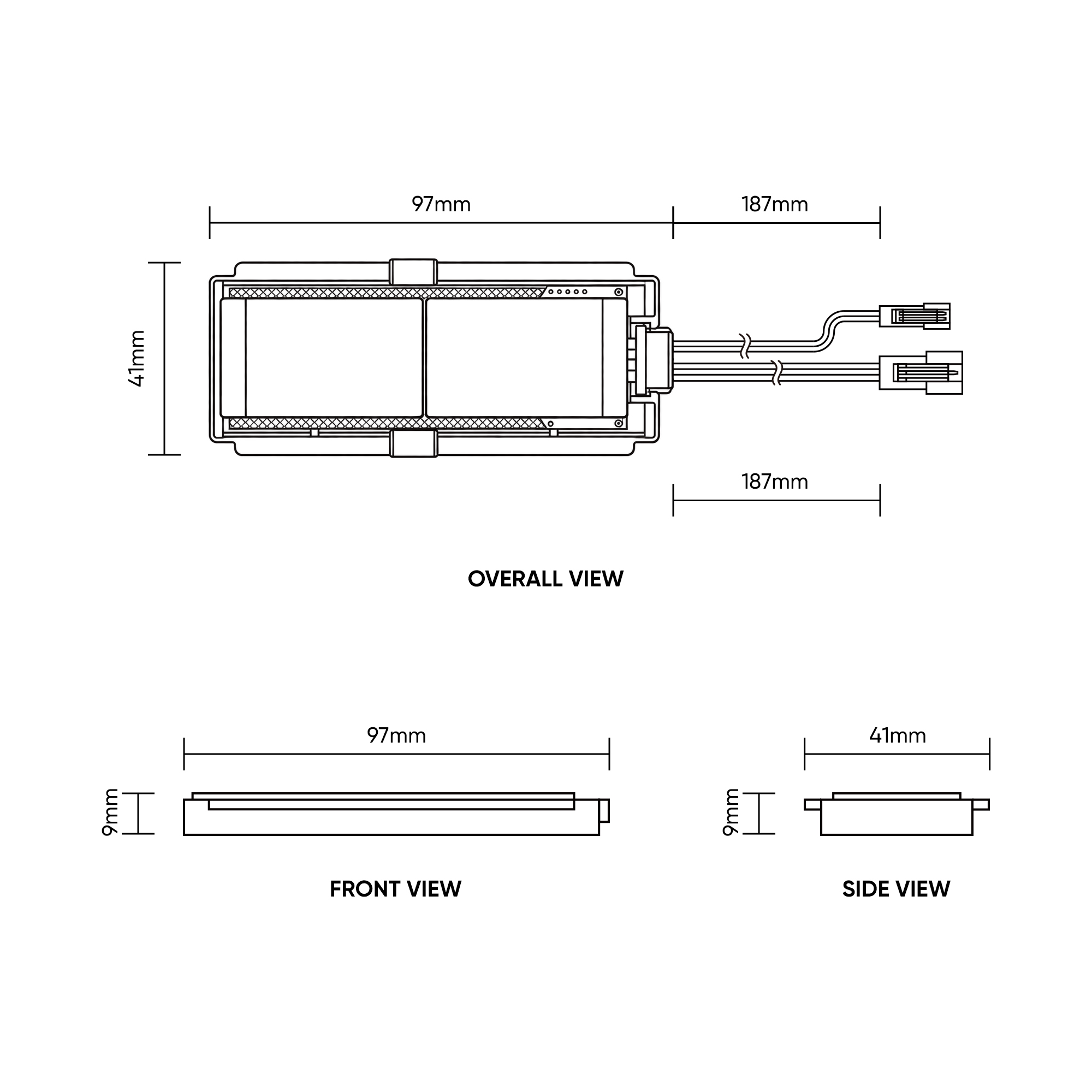

With a housing size of approximately 97 × 41 × 9 mm, the SK-3C is suitable for integration into compatible LED mirror assemblies.
Its compact form allows manufacturers to consider the controller when planning internal mirror component layouts.
Installation clearance, glass compatibility, and wiring arrangements should be confirmed for each mirror design.
Parameter | Specification |
|---|---|
Brand | XINSHENGLU |
Model | SK-3C |
Product Type | Dual-Button LED Mirror Touch Switch |
Control Method | Touch Control |
Touch Positions | 2 |
Lighting Operation | On/Off |
Brightness Control | Stepless Dimming |
LED Lighting Types | Single Color / CCT |
CCT Adjustment | Three Color Temperature Modes |
Listed SKU Voltage | DC 12V |
Listed LED Current Options | 5A / 6A |
Listed LED Power Options | 60W / 72W |
Housing Dimensions | 97 × 41 × 9 mm |
Protection Rating Shown | IP20 |
Defogger Function | Separate Control Configuration |
Standard Defogger Cable | Not Included |
Low-Voltage Defogger Connection | Customized Configuration Available |
High-Voltage Defogger Integration | Requires Compatible External Control Circuit |
Specification Note: Electrical ratings vary by configuration. The 6A/72W version and any DC24V operation require confirmation against the corresponding product specifications and labels.
The SK-3C is intended to provide two distinct user controls for an LED bathroom mirror.
Lighting Touch Button
The lighting button controls LED illumination. Depending on the selected version, the controller supports single-color dimming or CCT lighting adjustment.
Defogger Touch Button
The second button is intended for independent defogger control.
The switching interface and defogger wiring configuration depend on the selected electrical design.
For projects requiring direct low-voltage defogger connections or external high-voltage control, a matching customized circuit must be specified.
For mirrors using low-voltage defogger pads, XINSHENGLU can discuss customized defogger connection solutions.
The appropriate connection arrangement depends on the defogger pad voltage, rated power, and available controller outputs.
A dedicated low-voltage defogger connection is not included in the standard product configuration.
High-voltage defogger pads must be supplied through an appropriately rated AC electrical circuit.
Where independent switching is required, a compatible power-control solution or external relay circuit may be incorporated into the mirror's electrical design.
The SK-3C's low-voltage LED output must not be connected directly to a high-voltage defogger pad.
Any high-voltage switching arrangement requires verification of the control interface, electrical isolation, switching capacity, and applicable safety requirements.
The SK-3C is intended for manufacturers developing illuminated mirrors that require touch-based lighting control.
Typical applications include:
LED Bathroom Mirrors
Illuminated Vanity Mirrors
Smart Bathroom Mirror Assemblies
Mirrors with Independently Controlled Anti-Fog Functions
OEM/ODM LED Mirror Manufacturing Projects
The final controller configuration should be selected according to the LED strip type, rated load, and defogger electrical system.
Before integrating the SK-3C into a mirror assembly, manufacturers should confirm the following:
The controller voltage matches the selected LED power supply and LED strip.
The LED lighting load does not exceed the confirmed rating of the selected controller version.
Single-color or CCT output configuration matches the LED strip.
Any defogger control circuit uses a compatible switching interface.
High-voltage defogger wiring is electrically separated from unsuitable low-voltage outputs and installed according to the applicable safety requirements.
The controller dimensions and touch-sensing arrangement are suitable for the mirror assembly.
For customized defogger applications, an approved wiring diagram should be obtained before production.
XINSHENGLU provides LED mirror electronic components for manufacturers and B2B procurement projects.
For the SK-3C series, customization discussions can include:
Single-color or CCT lighting configurations
Compatible low-voltage defogger connections
Defogger control circuit integration
Matching LED controller and power supply configurations
Project-specific wiring and connector arrangements
Please provide your LED strip voltage, lighting load, defogger pad specifications, and intended control method when requesting a customized solution.
The SK-3C features two touch-control positions intended for separate lighting and defogger operation. Independent defogger switching requires a compatible electrical control configuration.
No. The standard controller does not include a dedicated defogger connection cable. Customized connection configurations can be discussed for suitable projects.
A customized low-voltage connection solution can be developed for compatible DC12V defogger pads. The pad's rated power and required switching arrangement must be confirmed.
An AC220V defogger pad may be incorporated into a compatible external power-control or relay-based design. It cannot be connected directly to the controller's low-voltage LED output. The complete control circuit requires engineering verification.
Yes. CCT configurations are listed among the available SK-3C lighting versions and provide three selectable color temperature modes.
The supplied product specifications list DC12V 5A/60W and DC12V 6A/72W lighting configurations. Final electrical ratings must be confirmed for the ordered version.
Yes. The SK-3C is intended for integration into compatible LED mirror assemblies. Wiring, component compatibility, and project-specific customization requirements should be confirmed before production.
