The XINSHENGLU 12V LED Mirror Touch Sensor Switch is designed for LED bathroom mirrors, offering reliable ON/OFF control and smooth, stepless dimming.
Available in 5A 60W and 6A 72W options, it provides higher load capacity than common 3A 36W entry-level switches.
Built with an emphasis on component quality and durable construction, this touch switch is a practical choice for LED mirror manufacturers seeking consistent quality and long-term reliability.
Key Features:
DC 12V operation
5A / 60W and 6A / 72W options
Touch ON/OFF control
Smooth, stepless LED dimming
Single-color and CCT options, depending on model
Compact design for LED mirror integration
Quality-focused construction for professional applications
| Quantity: | |
|---|---|
The XINSHENGLU LED Mirror Touch Sensor Switch is developed for LED bathroom mirror lighting applications. It combines simple touch operation with smooth, stepless dimming in a compact control module designed for mirror integration.
Available in DC 12V 5A 60W and 6A 72W versions, this switch offers flexible load capacity for different LED mirror lighting configurations.
For professional mirror manufacturers, selecting the right electronic components is an important part of delivering consistent finished-product quality.
Not all LED mirror touch switches are built to the same standard.
Many entry-level switches on the market are rated at 3A 36W, providing basic lighting control at a low initial purchase cost. However, price alone does not reflect differences in component selection, construction quality, or load capacity.
Our touch sensor switch is developed with an emphasis on robust construction and reliable electronic components.
For LED mirror manufacturers, choosing a quality-focused switch can be an important step toward reducing the risk of component-related after-sales issues and maintaining consistent product quality.
A quality component is not simply a purchasing cost — it is part of the overall value of the finished mirror.
Compared with common 3A 36W entry-level touch switches, our 5A and 6A versions provide higher rated load capacity.
This gives mirror manufacturers more flexibility when selecting compatible LED lighting configurations.
Choose the appropriate version according to your LED strip's total power consumption and the electrical requirements of your mirror.
The touch sensor supports convenient lighting control:
Short touch: Turn the LED lighting ON or OFF.
Long touch: Adjust the brightness smoothly.
Stepless dimming allows users to select their preferred brightness rather than relying only on fixed brightness levels.
Different control versions are available for compatible LED lighting systems.
Single-Color LED Control
Switch the LED lighting ON or OFF and adjust brightness continuously.
CCT LED Control
Compatible CCT control versions support adjustable white lighting, allowing suitable LED strips to operate across different color-temperature settings.
Select the correct controller version based on the LED strip configuration.
The electronic controller is an essential component of an illuminated mirror.
XINSHENGLU places emphasis on material selection, construction quality, and practical performance requirements rather than competing solely on the lowest component price.
Our goal is to offer mirror manufacturers a dependable touch control solution for their production needs.
The compact sensor module is designed for integration into LED mirror assemblies.
Its small form factor and connected wiring provide a practical solution for mirror manufacturers incorporating touch-operated LED lighting into their products.
The product is suitable for manufacturers and suppliers producing:
LED bathroom mirrors
Illuminated vanity mirrors
Decorative LED mirrors
LED mirrors for hotels and hospitality projects
Custom mirror lighting products
OEM and ODM project inquiries are welcome.

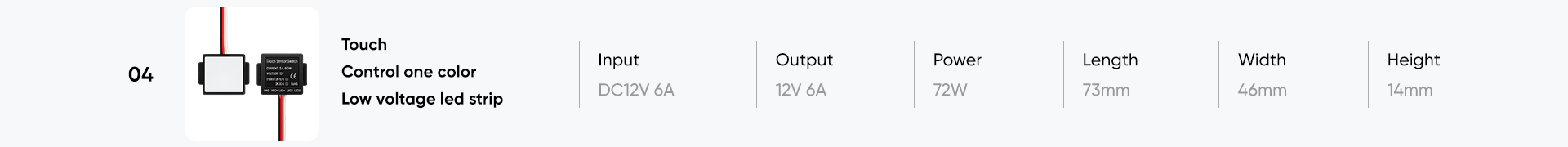

Specification | Details |
|---|---|

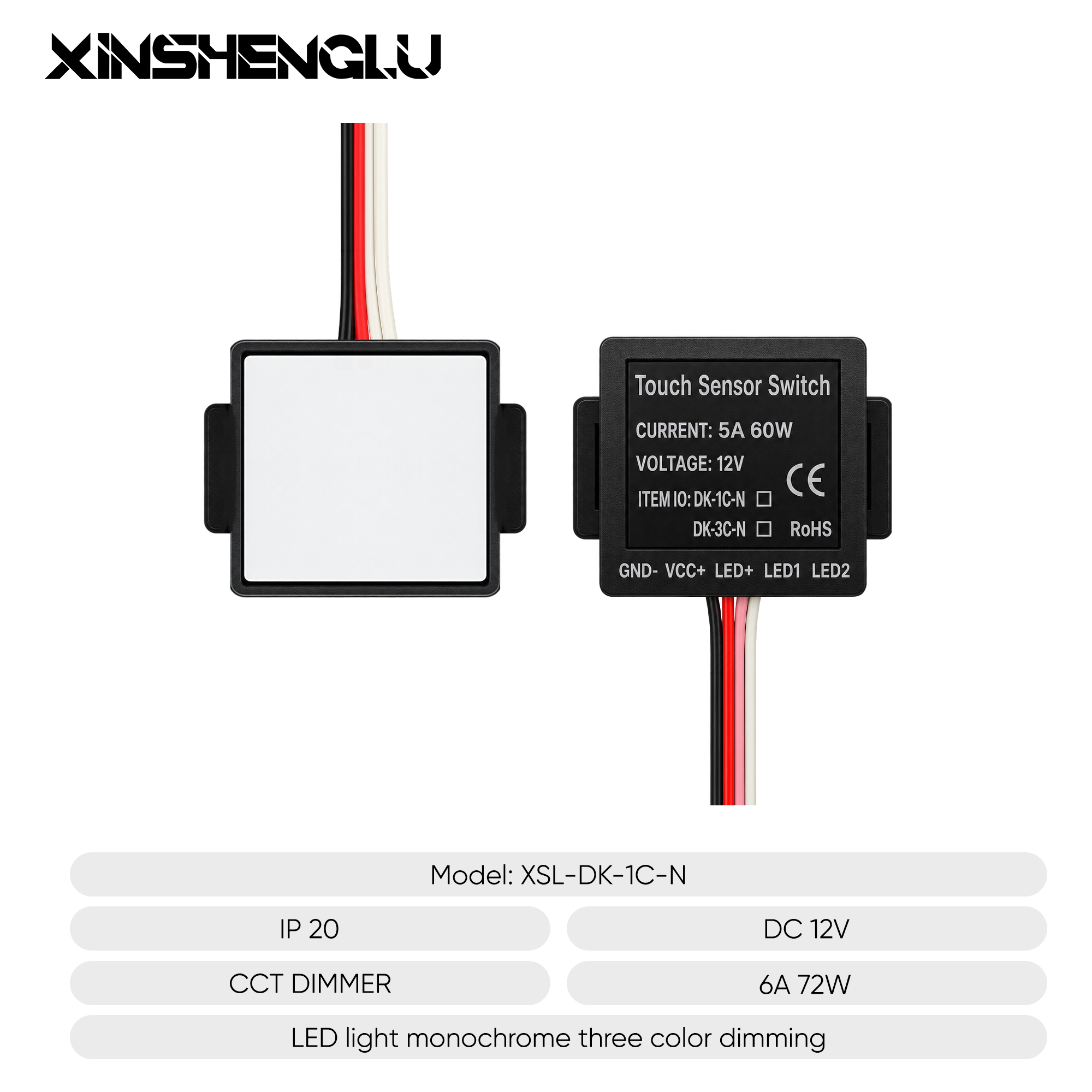

Product Type | LED Mirror Touch Sensor Switch |
Brand | XINSHENGLU |
Product Series | XSL-DK-N |
Reference Model | XSL-DK-1C-N |
Operating Voltage | DC 12V |
Rated Current Options | 5A / 6A |
Maximum Rated Load | 60W / 72W at DC 12V |
Control Functions | Touch ON/OFF, Stepless Dimming |
LED Control Options | Single-Color / CCT (model-dependent) |
Protection Rating | IP20 |

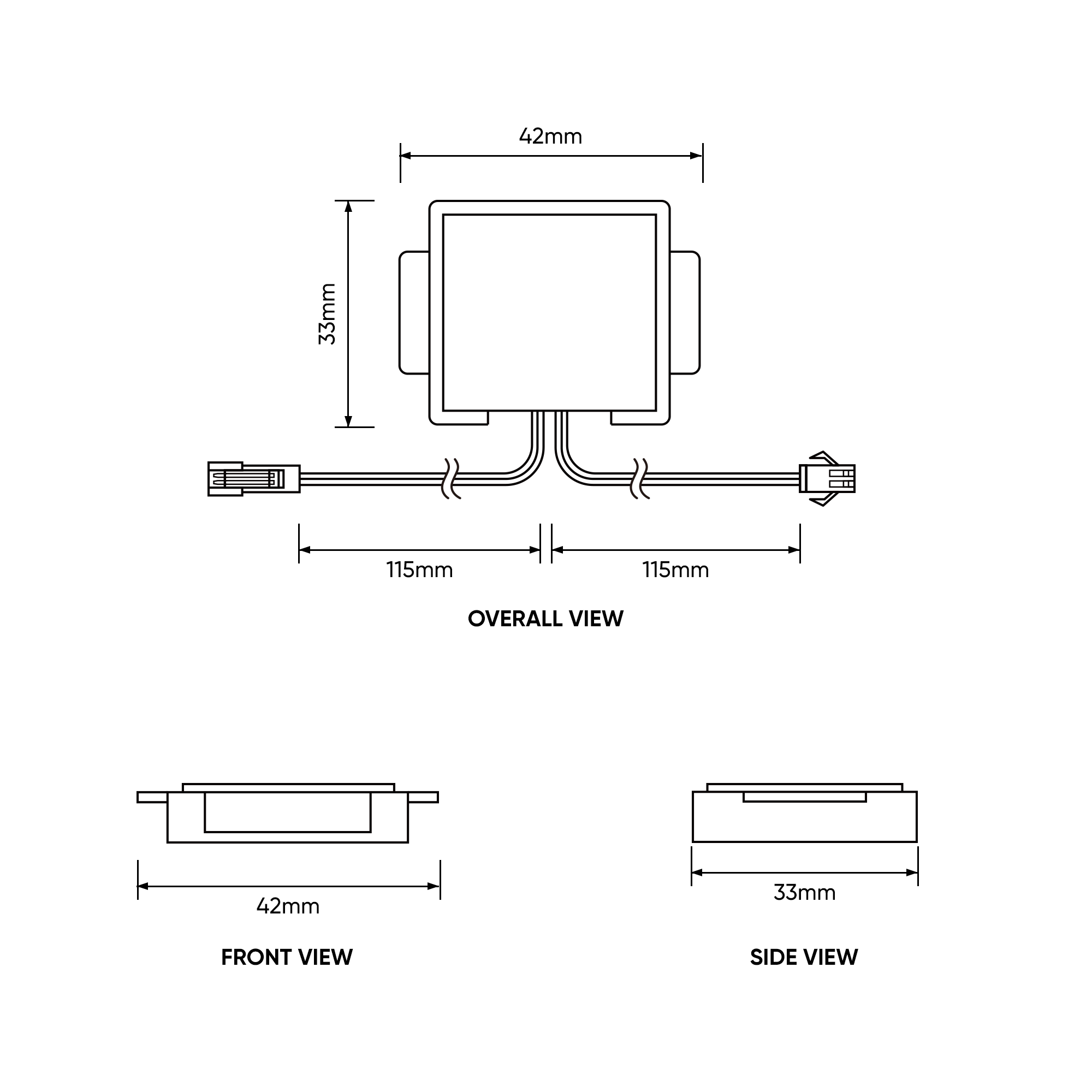

Dimensions | 42 mm overall width × 33 mm height, as illustrated |
Wire Length | Approx. 115 mm per side, as illustrated |
Main Application | LED Bathroom Mirror Lighting |
Select the correct model, current rating, and LED control version for your application. Dimensions and wiring configurations should be confirmed against the selected SKU before production.
When designing an LED mirror, manufacturers must consider the power requirements of the LED strip and the electrical ratings of the lighting controller.
For example, a DC 12V LED lighting system rated at 48W draws approximately 4A under its nominal operating conditions.
A 3A controller rated at 36W would be undersized for this load, while a correctly specified 5A or 6A controller provides the required rated capacity.
Using a controller within its specified operating limits is essential for appropriate system design.
Higher current ratings do not automatically guarantee longer service life, but they allow manufacturers to select a suitable controller for higher-power lighting applications.
At DC 12V, a 3A switch has a rated load of 36W, while a 5A switch has a rated load of 60W. The correct selection depends on the total power requirements of the LED strip and the system design.
Yes. The product is available with 5A 60W and 6A 72W rated load options at DC 12V.
Yes. It supports touch ON/OFF operation and stepless brightness adjustment for compatible LED lighting systems.
CCT-compatible versions are available. The controller must match the LED strip's wiring configuration and control requirements.
This product listing covers DC 12V specifications. Please confirm any alternative voltage requirements with our sales team before ordering.
The specified protection rating is IP20. It is intended for a suitably protected installation and should not be exposed directly to water or condensation.
Yes. Mirror manufacturers and other B2B buyers can contact our team to discuss product selection and project requirements.
