The XINSHENGLU IP20 12V LED Power Supply converts AC 100–265V input into DC 12V output for compatible low-voltage LED lighting applications.
Available in 12W, 24W, 36W, 48W, and 60W, this compact power supply is designed for integration into LED bathroom mirrors, mirror cabinets, wardrobes, and furniture lighting systems.
With multiple plug and output connector options, it supports different installation requirements and OEM/ODM projects.
Key Features:
AC 100–265V Input / DC 12V Output
Five Power Options: 12W–60W
Compact Housing for Integrated Installation
IP20 Protection Rating
Customizable Power Plugs and Output Connectors
Suitable for LED Mirror and Cabinet Lighting Applications
| Quantity: | |
|---|---|
The XINSHENGLU 12V LED Power Supply is an AC-to-DC power conversion unit designed for compatible low-voltage LED lighting systems.
With an AC 100–265V input and DC 12V output, it provides a power source for LED bathroom mirrors, mirror cabinets, furniture lighting, and other indoor LED applications.
The product range includes five rated output options: 12W, 24W, 36W, 48W, and 60W, allowing manufacturers to select an appropriate power supply according to the electrical requirements of their lighting systems.
Its compact housing makes it suitable for integration into space-limited lighting assemblies, while customizable power plugs and output connectors offer flexibility for different OEM/ODM projects.
The power supply converts AC mains input into DC 12V output for compatible LED lighting products.
It is designed to provide the required low-voltage power source for lighting systems that operate on DC 12V.
Benefits for manufacturers:
Supports integration with compatible 12V LED lighting systems
Provides a separate AC-to-DC power conversion unit
Can be incorporated into different lighting assembly designs
Different LED lighting products have different power requirements.
XINSHENGLU offers five output options to support a range of lighting applications:
DC 12V 1A – 12W
DC 12V 2A – 24W
DC 12V 3A – 36W
DC 12V 4A – 48W
DC 12V 5A – 60W
Manufacturers can select a suitable version based on the total power consumption of their LED lighting components, with an appropriate operating margin.
This range is useful for manufacturers producing multiple mirror or cabinet lighting models with different lighting loads.
Space is an important consideration in LED mirror and furniture lighting manufacturing.
The compact housing allows the power supply to be incorporated into suitable protected spaces behind mirrors, inside lighting compartments, or within furniture assemblies.

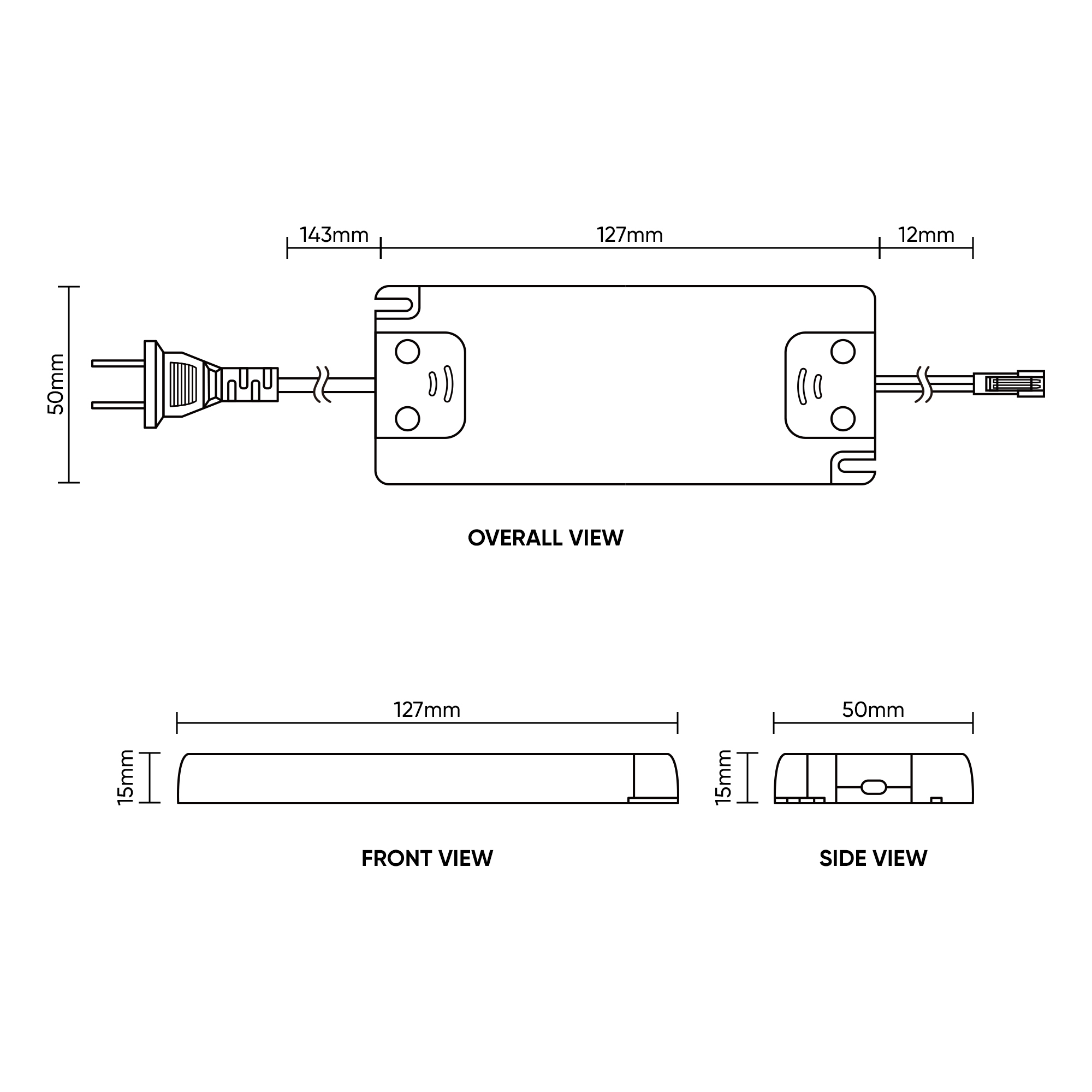

Depending on the selected version, the housing dimensions range from 100 × 46 × 15 mm to 160 × 58 × 18 mm.
The different housing sizes give manufacturers additional flexibility when planning the internal layout of their products.

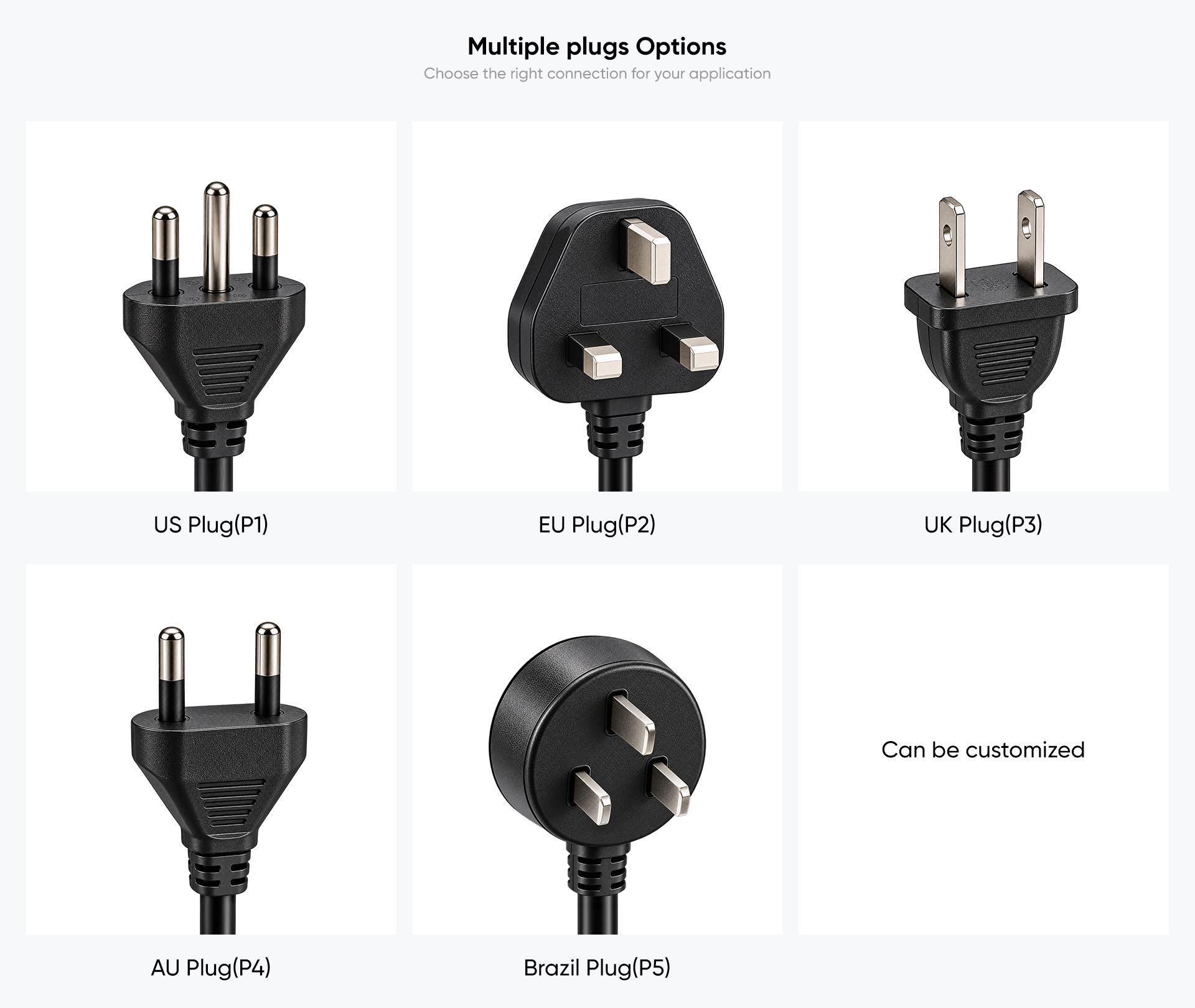

Different countries and projects may require different mains plug configurations.
XINSHENGLU offers customizable plug options to support the requirements of various export markets.
Manufacturers can discuss the appropriate plug configuration, cable requirements, and electrical specifications before ordering.
Plug selection must match the destination country's applicable electrical and safety requirements.

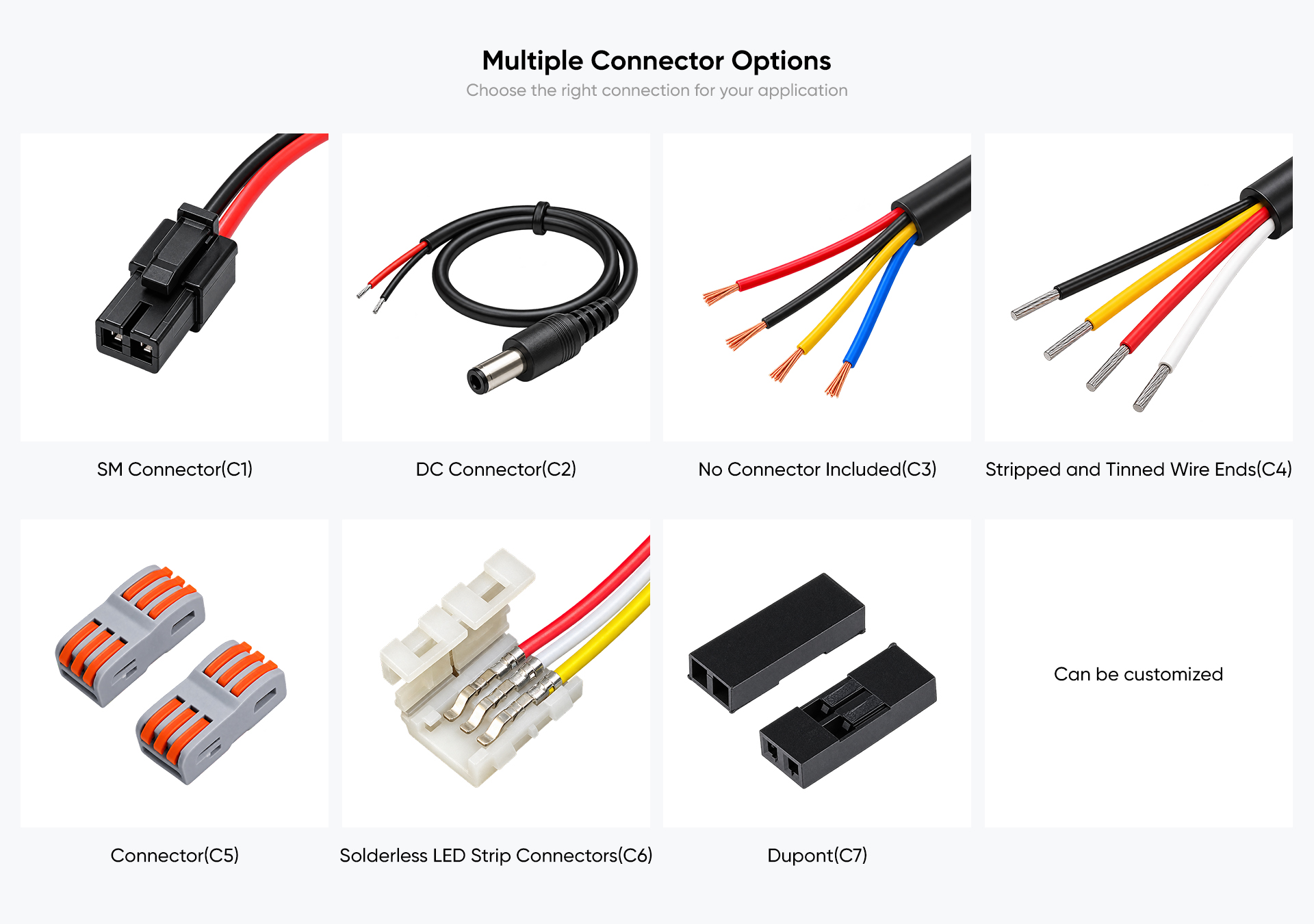

Output connector selection plays an important role in manufacturing efficiency and compatibility.
Depending on the project, different connector or wire termination options may be available, including:
SM-style connectors
DC barrel connectors
Bare wire ends
Stripped or tinned wire ends
Terminal connector solutions
Customized connector assemblies
Connector availability, polarity, current capacity, pin configuration, and compatibility must be confirmed for each power supply version.
The XINSHENGLU 12V LED Power Supply has an IP20 protection rating.
It is intended for suitable indoor installations where the power supply is protected from water exposure and the installation conditions meet the applicable electrical safety requirements.
For bathroom mirror applications, the power supply must be installed in an appropriately protected, dry location and must not be exposed directly to water splashes or condensation.
IP20 does not indicate waterproof or water-resistant performance.
The power supply converts AC mains electricity into DC 12V electrical output.
The basic power conversion process is:
AC 100–265V Mains Input → 12V LED Power Supply → DC 12V LED Lighting Load
The AC input connects to a compatible mains power source, while the DC output supplies the connected low-voltage LED lighting system.
A suitable power supply must be selected according to the required output voltage, current, total load, and installation conditions.
No. This product is a power supply, not an LED lighting controller.
It does not include built-in dimming, color temperature adjustment, or CCT switching functions.
For lighting projects requiring dimming or color temperature control, an appropriate external LED controller is necessary.
Any external controller must be electrically compatible with the selected power supply and LED lighting load.
Parameter | Specification |
|---|---|
Brand | XINSHENGLU |
Product Type | AC to DC LED Power Supply |
Rated Input Voltage | AC 100–265V |
Frequency | 50/60Hz |
Rated Output Voltage | DC 12V |
Output Current Options | 1A / 2A / 3A / 4A / 5A |
Rated Output Power | 12W / 24W / 36W / 48W / 60W |
Protection Rating | IP20 |
Housing Design | Compact Rectangular Housing |
Integrated Dimming Control | No |
Integrated CCT Control | No |
Input Plug | Configuration Options Available |
Output Connection | Connector and Wire Options Available |
Main Applications | LED Mirrors, Cabinet Lighting, Furniture Lighting |
Specifications, connector configurations, and electrical details should be verified against the selected model before production.
Output Voltage | Current | Rated Power | Housing Dimensions |
|---|---|---|---|

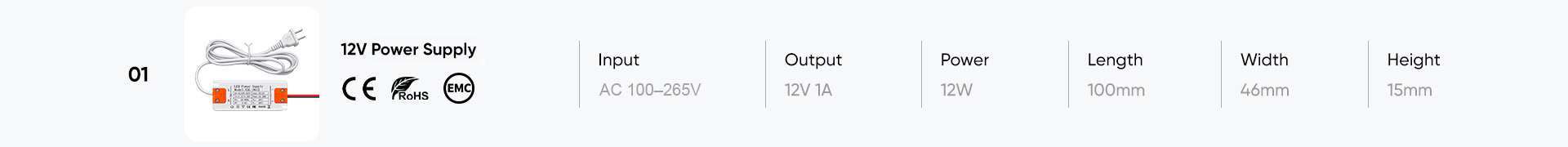

DC 12V | 1A | 12W | 100 × 46 × 15 mm |
DC 12V | 2A | 24W | 100 × 46 × 15 mm |
DC 12V | 3A | 36W | 127 × 50 × 15 mm |
DC 12V | 4A | 48W | 127 × 50 × 15 mm |

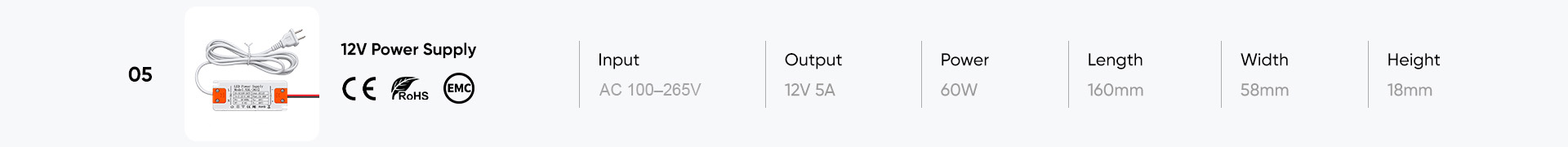

DC 12V | 5A | 60W | 160 × 58 × 18 mm |

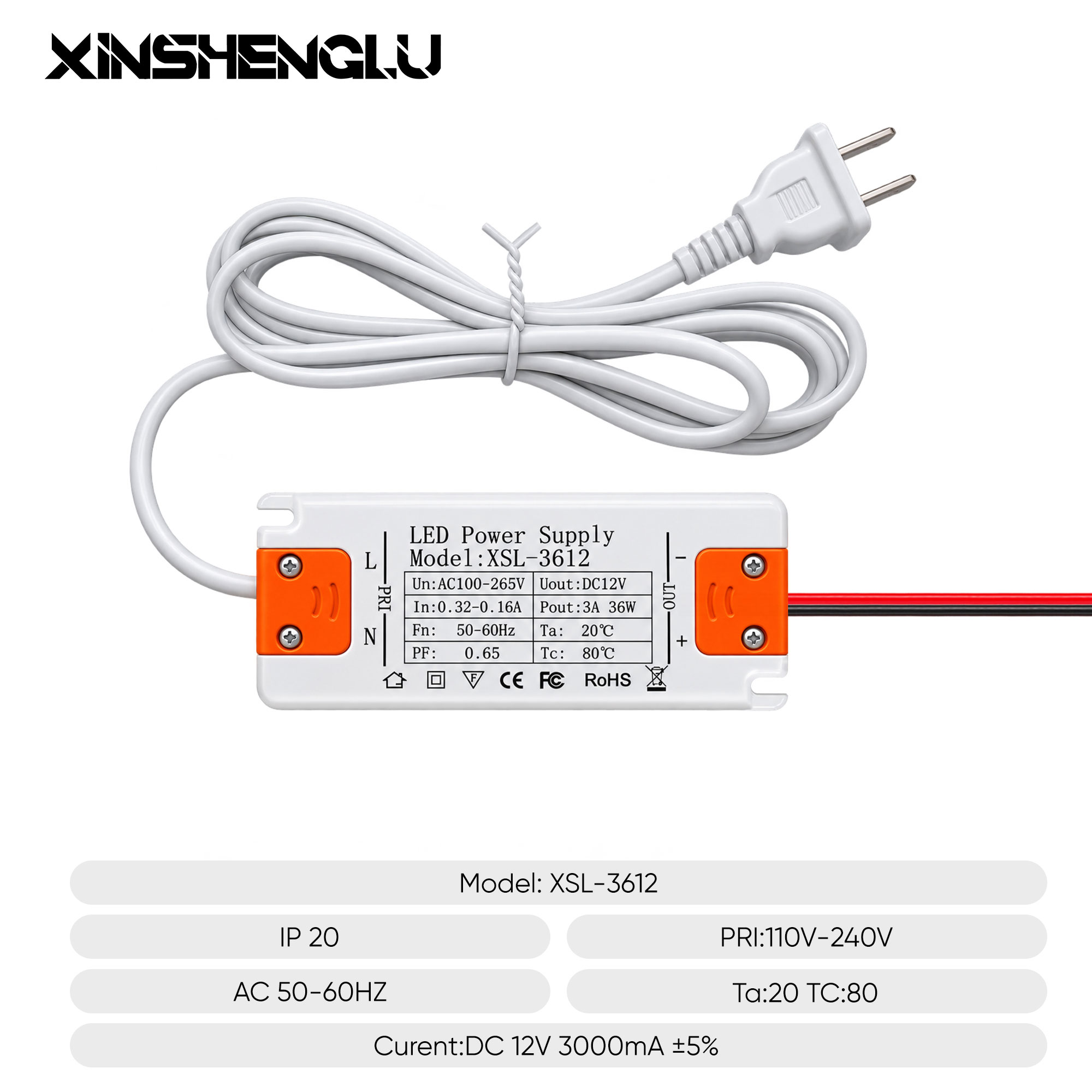

The XSL-3612 is the 12V 3A / 36W model shown in the product photographs.
Please confirm the required power rating, dimensions, input cable, plug type, and output connection when selecting a model.

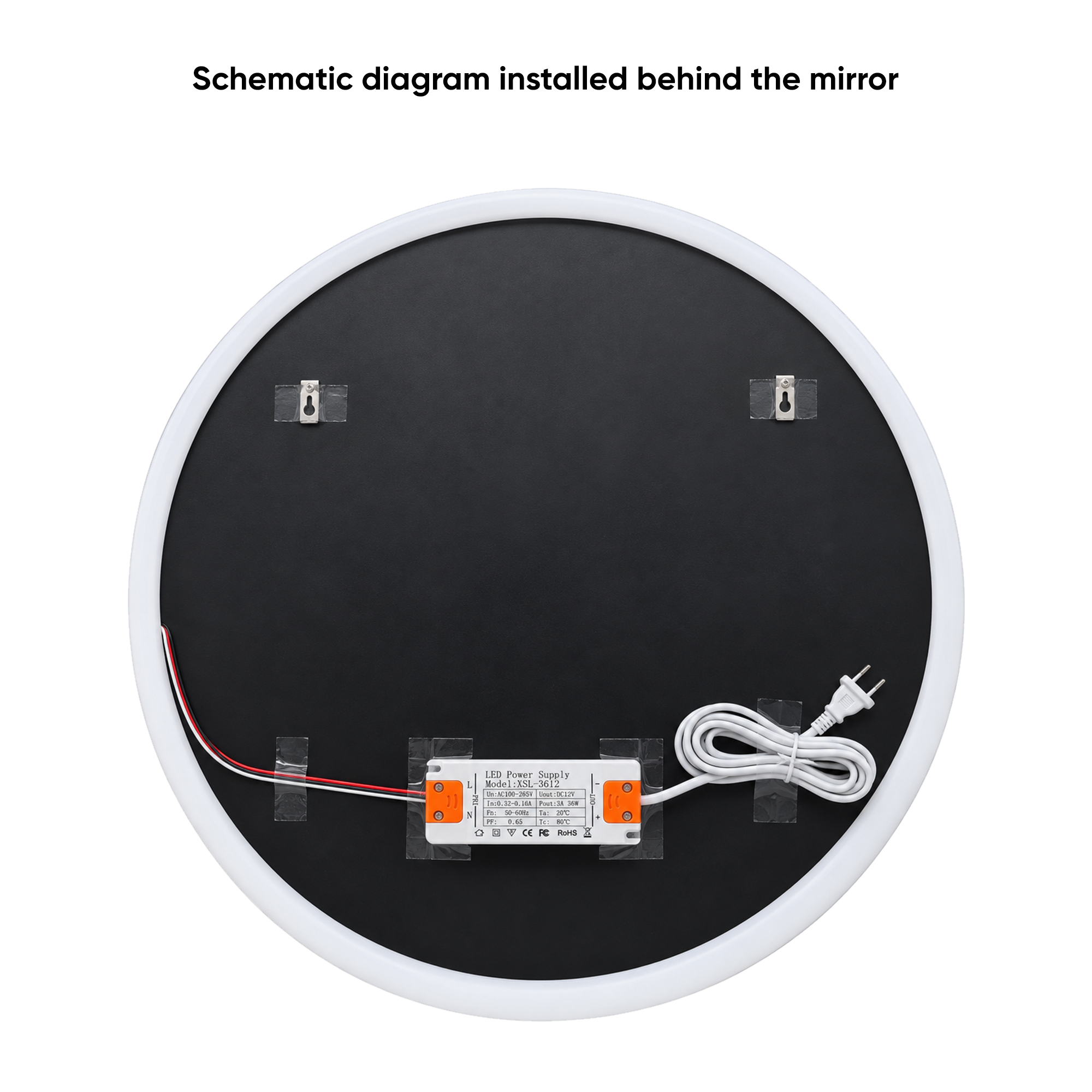

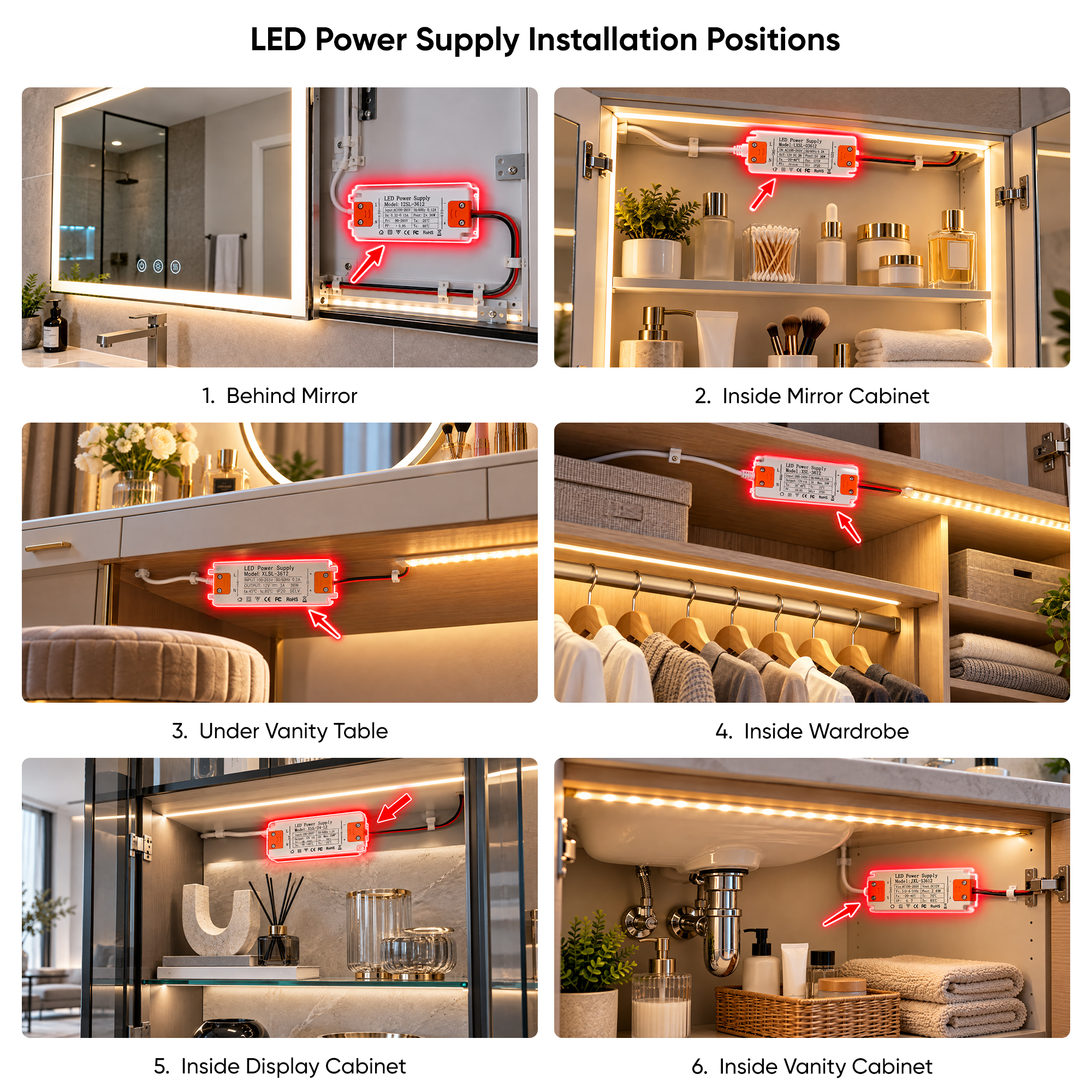

Suitable for supplying DC 12V power to compatible LED mirror lighting systems.
The power supply can be integrated into an appropriately protected space behind the mirror, subject to installation conditions and electrical safety requirements.
Can be incorporated into suitable mirror cabinet lighting assemblies to power compatible low-voltage LED lighting.
This application is relevant to bathroom mirror cabinet manufacturers requiring a separate power conversion unit.
A possible power supply solution for compatible 12V LED lighting installed under vanity tables or within protected furniture lighting compartments.
Suitable for integration into dry, protected wardrobe lighting assemblies using DC 12V LED strips or other compatible 12V LED lighting components.
Can supply power to compatible LED lighting installed inside display cabinets, helping manufacturers integrate low-voltage lighting into their furniture designs.
Can be used in suitably protected compartments within vanity furniture, provided that the power supply is kept away from water exposure and the installation complies with applicable electrical requirements.
This series provides DC 12V output.
Before installation, confirm that the connected LED lighting system is designed to operate on DC 12V.
Do not directly connect this power supply to LED products requiring a different voltage.
Calculate the total electrical load of the connected LED lighting components before selecting the power supply.
For example, a 12V LED lighting system with a total rated load of 30W requires a power supply capable of delivering more than 30W under the intended operating conditions.
The 12V 3A / 36W version may be considered for such a load, subject to the manufacturer's operating limits and the required design margin.
The selected power supply should not be operated beyond its rated electrical capacity.
Confirm that the selected housing dimensions are compatible with the available installation space.
Install the power supply securely and provide appropriate clearance and ventilation according to the applicable installation instructions.
Avoid locations where excessive heat may accumulate.
IP20 is not a waterproof rating.
For bathroom-related applications, use a protected installation location that prevents exposure to splashing water, condensation, and other unsuitable environmental conditions.
Check mains plug type, output polarity, connector current rating, cable configuration, and electrical compatibility before production.
Connection arrangements should be confirmed with the supplier's technical team.
Electrical installation must be performed according to applicable local regulations and safety requirements.
AC to DC 12V power conversion
IP20 housing protection
Multiple rated output power options
Compact rectangular housing
Separate mains input and low-voltage output connections
Depending on project requirements, XINSHENGLU can discuss the following configurations:
Mains plug selection
Input cable configuration
Output connector selection
Output cable termination
Cable length requirements
Project-specific connection assemblies
All customized configurations are subject to technical evaluation and production confirmation.
XINSHENGLU supplies electronic accessories for LED bathroom mirrors, mirror cabinets, and furniture lighting applications.
For manufacturing customers, selecting the correct power supply involves more than choosing the required wattage.
Electrical compatibility, physical dimensions, plug configuration, cable routing, and assembly requirements can all influence the finished product design.
Our team can work with manufacturers to review the required power rating, connection configuration, and product integration requirements.
Whether you are developing a new LED mirror model or sourcing power supplies for existing furniture lighting production, we can help you discuss an appropriate 12V power supply configuration.
A 12V LED power supply converts AC mains electricity into DC 12V power.
An LED controller manages lighting functions such as switching, dimming, or color temperature adjustment.
This XINSHENGLU product is a power supply and does not contain integrated dimming or CCT control functions.
Yes, it can supply DC 12V power to compatible LED mirror lighting systems.
However, because it has an IP20 rating, the installation must provide suitable protection against water exposure, condensation, and other environmental hazards.
First, determine the total power consumption of the LED lighting system.
Then select a compatible DC 12V power supply with sufficient rated output capacity and an appropriate design margin.
Other considerations include dimensions, operating conditions, and installation requirements.
Yes, it can be used with compatible DC 12V LED strip lighting systems, provided that the electrical load remains within the selected power supply's rated capacity.
It should not be directly connected to mains-voltage LED strips.
No. This series has an IP20 rating and must not be described as waterproof.
It is intended for protected installations with suitable environmental conditions.
Different mains plug configurations can be discussed according to the destination market and project requirements.
The selected configuration must be verified for electrical compatibility and applicable market requirements.
Output connector and wire termination options can be discussed for OEM/ODM projects.
Connector type, pin count, polarity, and current capacity must be checked before confirming the final configuration.
It may be used as the DC 12V power source in a system that includes a compatible external LED controller.
However, this power supply does not provide dimming functions by itself.
The external controller, power supply, and LED load must be compatible.
It can be incorporated into a suitably designed and protected cabinet lighting compartment.
The installation must account for electrical safety, environmental conditions, clearance, and thermal management.
Please contact XINSHENGLU with your required output power, input voltage, plug type, connector configuration, and intended application.
Our team can review the specifications and discuss available product options.
Looking for a 12V LED power supply for your LED mirror or cabinet lighting production?
XINSHENGLU offers multiple power options and customizable connection configurations for manufacturing projects.
Contact us to discuss:
Required power rating: 12W / 24W / 36W / 48W / 60W
Destination market and mains plug type
Output connector and cable requirements
Installation space and application
Sample and bulk order requirements
Contact XINSHENGLU to request product specifications, discuss your project, or receive a quotation.
