The XINSHENGLU XSL-GTSS Cabinet LED Hand Wave Sensor Switch is a compact, touchless lighting controller designed for LED cabinet and furniture lighting applications.
Simply wave your hand near the sensor to control the lighting, or hold your hand within the sensing area for stepless dimming.
Available in Single-Color and CCT versions, the XSL-GTSS provides flexible lighting control for display cabinets, bathroom mirror cabinets, wardrobes, and other compatible LED lighting installations.
Key Features:
Touchless hand-wave lighting control
Stepless brightness adjustment
Single-color and CCT versions available
Compact 17 mm sensor head
DC 12V operation
Mounting bracket for cabinet installation
| Quantity: | |
|---|---|
The XINSHENGLU XSL-GTSS Cabinet LED Hand Wave Sensor Switch is designed to provide convenient, touchless control for low-voltage LED cabinet lighting systems.
Unlike conventional mechanical switches that require physical contact, the XSL-GTSS allows users to operate LED lighting through simple hand gestures near the sensor.
Its compact cylindrical sensor head and separate mounting bracket make it suitable for integration into furniture lighting designs where convenient operation and a discreet appearance are important.
Available in two functional versions—Single-Color and CCT—the XSL-GTSS is suitable for lighting manufacturers, furniture manufacturers, and cabinet lighting projects requiring different lighting control functions.
Operate cabinet lighting without pressing a physical button.
The hand-wave sensing function provides a convenient control method for LED lights installed inside cabinets, beneath shelves, or under bathroom mirror cabinets.
This design is particularly useful in furniture applications where users prefer a discreet alternative to conventional wall-mounted or mechanical switches.
The XSL-GTSS supports brightness adjustment through hand presence.
By keeping a hand within the sensor's operating area, users can adjust the brightness of compatible LED lighting rather than being limited to fixed brightness settings.
This function is useful for display cabinets and decorative furniture lighting where different brightness levels may be required.
Two functional versions are available to support different LED lighting requirements.
Single-Color Version
Designed for compatible single-color LED strips, providing hand-wave lighting control and stepless dimming.
CCT Version
Designed for compatible tunable-white LED lighting systems, providing hand-wave control, stepless dimming, and color temperature selection through additional hand-wave gestures.
Manufacturers can select the appropriate version based on the LED strip type and required lighting functions.

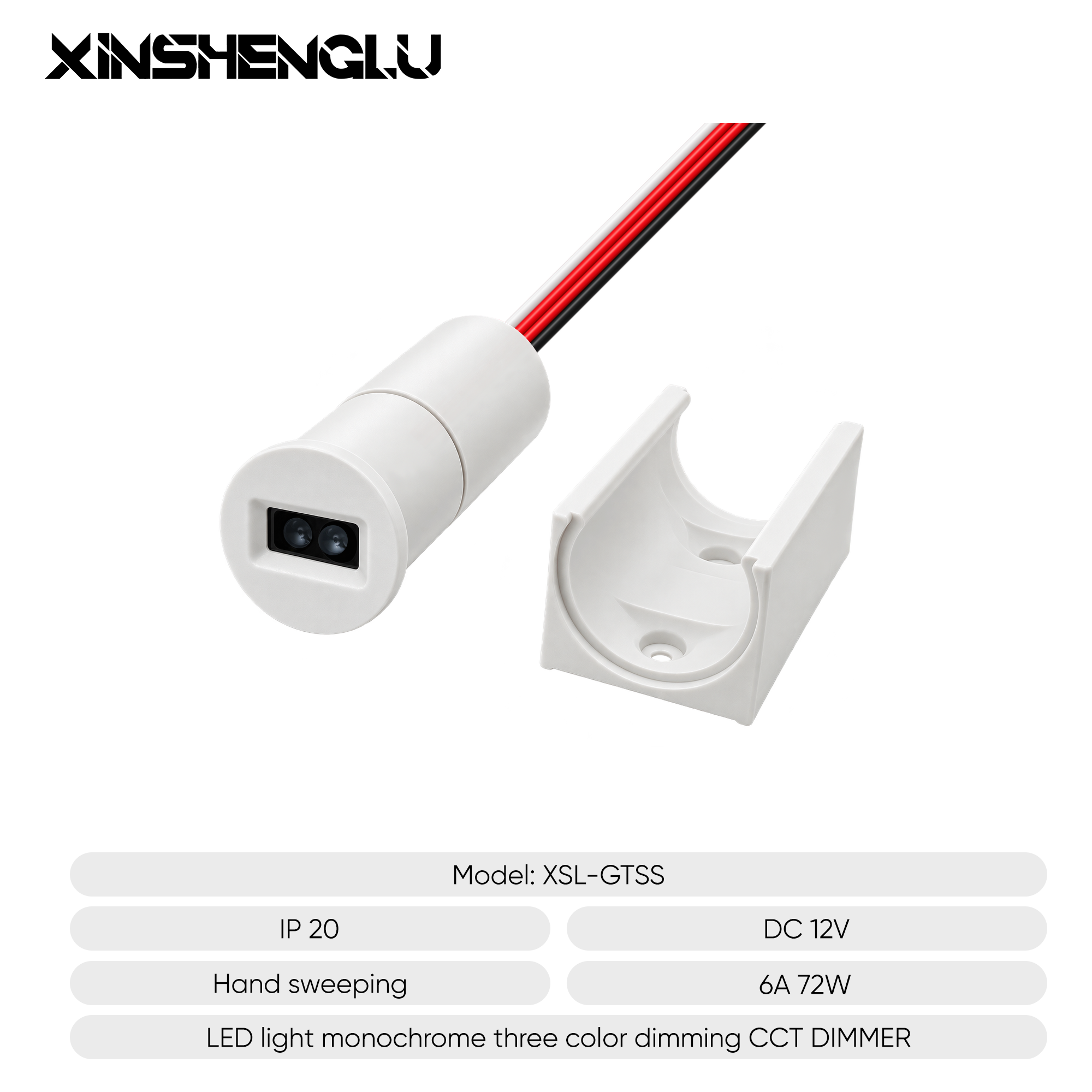

The XSL-GTSS features a compact cylindrical sensor head with a diameter of approximately 17 mm.
Its small size makes it suitable for integration into cabinet structures and furniture lighting installations where installation space is limited.
The sensor is supplied with a matching mounting bracket designed to accommodate its cylindrical body.
The bracket allows manufacturers to position and secure the sensor at a suitable location within the cabinet structure.
Installation position should be selected to keep the sensing window accessible and unobstructed.
The XSL-GTSS uses a non-contact hand-sensing interface to control compatible LED lighting.
Hand-Wave Lighting Control
Move your hand near the sensor to operate the connected LED lighting without touching a mechanical switch.
Stepless Brightness Adjustment
Keep your hand within the sensing area to adjust the light brightness.
CCT Color Temperature Selection
On the CCT version, additional hand-wave gestures allow users to change the selected color temperature.
The exact switching sequence should be confirmed for the selected controller version during product integration.
Parameter | Specification |
|---|---|
Brand | XINSHENGLU |
Model | XSL-GTSS |
Product Type | Cabinet LED Hand Wave Sensor Switch |
Operating Voltage | DC 12V |
Rated Capacity Shown in Product Artwork | 6A / 72W |
Control Method | Hand-Wave Sensing |
Dimming Function | Stepless Dimming |
Available Versions | Single-Color / CCT |
Protection Designation | IP20 |

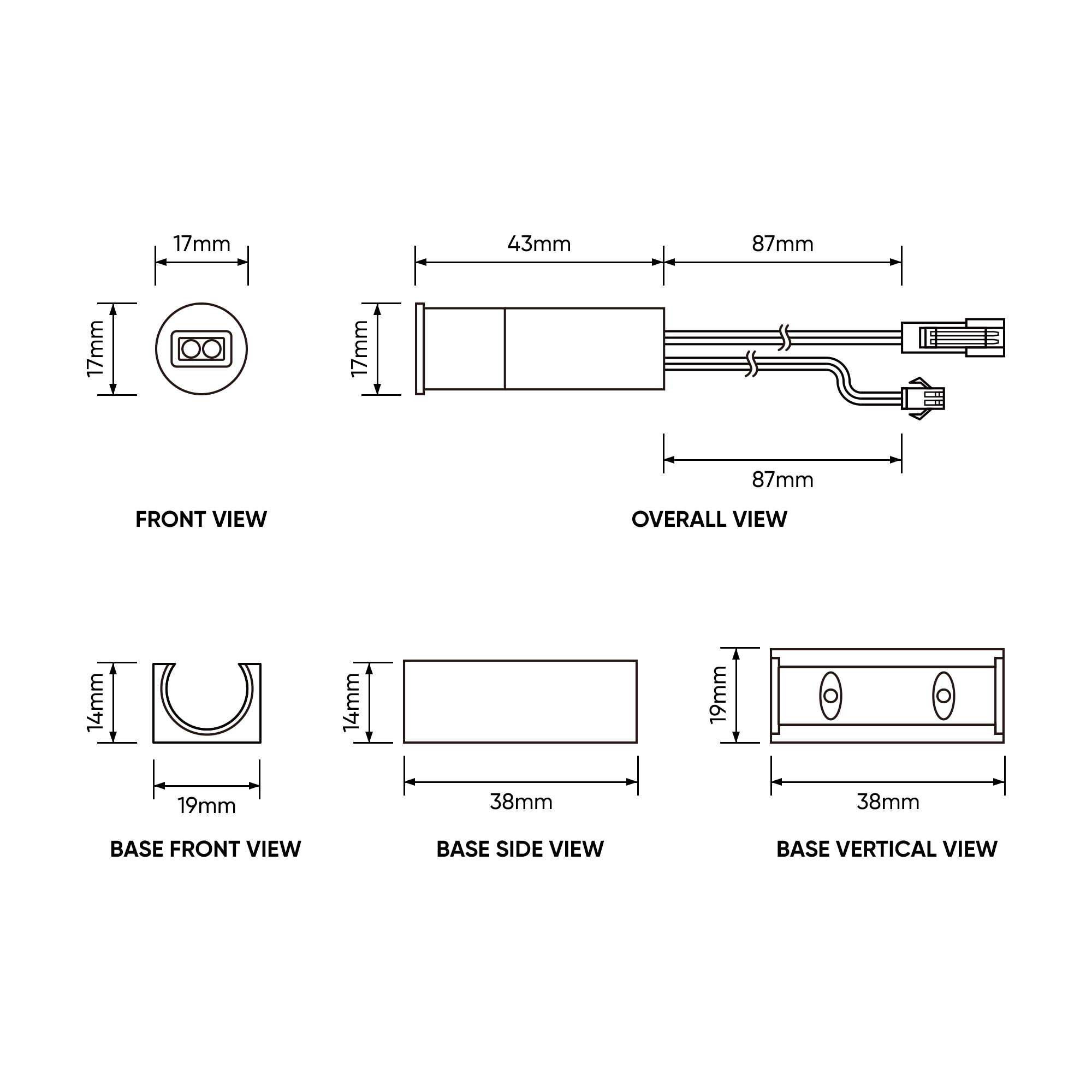

Sensor Head Diameter | 17 mm |
Sensor Body Length | 43 mm |
Mounting Bracket Dimensions | 38 × 19 × 14 mm |
Main Applications | Cabinet and Furniture LED Lighting |
Specification Note: The 6A / 72W rating is indicated in the supplied XSL-GTSS series artwork. Confirm the electrical rating, wiring configuration, and LED compatibility of the selected version before production.

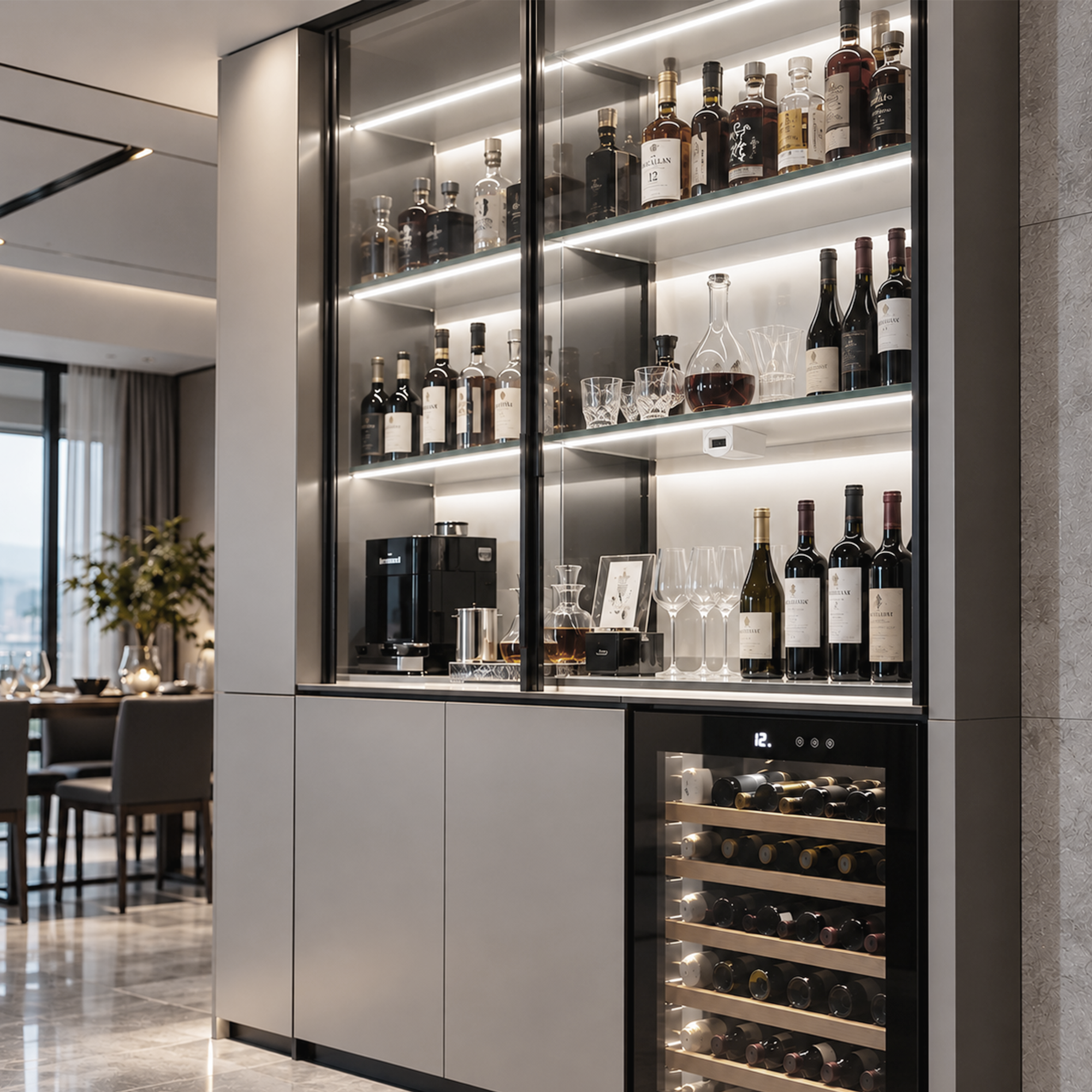

The XSL-GTSS is suitable for LED lighting systems integrated into glass display cabinets, decorative shelves, and illuminated furniture.
Users can operate the lighting through hand gestures without installing a conventional visible push-button switch.

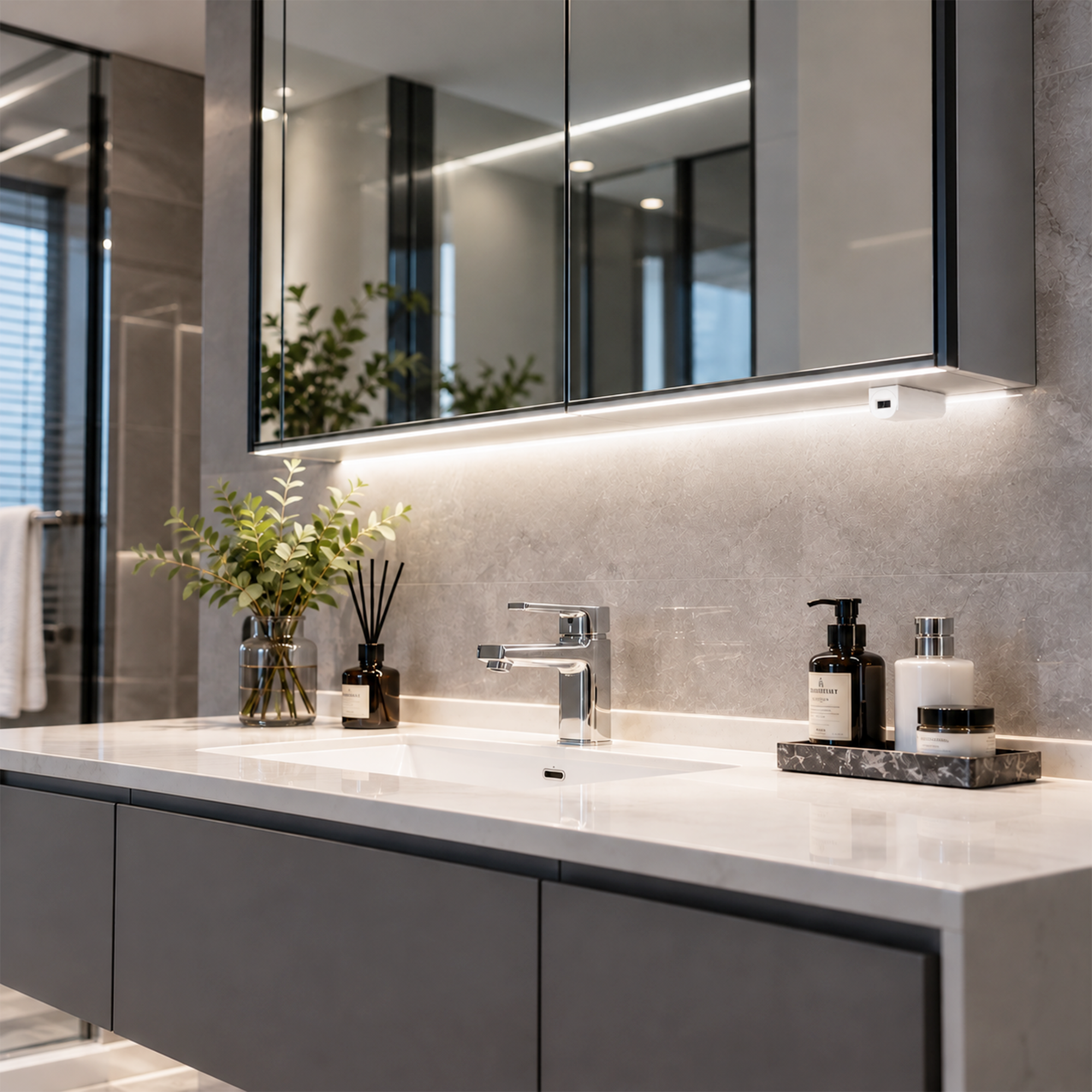

The compact sensor can be integrated into compatible LED bathroom mirror cabinet lighting systems.
When installed in a suitably protected location, it provides convenient control of LED lighting beneath or inside mirror cabinets.
The IP20 protection designation should be considered during installation, particularly in environments exposed to moisture.
For suitable low-voltage LED lighting systems, the XSL-GTSS can provide hand-wave control for under-cabinet and cabinet-interior lighting.
The sensor is also suitable for wardrobe cabinets, storage furniture, and other indoor LED lighting applications where manual hand-wave control is preferred.
The XSL-GTSS is designed for compatible DC 12V LED lighting installations.
For safe and reliable integration, manufacturers should consider the following requirements:
Use a suitable regulated DC 12V power supply.
Select the Single-Color version for compatible single-color LED strips.
Select the CCT version for compatible tunable-white LED strips.
Verify the controller's rated output against the total connected LED load.
Confirm the required wiring and connector configuration before assembly.
Install the sensor with its sensing window accessible to the user.
Avoid direct water exposure and unsuitable moisture-prone installation locations.
The XSL-GTSS is a low-voltage LED control component and must not be connected directly to AC mains voltage.
XINSHENGLU supplies LED lighting control components for manufacturers, lighting system integrators, and professional buyers.
For OEM/ODM projects, customers can discuss their requirements for:
Single-color or CCT control functions
Cabinet lighting integration
Cable length and connector specifications
Sensor installation arrangements
Project-specific packaging and assembly requirements
Customization feasibility depends on the selected product configuration and project requirements.
The Single-Color version is designed for compatible single-color LED strips and supports hand-wave control and stepless dimming.
The CCT version supports compatible tunable-white LED lighting, including color temperature selection through hand-wave gestures.
Yes. Keep your hand within the sensing area to perform stepless brightness adjustment.
Yes, it can be considered for compatible LED mirror cabinet lighting installations. However, the installation location must be appropriate for the product's IP20 protection designation.
The supplied XSL-GTSS specification identifies DC 12V operation. Compatibility with DC 24V systems has not been confirmed.
Both types of lighting are supported within the XSL-GTSS product series, but they require the corresponding controller version.
The XSL-GTSS is designed for a DC 12V lighting system. A suitable DC power source is required; it is not an AC-to-DC power supply.
Please provide your required cable length, connector details, and project specifications to XINSHENGLU for customization feasibility review.
Looking for a touchless LED sensor switch for your cabinet lighting project?
Contact XINSHENGLU to discuss the XSL-GTSS Single-Color and CCT versions, compatibility requirements, samples, and OEM/ODM project specifications.
To help us recommend the appropriate version, please provide your LED strip voltage, lighting type, expected load, and installation requirements.
Contact XINSHENGLU for product specifications and a quotation.
