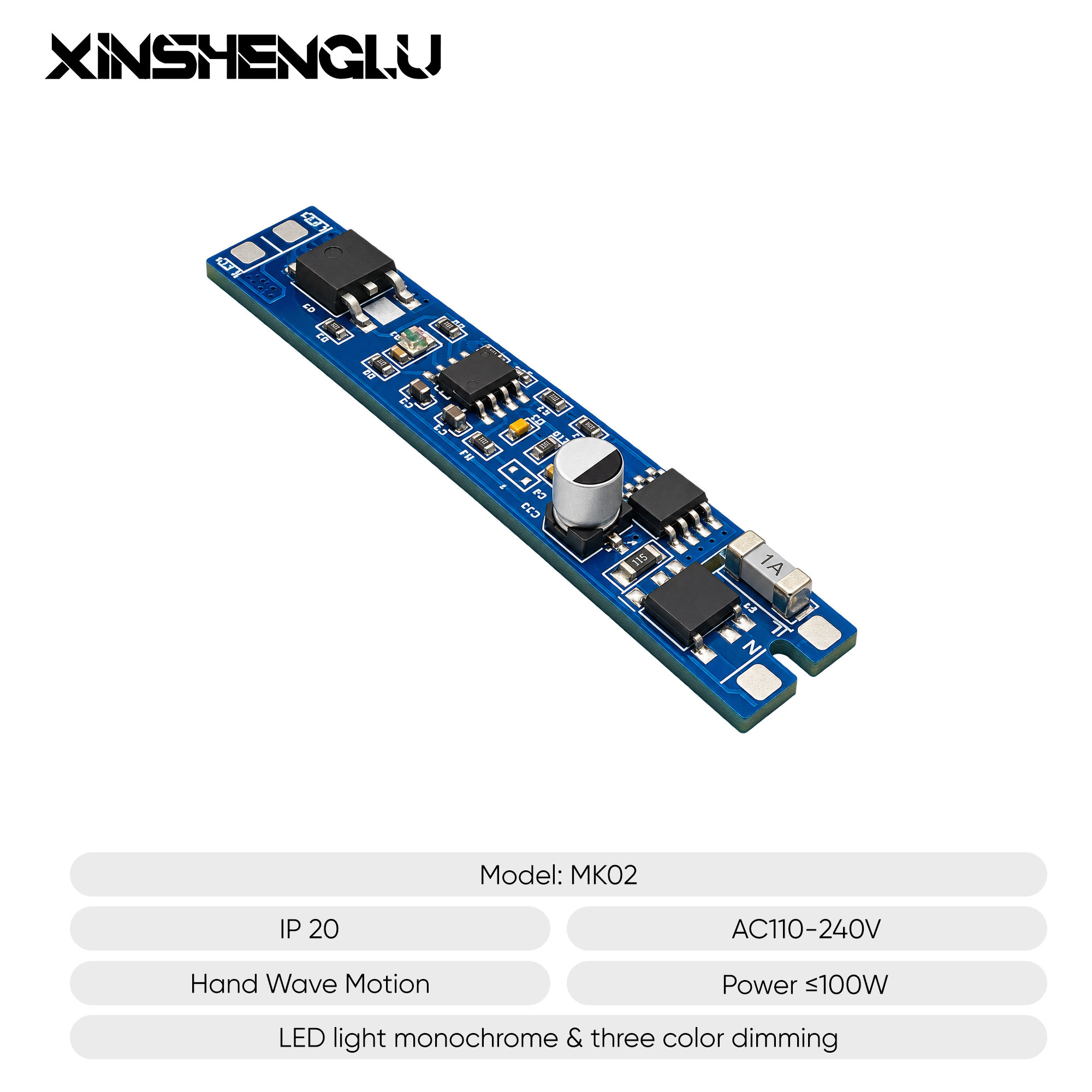

The XINSHENGLU MK02 High Voltage Hand Wave Sensor Switch is a compact, touchless ON/OFF control module designed for compatible high-voltage LED strips and LED aluminum-profile lighting systems.
Featuring an AC110–240V input specification, AC output, and a slim 64 × 10 × 8 mm PCB, the MK02 provides convenient hand-wave switching without physical contact. It is suitable for integration into compatible cabinet lighting, display lighting, and linear LED fixtures.
Designed for LED lighting manufacturers and OEM/ODM projects, the MK02 supports simple lighting ON/OFF control without dimming or color temperature adjustment.
Key Features:
AC output for compatible high-voltage LED strips
Touchless hand-wave ON/OFF switching
Compact 64 × 10 × 8 mm PCB design
Designed for LED aluminum-profile integration
Rated load marked up to 100W, subject to load compatibility
OEM/ODM project inquiries supported
| Quantity: | |
|---|---|
The XINSHENGLU MK02 High Voltage Hand Wave Sensor Switch is a compact electronic control module designed for touchless operation of compatible high-voltage LED strip lighting systems.
Unlike conventional low-voltage LED sensor modules designed for DC12V or DC24V applications, the MK02 features an AC output for compatible high-voltage LED strips.

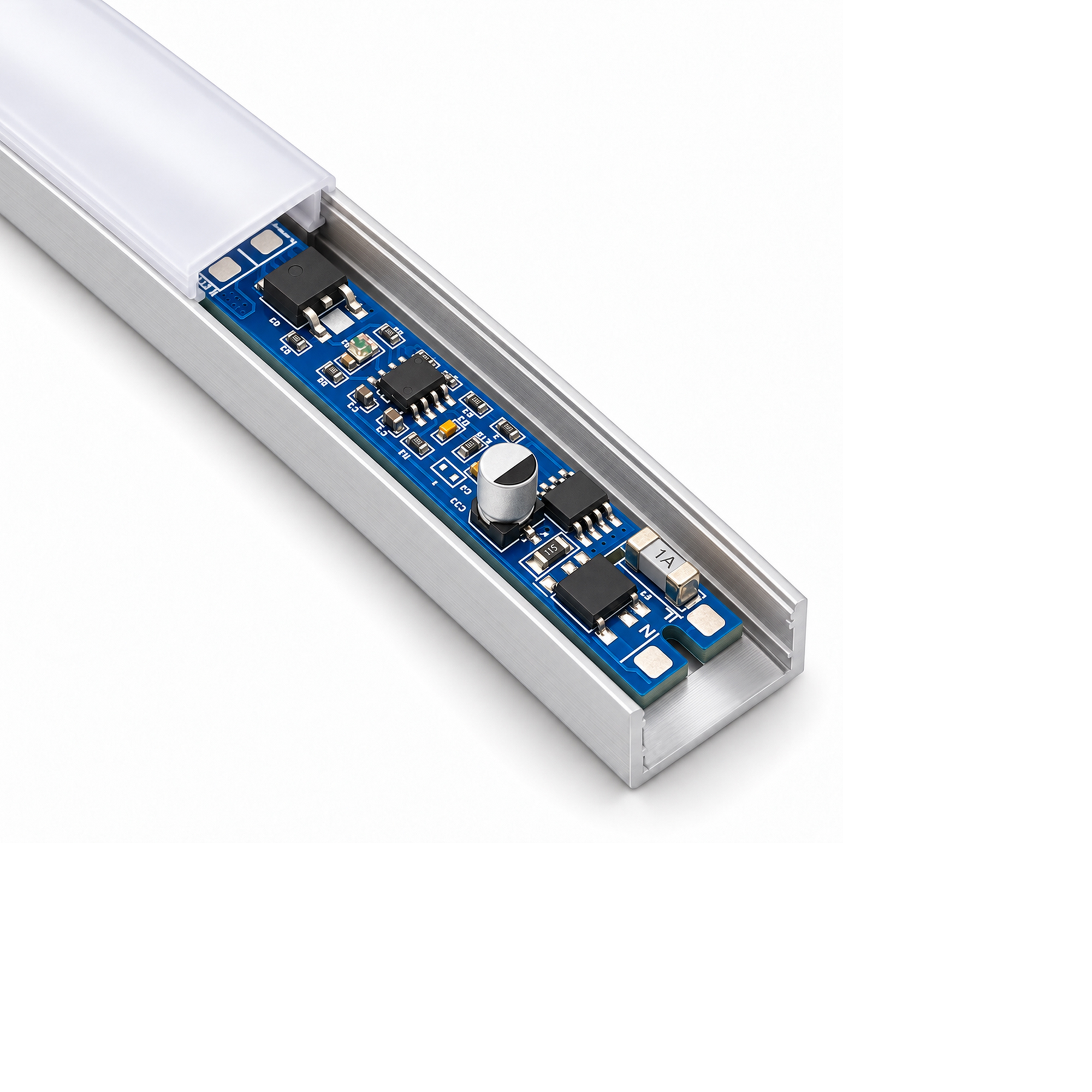

With its narrow 64 × 10 × 8 mm PCB, the MK02 is designed for integration into suitable LED aluminum profiles, making it a practical component option for lighting manufacturers developing cabinet lights, display lighting, and integrated linear LED fixtures.
The MK02 provides straightforward hand-wave ON/OFF control. It does not support brightness dimming or color temperature adjustment.
The product materials specify AC110–240V input and a maximum load of 100W. Final electrical compatibility should be confirmed against the selected LED strip and operating conditions.

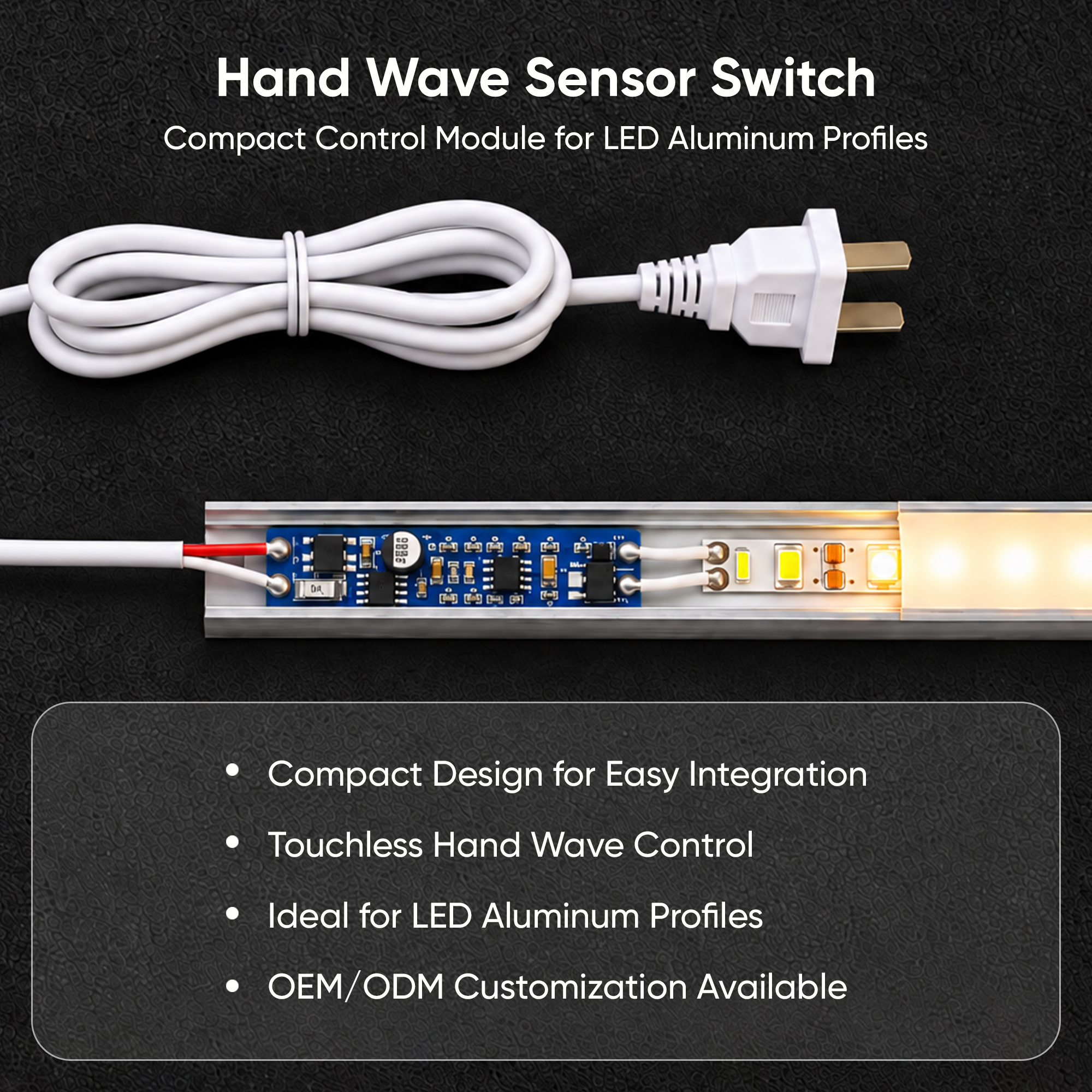

The MK02 is designed to control compatible high-voltage LED strip lighting through its AC output.
It is intended for lighting projects that use a matched high-voltage LED strip system rather than standard DC12V or DC24V strip lighting.
Benefits for lighting manufacturers:
Designed for integration into compatible AC LED strip systems.
Provides sensor-operated switching for high-voltage lighting applications.
Offers an alternative to conventional mechanical ON/OFF switching.
Supports the development of integrated LED lighting assemblies.
Compatibility Note: High-voltage LED strips are not electrically interchangeable. The specific LED strip construction, operating voltage, input requirements, and electrical characteristics must match the MK02 output specification.
The MK02 uses hand-wave sensing to control connected lighting without requiring physical contact with a mechanical switch.
This control method provides a convenient way to operate lighting in areas such as kitchen cabinets, furniture displays, and LED profile fixtures.
The module is intended for straightforward lighting ON/OFF operation.
The MK02 does not support dimming, three-color switching, or CCT color temperature adjustment.
The actual sensing distance and gesture response should be verified with the selected installation arrangement.
The MK02 features a slim control board measuring:
Length: 64 mm
Width: 10 mm
Overall Height: 8 mm
Its narrow PCB design allows lighting manufacturers to evaluate the module for installation in compatible LED aluminum-profile assemblies.
By incorporating the sensor module into the lighting structure, manufacturers can develop products with an integrated control interface.
The actual internal dimensions of the aluminum profile, diffuser arrangement, and electrical insulation requirements must be checked before integration.
For applications that require basic lighting switching rather than adjustable brightness or multiple color modes, the MK02 provides a dedicated hand-wave ON/OFF control solution.
Its straightforward function is relevant to lighting products designed around a single operating mode.
This makes it suitable for manufacturers seeking an uncomplicated sensor switching function for compatible high-voltage LED strip applications.
The MK02 is intended for use within suitable LED aluminum-profile lighting systems.
The product's compact construction makes it relevant to custom linear lighting designs where the switching module must fit inside a limited installation space.
Potential product integrations include cabinet lights, shelf lights, display fixtures, and furniture lighting assemblies.
XINSHENGLU supports OEM/ODM project discussions for lighting manufacturers and B2B buyers.
Customers can submit their LED strip specifications, aluminum-profile drawings, application requirements, and estimated order quantities for product suitability evaluation.
The MK02 is designed to detect a hand-wave gesture and control the switching state of a compatible high-voltage LED strip.
When used in a correctly designed lighting assembly, the sensor provides a contact-free user interface for switching the connected light on and off.
Touchless ON/OFF Control
Hand-wave sensing is used for switching the lighting.
No Brightness Dimming
The MK02 is not designed to vary the brightness of the connected LED strip.
No Color Temperature Adjustment
The MK02 does not provide warm white, neutral white, and cool white switching or other three-color control functions.
The exact gesture sequence, sensing distance, and diffuser-related sensing performance should be confirmed before production integration.
Function | Availability |
|---|---|
Hand Wave Sensing | Supported |
Lighting ON/OFF Control | Supported |
AC Output | Supported |
High-Voltage LED Strip Application | Supported with compatible LED loads |
Brightness Dimming | Not Supported |
Three-Color Switching | Not Supported |
CCT Color Temperature Control | Not Supported |
OEM/ODM Project Consultation | Available |
Additional functions should not be assumed unless confirmed for a separate product version.
Parameter | Specification |
|---|---|
Brand | XINSHENGLU |
Model Number | MK02 |
Product Name | High Voltage Hand Wave Sensor Switch |
Product Type | LED Lighting Sensor Control PCB |
Input Voltage | AC110–240V (specified in supplied product materials) |
Output Type | AC |
Compatible Load | Matched High-Voltage LED Strips |
Exact Output Voltage Range | Subject to technical specification confirmation |
Maximum Load | ≤100W (marked in product materials; applicable conditions to be verified) |
Control Method | Hand Wave Sensing |
Switching Function | ON/OFF |
Dimming | Not Supported |
Three-Color Control | Not Supported |
PCB Dimensions | 64 × 10 × 8 mm |
Declared Protection Level | IP20 specified for PCB; protection basis to be verified |
Installation Application | Compatible LED Aluminum-Profile Lighting Assemblies |
OEM/ODM | Project Inquiries Supported |
Technical Notice: The declared PCB protection level does not establish the IP rating of the complete lighting fixture. Electrical safety, accessible live parts, insulation, and final enclosure protection must be assessed for the finished product.

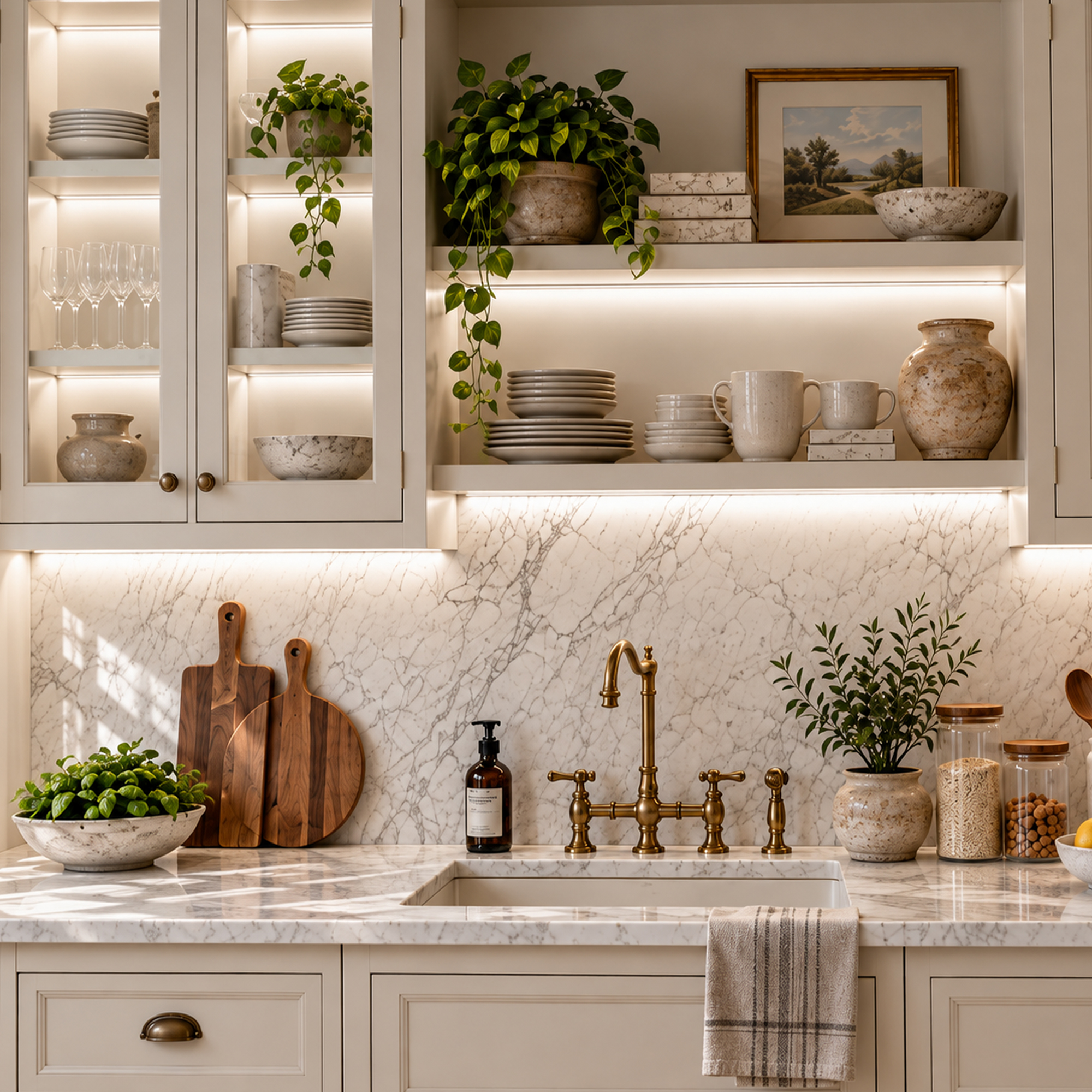

The MK02 can be considered for compatible high-voltage LED strip lighting installed within kitchen cabinet and under-cabinet lighting assemblies.
Hand-wave switching provides a convenient touchless control method for integrated cabinet lighting products.
For display cabinet manufacturers, the MK02 offers a compact sensing module that can be evaluated for suitable high-voltage LED profile lighting assemblies.
Its narrow PCB construction is relevant to applications where components need to fit inside a compact fixture.
The MK02 may be incorporated into suitable furniture and shelf lighting projects using compatible high-voltage LED strips.
Manufacturers should verify the profile geometry, electrical insulation, and accessibility of the installed electronic components.
The MK02 is intended for integration into compatible LED aluminum profiles used in custom linear lighting products.
Its compact structure allows lighting manufacturers to consider hand-wave control as part of the luminaire design.
All applications must be evaluated according to their electrical and environmental conditions.
The MK02 has an AC output intended for compatible high-voltage LED strips.
It must not be assumed compatible with conventional DC12V or DC24V LED strips.
Before selecting the module, buyers should confirm:
LED strip operating voltage and electrical requirements.
Compatibility with the MK02 AC output characteristics.
Actual connected load and rated operating conditions.
Required switching behavior.
Electrical safety requirements of the complete assembly.
An approved electrical specification and wiring diagram should be used for product integration.
The MK02 PCB measures 10 mm in width, but the internal mounting space of an aluminum profile may differ from its nominal profile width.
Manufacturers should verify the available channel width, profile depth, diffuser position, PCB mounting clearance, and cable routing.
Because the module is intended for a mains-voltage lighting system, the assembly must also incorporate appropriate protection against contact with live electrical parts.
Installation inside a conductive aluminum profile requires a suitable and verified electrical insulation arrangement.
The MK02 must be integrated according to an approved electrical design by qualified personnel.
The PCB protection specification must not be interpreted as a finished luminaire safety rating.
The final enclosure, accessible surfaces, wiring, electrical insulation, and thermal conditions should be assessed for the applicable market and product design.
The MK02 is not specified as a waterproof control module.
The MK02 is intended for compatible high-voltage LED strip systems.
It does not provide brightness dimming.
It does not provide three-color or CCT control.
It should not be connected to an incompatible low-voltage LED strip.
The output electrical characteristics and maximum allowable load must be verified for the intended installation.
Electrical wiring must follow the approved product documentation.
XINSHENGLU provides electronic lighting component solutions for manufacturers, wholesalers, and OEM/ODM customers.
For the MK02, customers can discuss project requirements involving:
High-voltage LED strip compatibility.
Aluminum-profile integration.
Sensor operation requirements.
Product dimensions and installation constraints.
Required electrical specifications.
Production project requirements and order quantities.
To evaluate your lighting project, please share the relevant LED strip and luminaire specifications with our team.
The MK02 is designed for touchless ON/OFF control of compatible high-voltage LED strip lighting. It is intended for integration into suitable LED aluminum profiles and custom linear lighting assemblies.
Yes. The MK02 uses AC output for compatible high-voltage LED strips. The required output voltage characteristics and LED strip compatibility should be confirmed for each application.
The MK02 is intended for high-voltage LED strip applications and is not specified for conventional DC12V or DC24V LED strips. Customers should select a controller designed for their LED strip's electrical requirements.
No. The MK02 provides hand-wave ON/OFF control and does not support brightness dimming.
No. The MK02 does not support three-color switching or CCT color temperature adjustment.
The MK02 is designed for integration into suitable LED aluminum-profile lighting systems.
Manufacturers must verify the internal profile dimensions and provide appropriate electrical insulation and protection for the complete assembly.

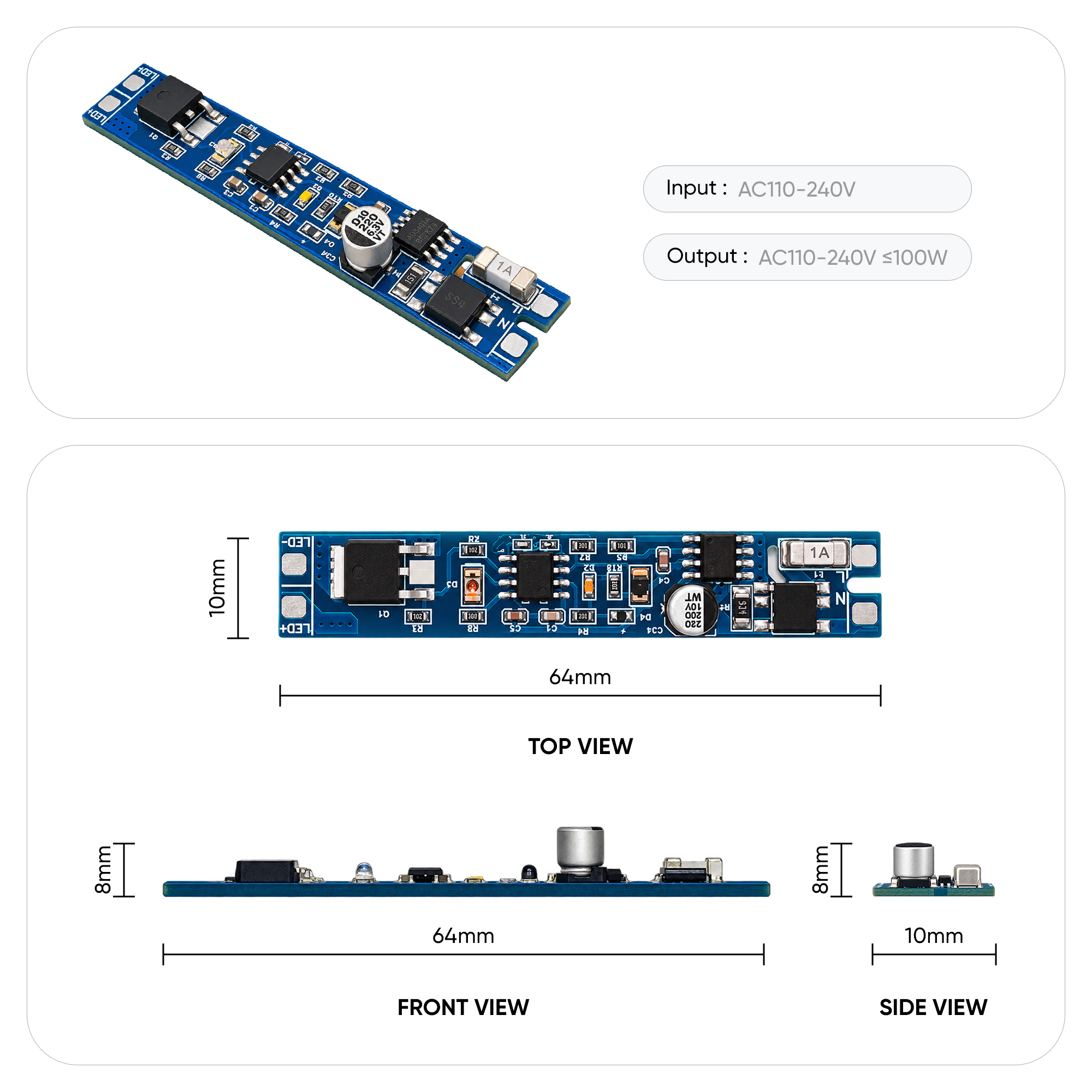

The dimensions shown in the product drawing are 64 mm × 10 mm × 8 mm.
The supplied product materials specify a maximum load of 100W. The applicable input voltage, LED strip type, and operating conditions should be confirmed before selecting the load.
No waterproof performance has been established for the MK02.
The product information identifies IP20 for the PCB. This does not establish an IP rating or waterproof performance for the complete lighting fixture.
Yes. XINSHENGLU supports OEM/ODM project inquiries. Customers can provide their LED strip specifications, lighting application, profile dimensions, and purchasing requirements for technical evaluation.
Looking for a compact hand wave sensor switch for your high-voltage LED strip lighting project?
Contact XINSHENGLU to discuss the MK02 sensor module, electrical compatibility, aluminum-profile integration, sample evaluation, and OEM/ODM requirements.
To help us recommend a suitable solution, please provide your LED strip voltage, estimated load, installation requirements, and expected order quantity.
Request a Quote or Contact Us for Technical Support.
