The XINSHENGLU MK01 LED Aluminum Profile Hand Wave Sensor Switch is a compact, touchless lighting control module designed for integration into compatible LED aluminum profiles.
Supporting DC 12V and DC 24V lighting applications, the MK01 offers hand-wave control, three-color-temperature switching, and LED dimming functionality for suitable lighting configurations.
With a slim 59 × 10 × 6 mm PCB design and convenient push-in wiring terminals, it provides a practical integrated control solution for kitchen cabinet lights, wardrobe lighting, display cabinets, and other indoor linear LED lighting applications.
Key Features:
Touchless Hand Wave Control – Convenient lighting operation without physical contact.
Three-Color-Temperature Switching & Dimming – Supports adjustable lighting functions with compatible LED configurations.
DC 12V / 24V Support – Suitable for low-voltage LED lighting projects.
Compact Built-In Design – Designed for integration into compatible LED aluminum profiles.
Push-In Wiring Terminals – Convenient power and LED connections.
OEM/ODM Support – Project-based customization and integration options.
Contact XINSHENGLU to confirm the appropriate electrical ratings, LED strip compatibility, and control configuration for your application.
| Quantity: | |
|---|---|
The XINSHENGLU MK01 LED Aluminum Profile Hand Wave Sensor Switch is a compact lighting control module developed for integration into compatible LED aluminum profile systems.
Designed for DC 12V and DC 24V low-voltage lighting applications, the MK01 combines touchless hand-wave operation with three-color-temperature switching and dimming functionality.
Its narrow PCB design and push-in terminal connections make it suitable for lighting manufacturers developing integrated cabinet lights, wardrobe lighting systems, display cabinet lighting, and other indoor linear LED lighting products.
Instead of installing a separate external lighting switch, manufacturers can incorporate the MK01 sensor module directly into a compatible aluminum-profile lighting assembly.
The result is a compact lighting control arrangement that supports convenient operation while reducing the need for additional external switch hardware.
The MK01 uses hand-wave sensing to provide contactless lighting control.
Users can operate the lighting system by making the appropriate hand gesture near the sensor area, without pressing a conventional mechanical switch.
This control method is particularly useful for integrated cabinet lighting and furniture lighting systems where a separate external switch may be undesirable.
The exact sensing distance and gesture sequence depend on the selected configuration and installation conditions.
The MK01 supports three-color-temperature switching for compatible LED lighting configurations.
This functionality allows an appropriately configured lighting system to switch between three color temperature settings.
It can be useful for furniture and cabinet lighting applications where different lighting appearances are required.
The actual color temperature values and compatible LED strip connection arrangement must be confirmed for the selected lighting system.
In addition to color temperature switching, the MK01 supports LED dimming.
Brightness adjustment provides users with greater flexibility when operating suitable LED lighting systems.
This functionality can be valuable in display cabinets, wardrobes, decorative shelving, and other applications where adjustable light output is preferred.
The dimming sequence, brightness range, and supported LED strip type should be verified before production integration.
The MK01 supports applications using DC 12V and DC 24V LED lighting systems.
These voltage options make it relevant to different low-voltage lighting projects, including furniture lighting and LED aluminum profile applications.
The appropriate product configuration, power supply, and electrical load requirements must be confirmed before installation.
The maximum rated output current and power are subject to final specification verification.

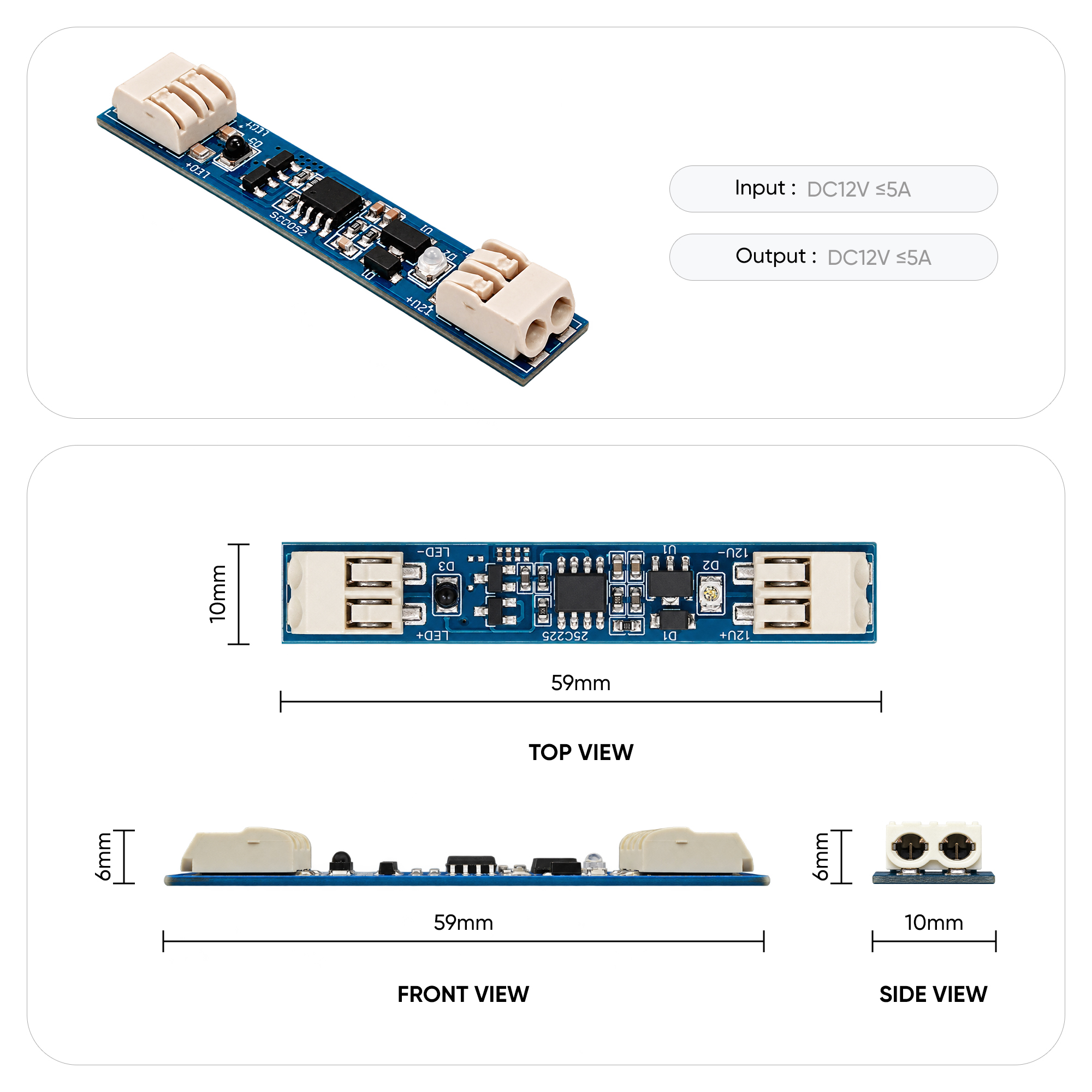

The MK01 features a slim printed circuit board with the following dimensions indicated in the supplied technical drawing:
Length: 59 mm
Width: 10 mm
Height: 6 mm
This compact structure is intended for integration into compatible aluminum LED channels.
It allows lighting manufacturers to position the control module inside the lighting assembly while minimizing the need for an external sensor housing.
Always verify the internal profile clearance, terminal space, and diffuser arrangement before batch production.
The MK01 PCB incorporates push-in terminal connectors for power supply and LED connections.
This connector arrangement provides a convenient alternative to direct soldering during module installation, provided the selected wire specifications and terminal requirements are satisfied.
The design supports practical assembly of compatible LED lighting products.
The MK01 is suitable for OEM/ODM project evaluation involving integrated LED lighting systems.
Lighting manufacturers can provide their aluminum profile dimensions, power supply specifications, LED strip information, and required control functions for technical compatibility review.
The MK01 is intended to operate as part of a low-voltage LED lighting system.
A suitable DC power supply provides electrical power to the sensor module. The module interfaces with the connected LED lighting system according to the selected control configuration.
When a hand gesture is detected near the sensing area, the MK01 processes the input and performs the corresponding lighting control function.
Depending on the selected configuration and compatible LED lighting system, supported functions include hand-wave operation, three-color-temperature switching, and brightness dimming.

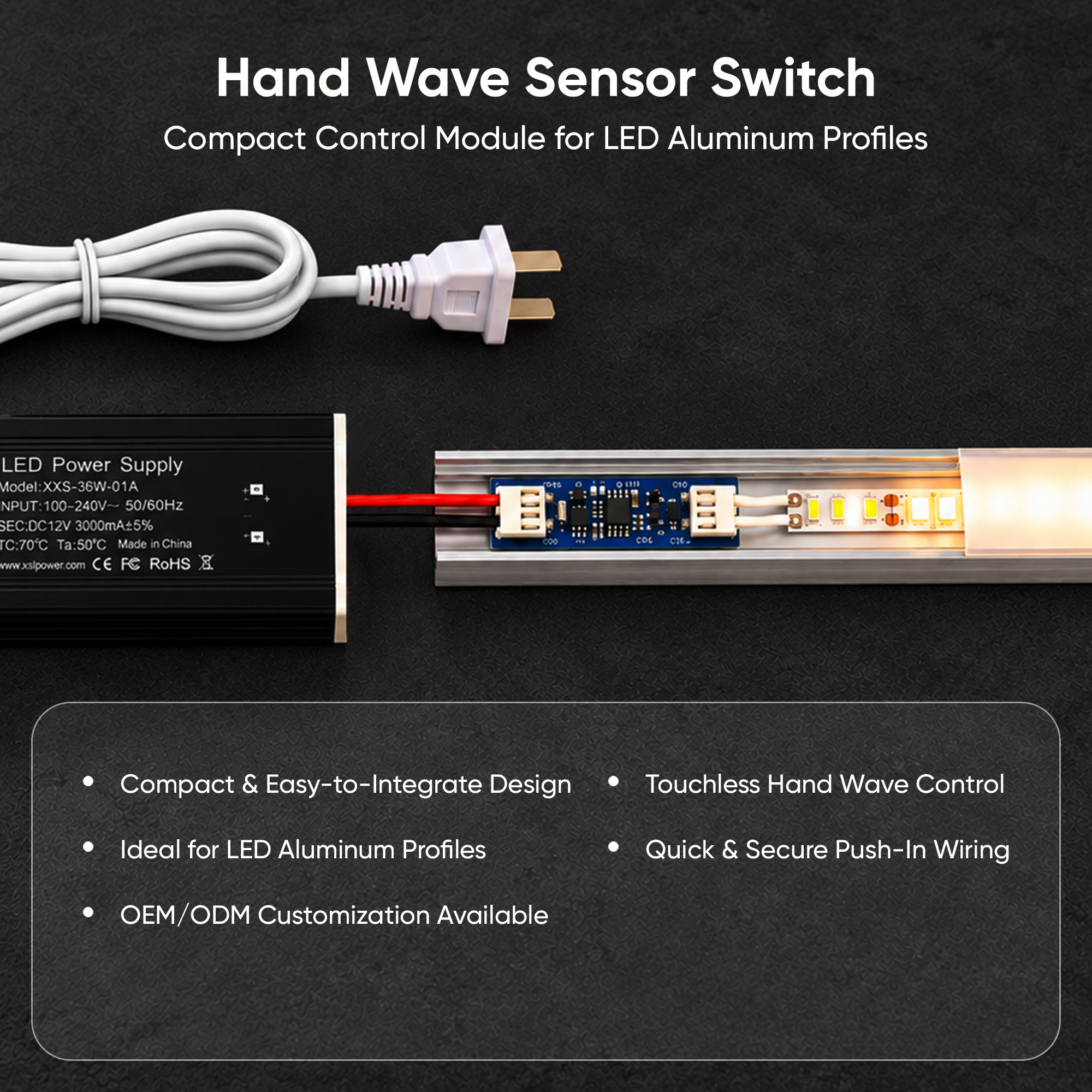

AC Power Source → Suitable DC LED Power Supply → MK01 Sensor Module → Compatible LED Lighting System
This arrangement illustrates the general relationship between the system components rather than a detailed electrical wiring instruction.
The MK01 is a low-voltage DC control module. It must not be connected directly to AC mains voltage.
For three-color-temperature lighting applications, the complete LED strip interface and connection method must be verified before installation.
The MK01 product information confirms the following capabilities:
Function | Description |
|---|---|
Hand Wave Sensing | Touchless gesture-based lighting control |
Three-Color-Temperature Switching | Supported with compatible lighting configurations |
LED Dimming | Brightness adjustment functionality |
DC 12V / 24V Operation | Supports low-voltage lighting applications |
Integrated Profile Installation | Designed for compatible LED aluminum channels |
Push-In Wiring | Terminal connectors for module wiring |
Configuration Note: The availability and operation of individual control functions should be checked against the selected product version and compatible LED lighting system. Specific gesture sequences and multi-color LED connection requirements are subject to technical confirmation.

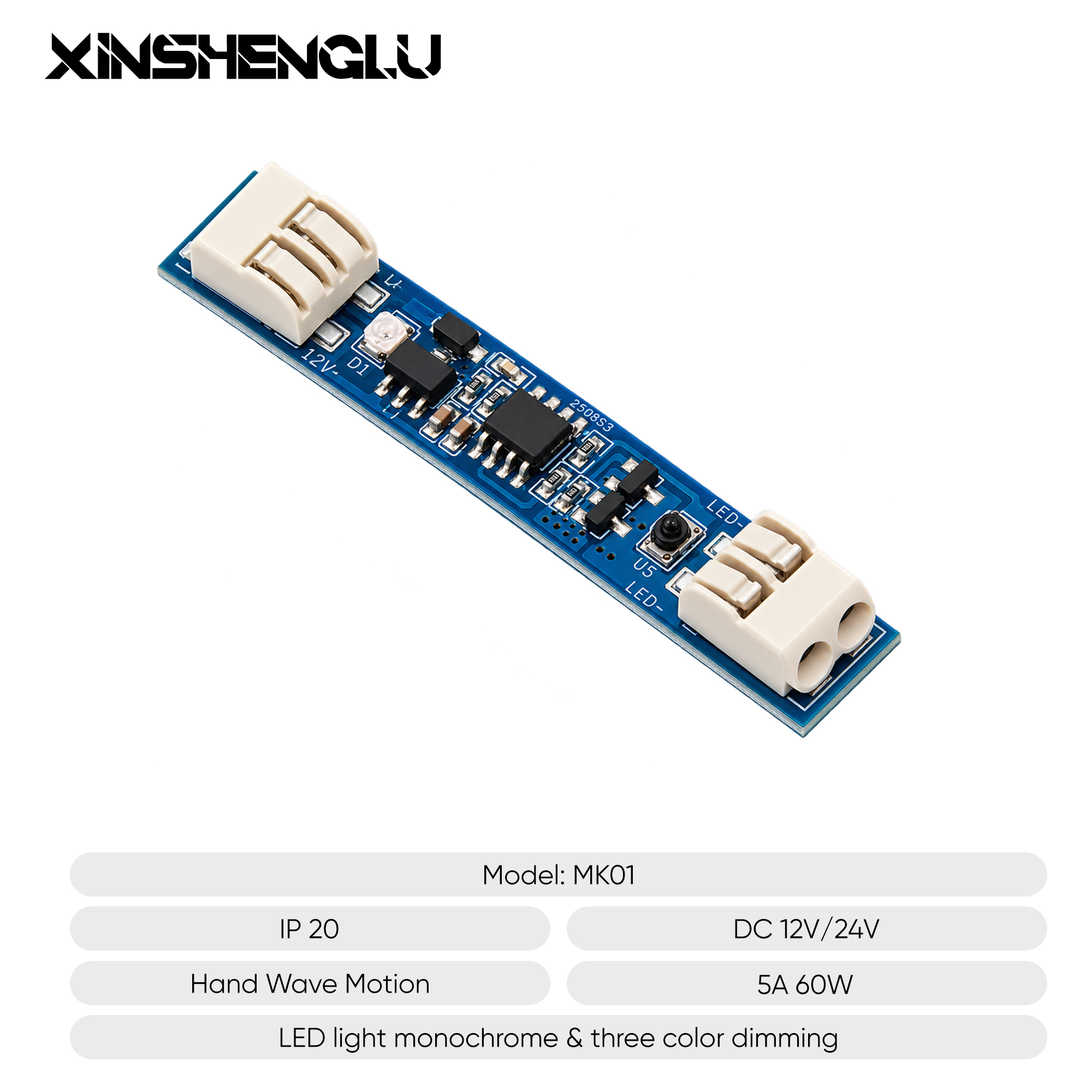

Parameter | Specification |
|---|---|
Brand | XINSHENGLU |
Model | MK01 |
Product Name | LED Aluminum Profile Hand Wave Sensor Switch |
Product Category | LED Lighting Sensor Control Module |
Operating Voltage | DC 12V / DC 24V |
Control Type | Hand Wave Sensing |
Color Temperature Control | Three-Color-Temperature Switching |
Dimming Function | Supported |
Rated Output Current | Pending Technical Confirmation |
Rated Output Power | Pending Technical Confirmation |
PCB Length | 59 mm |
PCB Width | 10 mm |
PCB Height | 6 mm |
Input Connection | Push-In Terminal Connector |
Output Connection | LED Output Terminal Connector |
Visible Output Markings | LED+ / LED− |

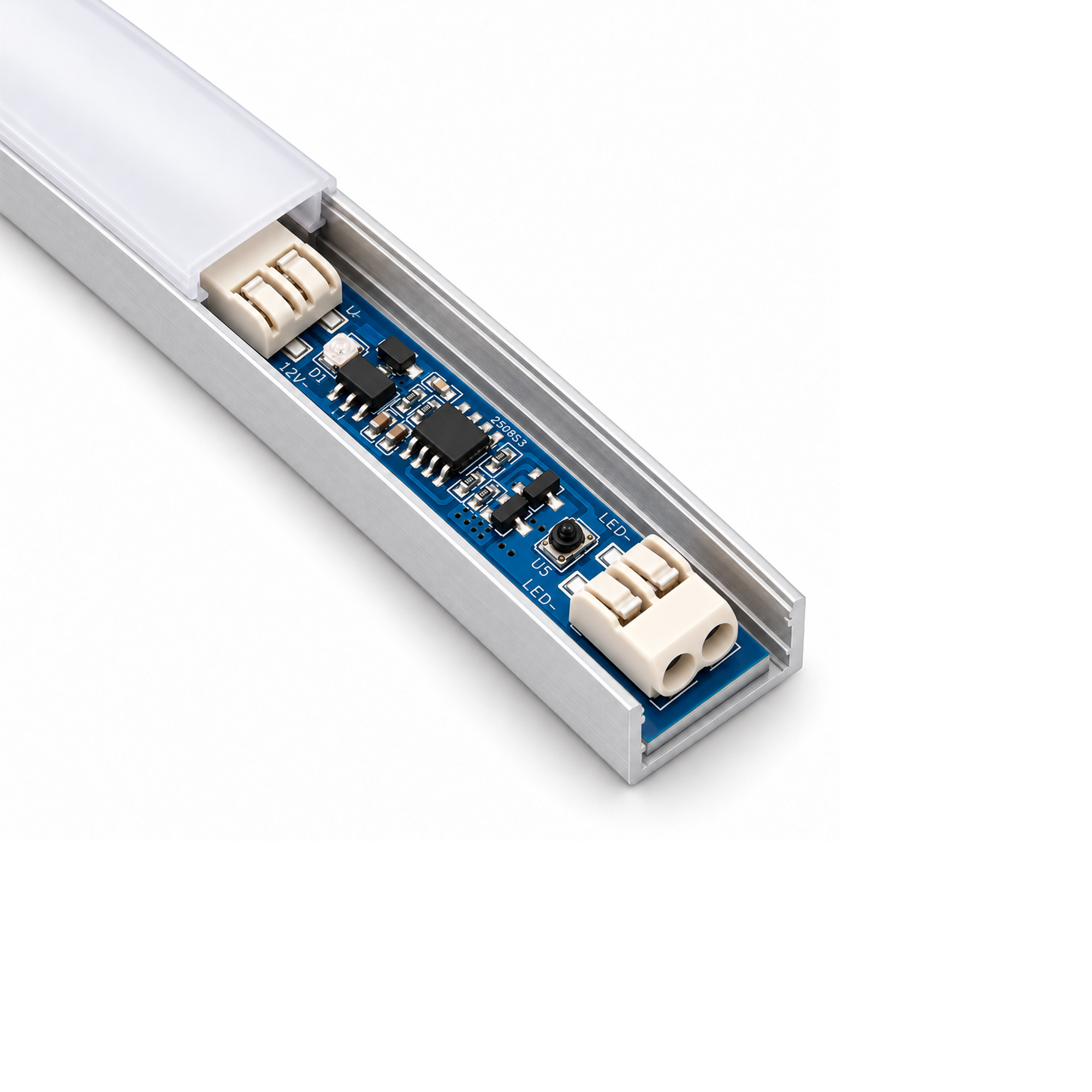

Installation | Inside Compatible LED Aluminum Profiles |
LED Strip Compatibility | Subject to Selected Lighting Configuration |
Ingress Protection Rating | Not Verified |
Sensing Distance | Subject to Technical Confirmation |
OEM/ODM | Project Evaluation Available |
Important: The 59 × 10 × 6 mm dimensions are based on the supplied dimensional drawing. Final dimensions and electrical ratings should be checked against the approved production specifications.
The MK01 is designed for integration into compatible aluminum-profile lighting systems used in kitchen cabinets.
Touchless operation provides an alternative to conventional external lighting switches.
Three-color-temperature switching and dimming can provide additional lighting flexibility when the complete LED lighting configuration supports these functions.
The compact MK01 module can be incorporated into compatible wardrobe and closet lighting fixtures.
Its slim PCB structure is suitable for consideration in applications where lighting equipment must fit within narrow linear profiles.
The MK01 can be used in compatible display cabinet lighting systems where adjustable light output and convenient operation are required.
Potential applications include retail displays, decorative cabinets, and product presentation lighting.
The module is also suitable for project evaluation in integrated shelf lighting, bookcase lighting, and other indoor furniture lighting systems.
Its profile-integrated construction helps manufacturers develop lighting products with fewer visible external control components.
Correct compatibility evaluation is essential when integrating the MK01 into a lighting product.
Use a DC power supply that matches the selected MK01 configuration and connected LED lighting system.
The MK01 supports DC 12V and DC 24V applications, but the corresponding rated output current and load capacity must be confirmed before final selection.
The supplied MK01 PCB illustrations show output terminals marked LED+ and LED−.
The product supports three-color-temperature switching and dimming, but the exact interface required to implement these functions has not yet been established from the available PCB drawings.
Do not assume compatibility with conventional three-wire CCT LED strips or other multi-channel LED strips without an approved connection specification.
For CCT projects, provide the LED strip wiring information for compatibility review.
Before selecting the MK01 for a lighting fixture, verify:
Internal width and depth of the aluminum profile
Available clearance for the PCB and terminals
Diffuser position and material
Sensor exposure and intended sensing area
Electrical insulation and installation arrangement
When integrating a sensor into an aluminum profile, the diffuser and installation position can affect sensing behavior.
Sample validation with the intended diffuser, LED strip, and aluminum profile is recommended before mass production.
The protection rating of the MK01 has not yet been verified.
The module should not be assumed to provide water or moisture protection when installed as a bare PCB.
For applications exposed to moisture, additional engineering assessment and appropriate protective measures are required.
XINSHENGLU provides lighting control components for LED lighting manufacturers, furniture manufacturers, distributors, and OEM/ODM customers.
For customized lighting projects, our team can review the electrical and mechanical requirements of the proposed lighting system.
LED aluminum profile dimensions
DC 12V or DC 24V operating requirements
LED strip type and connection specifications
Required hand-wave control functions
Color temperature and dimming requirements
Expected order quantity
By reviewing these details before production, manufacturers can identify compatibility requirements and reduce the risk of component mismatch during assembly.
The MK01 is a compact lighting control module designed for installation inside compatible LED aluminum profiles. It supports touchless hand-wave operation, three-color-temperature switching, and dimming for suitable low-voltage LED lighting configurations.
Yes. The MK01 supports DC 12V and DC 24V lighting applications. The appropriate configuration and electrical load ratings should be confirmed before selecting components for production.
Yes. Three-color-temperature switching is a supported MK01 function. However, the required LED strip interface, specific color temperature settings, and connection method must be confirmed for the selected system.
Yes. The MK01 supports LED dimming. The actual dimming behavior and operating sequence depend on the selected control configuration.
Direct compatibility has not yet been verified. The supplied PCB illustrations show a two-terminal LED output arrangement, so the required interface for three-color-temperature operation must be checked before installation.
The supplied technical drawing indicates dimensions of 59 × 10 × 6 mm. Customers should confirm the final mechanical dimensions and mounting clearance before batch production.
Yes. The MK01 is designed for installation inside compatible LED aluminum profiles. The available internal dimensions, PCB clearance, terminals, and diffuser arrangement must be checked.
The maximum rated output power and output current are pending final technical confirmation. Please request the approved electrical specifications before selecting the LED lighting load.
A verified ingress protection rating has not been provided. The bare module should not be treated as waterproof. Installation in wet or moisture-exposed locations requires further technical assessment.
Yes. XINSHENGLU can review OEM/ODM lighting projects based on the required electrical specifications, LED profile dimensions, sensing functions, and purchasing requirements.
