The XSL-SA3D-RT Motion Sensor LED Mirror Switch is a multifunctional smart mirror controller designed for 12V–24V LED bathroom mirrors and vanity mirrors.
Featuring intelligent motion detection, the LED lighting automatically turns on when someone approaches and switches off after a delay when they leave, providing convenient hands-free operation.
Its integrated four-digit digital display alternates between the current time and ambient temperature. The controller also supports 3-color CCT lighting, stepless dimming, touch on/off control, mirror defogger control, and a countdown timer.
Combining multiple smart functions in one compact module, the XSL-SA3D-RT is an ideal solution for LED mirror manufacturers, commercial bathroom projects, and OEM/ODM smart mirror applications.
| Quantity: | |
|---|---|
Touchless Lighting. Intelligent Control. A Smarter Mirror Experience.
The XSL-SA3D-RT is a multifunctional LED mirror controller that integrates human motion sensing, digital information display, adjustable lighting, and defogger control into one compact unit.
Designed for modern bathroom mirrors and commercial mirror installations, it offers automatic lighting operation while retaining the flexibility of touch control.

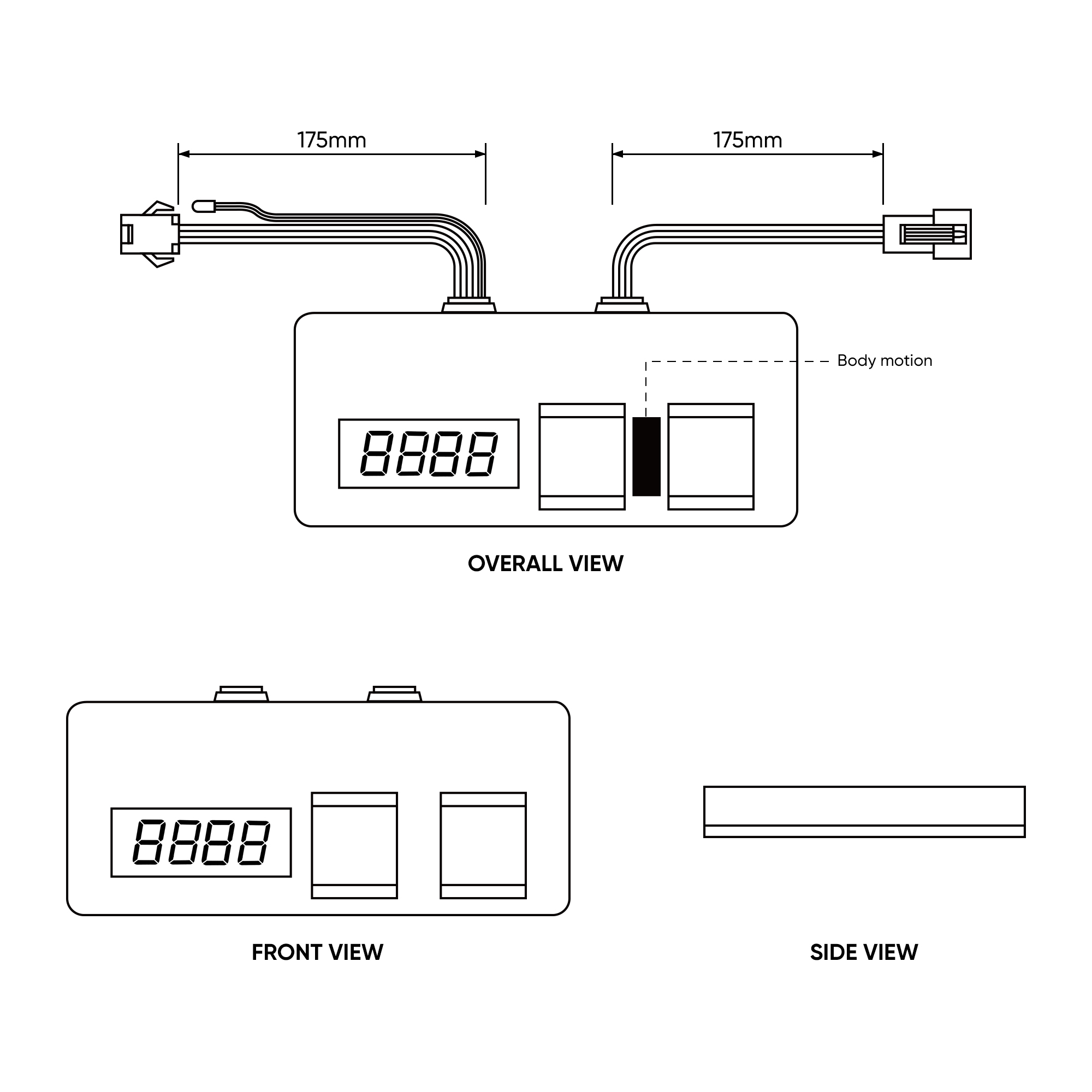

Specifications
Approach to Turn On. Walk Away to Turn Off.
Enjoy convenient hands-free lighting with the built-in human motion sensor.
When someone approaches the mirror and enters the sensor's detection area, the LED lighting automatically turns on. After the person leaves, the lighting switches off following a delay.
This eliminates the need to manually activate the mirror lighting every time, making daily mirror use more convenient.
Key Benefits:
Automatic LED lighting activation when a person approaches
Delayed automatic shutoff after leaving the detection area
Convenient hands-free lighting operation
Integrated motion detection within the controller
Helps reduce unnecessary lighting when the mirror is not in use
Ideal for residential bathrooms, hotel guest rooms, and commercial vanity areas.

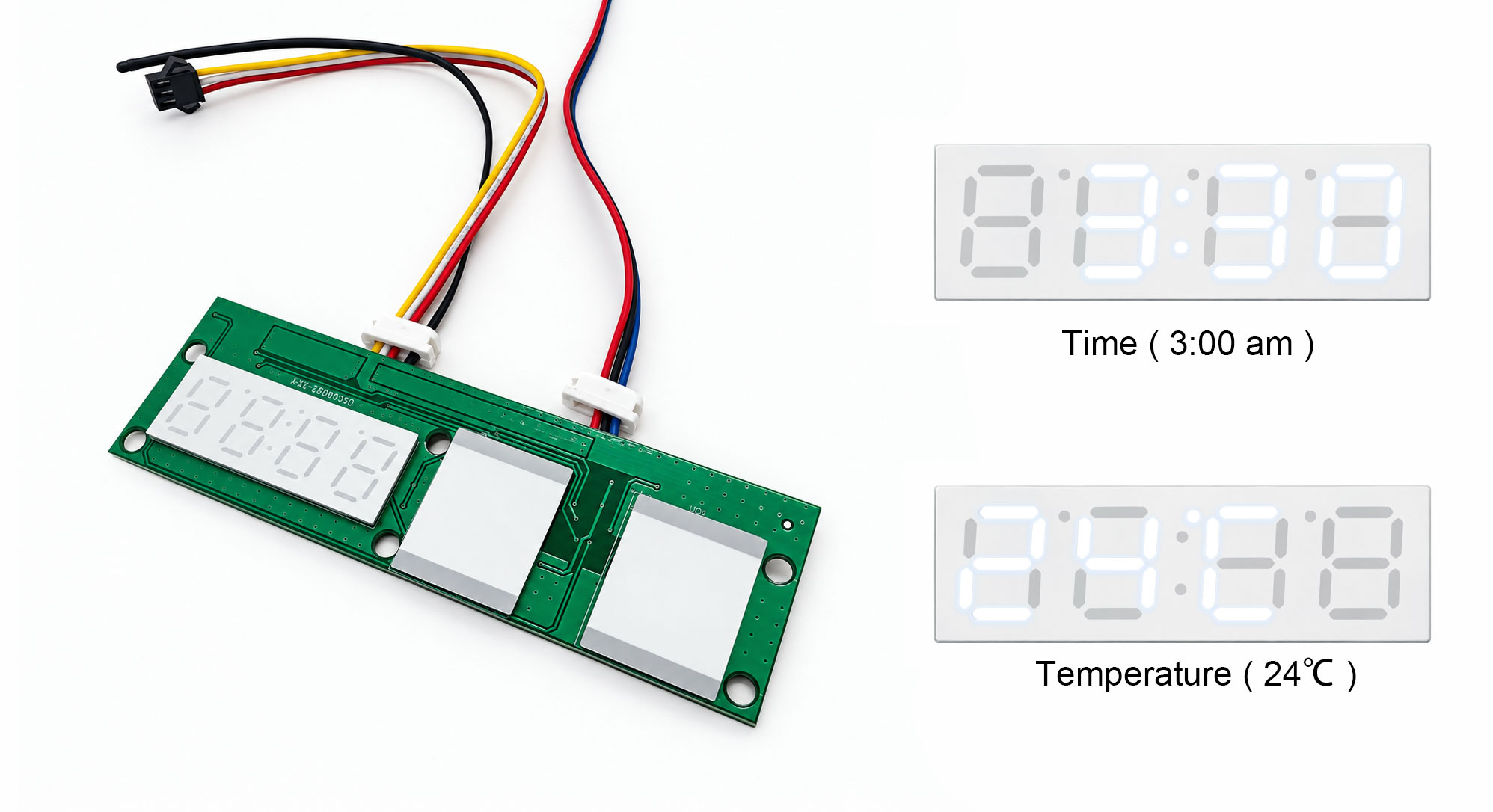

Stay Informed While Getting Ready.
The integrated digital display adds practical information to modern LED mirror designs.
Users can conveniently check the current time and surrounding ambient temperature directly on the mirror.
By combining lighting control and digital display functions in one module, the XSL-SA3D-RT helps mirror manufacturers create multifunctional products without requiring separate display controllers.
Display Features:
Digital clock
Ambient temperature indication
Compact integrated display
Suitable for bathroom and vanity mirror applications
The Right Light for Every Moment.
The XSL-SA3D-RT supports three-color CCT lighting control, allowing compatible LED strips to switch between warm white, neutral white, and cool white light.
Stepless dimming provides smooth brightness adjustment, allowing users to customize their mirror lighting for daily grooming, makeup, or relaxing ambient illumination.
Touch control remains available for convenient lighting operation.
Lighting Control Features:
Three-color CCT switching
Warm white, neutral white, and cool white lighting
Stepless brightness adjustment
Touch-controlled lighting on/off
Compatible with appropriately matched CCT LED strips
Clearer Reflections After a Hot Shower.
Steam from a hot shower can cause condensation to form on bathroom mirrors, making the reflection difficult to see.
The XSL-SA3D-RT includes a built-in defogger control function that allows users to operate a compatible mirror heating pad through the integrated touch control system.
The heating pad helps reduce condensation within the heated area of the mirror, providing a clearer reflection in humid bathroom environments.
Key Benefits:
Integrated defogger control
Convenient touch operation
Helps reduce condensation on the heated mirror area
Combines lighting and defogger control within one module
Note: A compatible mirror demister heating pad is required. The controller itself does not heat the mirror.
Smarter Control for Everyday Convenience.
In addition to automatic motion-sensing operation, the XSL-SA3D-RT features a countdown timer function.
The timer provides a convenient way to manage automatic shutoff, making the controller suitable for mirror applications that require timed lighting operation.
Together with the motion-sensing function, it offers more flexible ways to manage LED mirror lighting.
Two Convenient Ways to Control Your Mirror.
The XSL-SA3D-RT combines automatic motion detection with traditional touch operation.
Motion sensing provides hands-free lighting activation, while the touch control system supports manual lighting adjustment and access to other mirror functions.
The integrated design allows multiple functions to be managed through a compact mirror control module.
Control Capabilities:
Motion-activated LED lighting
Automatic delayed lighting shutoff
Manual touch lighting control
Brightness and color temperature adjustment
Mirror defogger control
Countdown timer functionality
One Controller. Multiple Mirror Applications.
The XSL-SA3D-RT is designed for 12V–24V low-voltage LED mirror systems, making it suitable for a wide variety of customized mirror projects.

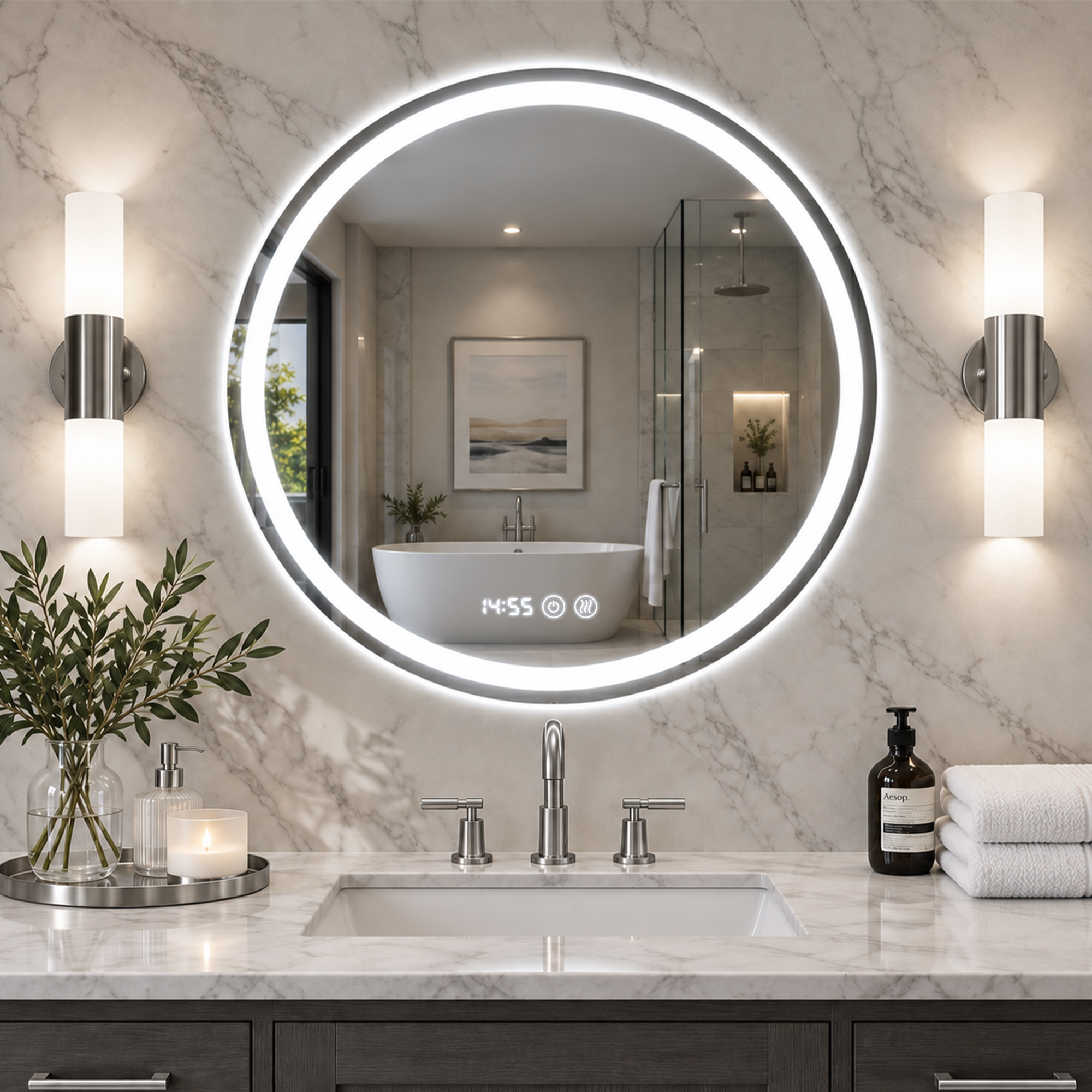

Bathroom LED Mirrors
Automatic lighting activation and integrated defogger control provide convenient functions for modern bathroom environments.
Hotel Bathroom Mirrors
Motion-activated lighting and digital information display create a convenient experience for hotel guests.
Vanity & Dressing Mirrors
Three-color temperature control and adjustable brightness help users customize their lighting for makeup and daily grooming.
Gym & Fitness Center Mirrors
Hands-free lighting control provides additional convenience in shared changing and washing areas.

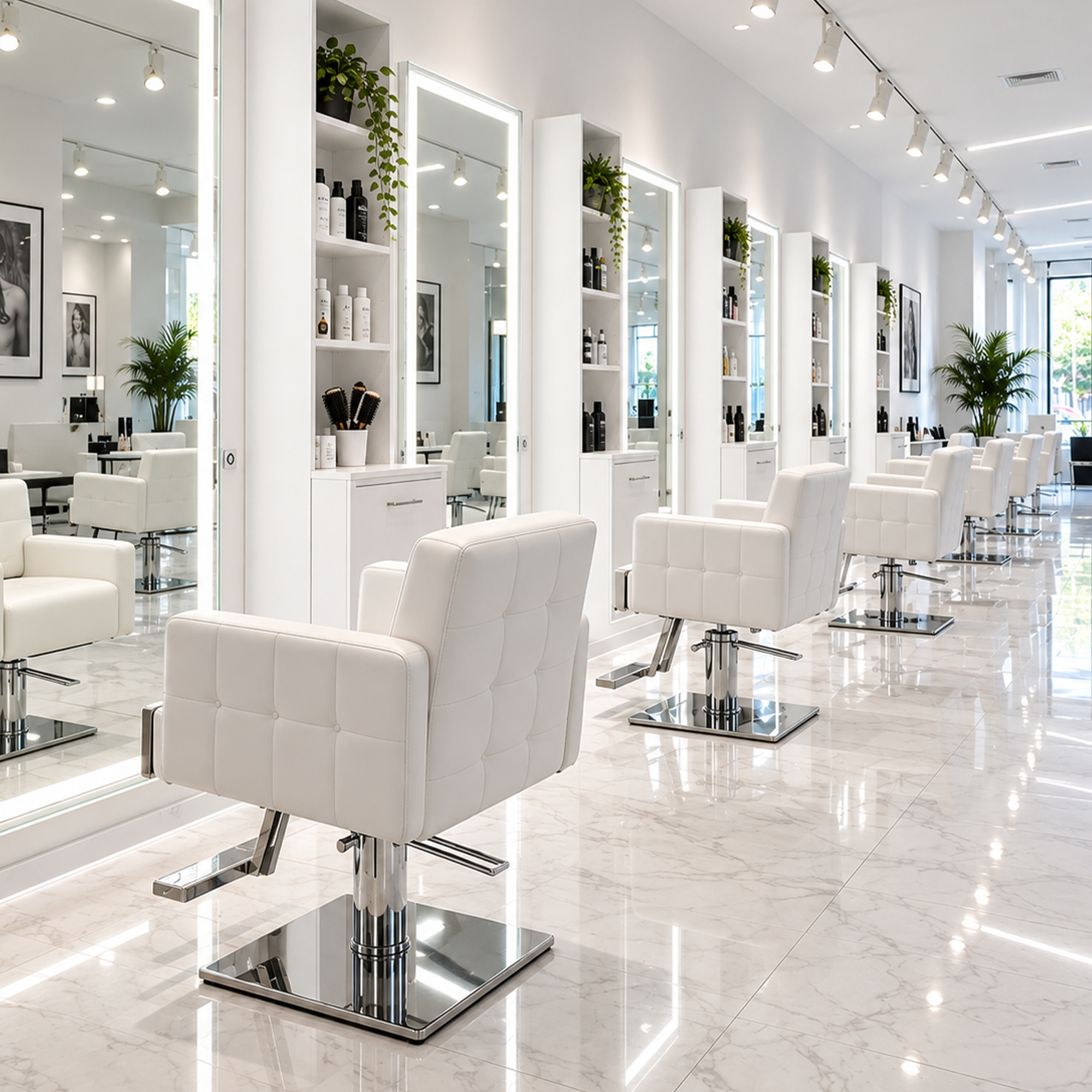

Beauty Salon Mirrors
Adjustable LED lighting and digital display functions support modern commercial mirror installations.

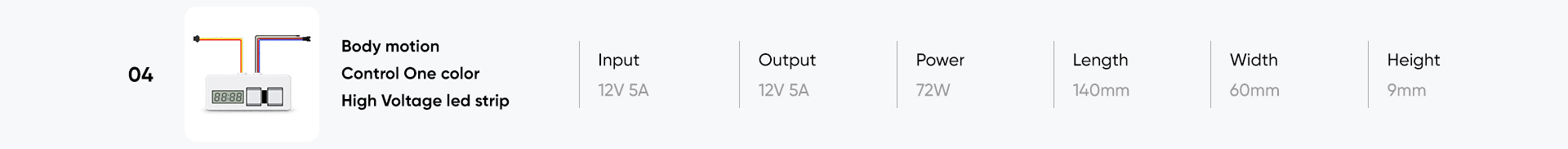

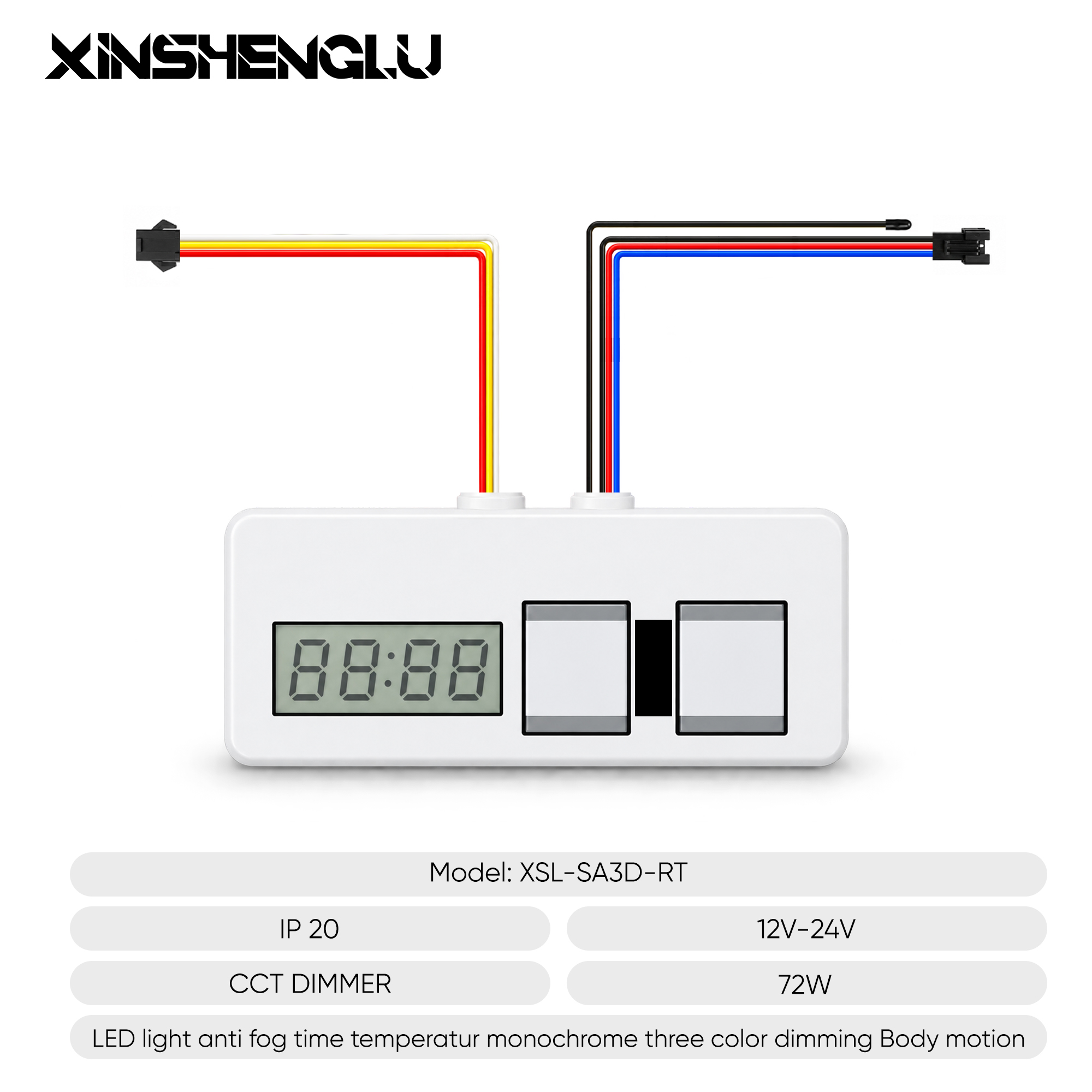

Parameter | Specification |
|---|---|
Model | XSL-SA3D-RT |
Product Type | Motion Sensor LED Mirror Touch Switch |
Operating Voltage | 12V–24V |
Marked Power Rating | 72W |
Protection Rating | IP20 |
Motion Sensor | Integrated |
Motion Control | Approach ON / Delayed OFF |
Display | Digital Clock & Ambient Temperature |
Lighting Control | Touch On/Off |
Color Temperature | 3-Color CCT |
Dimming | Stepless Dimming |
Defogger Control | Supported |
Timer | Countdown Automatic Shutoff |
Applications | Bathroom, Hotel, Vanity & Commercial Mirrors |
Electrical load limits, compatible accessories, and installation requirements should be confirmed against the final product specifications.
Q1: How does the motion sensor work?
When a person approaches the mirror and enters the sensing area, the LED lighting turns on automatically. After the person leaves, the lighting turns off following a delay.
Q2: Can the mirror lighting still be controlled manually?
Yes. The XSL-SA3D-RT retains touch control functions for manual lighting operation and adjustment.
Q3: Does this controller support three-color LED lighting?
Yes. It supports compatible CCT LED strips, allowing users to select different white color temperatures and adjust brightness.
Q4: Can the controller display time and temperature?
Yes. The integrated digital display provides clock and ambient temperature information.
Q5: Can it control a mirror defogger?
Yes. The controller includes a defogger control function for use with a compatible mirror heating pad.
Q6: Does it support automatic lighting shutoff?
Yes. The controller supports motion-sensing delayed shutoff and a countdown timer function.
Q7: Is the controller suitable for 12V and 24V LED mirrors?
The product is specified for 12V–24V operation. Connected LED strips, power supplies, and other accessories must meet the controller's electrical requirements.
Upgrade Your LED Mirrors with Intelligent Motion-Sensing Technology.
The XSL-SA3D-RT offers mirror manufacturers a multifunctional controller that combines automatic lighting, touch adjustment, digital display, and defogger control.
It is suitable for smart bathroom mirror development, commercial mirror applications, and customized LED mirror projects.
Contact us to discuss product specifications, sample orders, system compatibility, and OEM/ODM requirements.
